QOU3301021 - Square D Bolt-On 240V 30A 3 pole circuit breaker 10kA@240V
Couldn't load pickup availability
Ask an expert
Description
QOU3301021

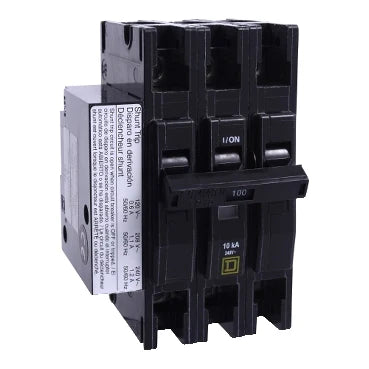

The Square D QOU3301021 is a Molded Case Circuit Breaker. This type QOU circuit breaker is a member of The QOU Series family. The QOU3301021 is a 3 pole, 240 Volt, 30 amp rated circuit breaker, with an AIC rating of 10kA@240V. The QOU3301021 is manufactured by Square D. The QOU3301021 uses a Bolt-On connection. Includes Thermal Magnetic protection
Specifications
- Part Number: QOU3301021
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QOU Series
- Type : QOU
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- GTIN : 00785901518594
- Dimensions : Height 4.05 in (102.87 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 1
- Certification : UL listed - IEC - CSA
- Wire Size : AWG 14...AWG 2 aluminum/copper
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating Bolt-On - 30 Amp - 3 Pole - 240 Volt
