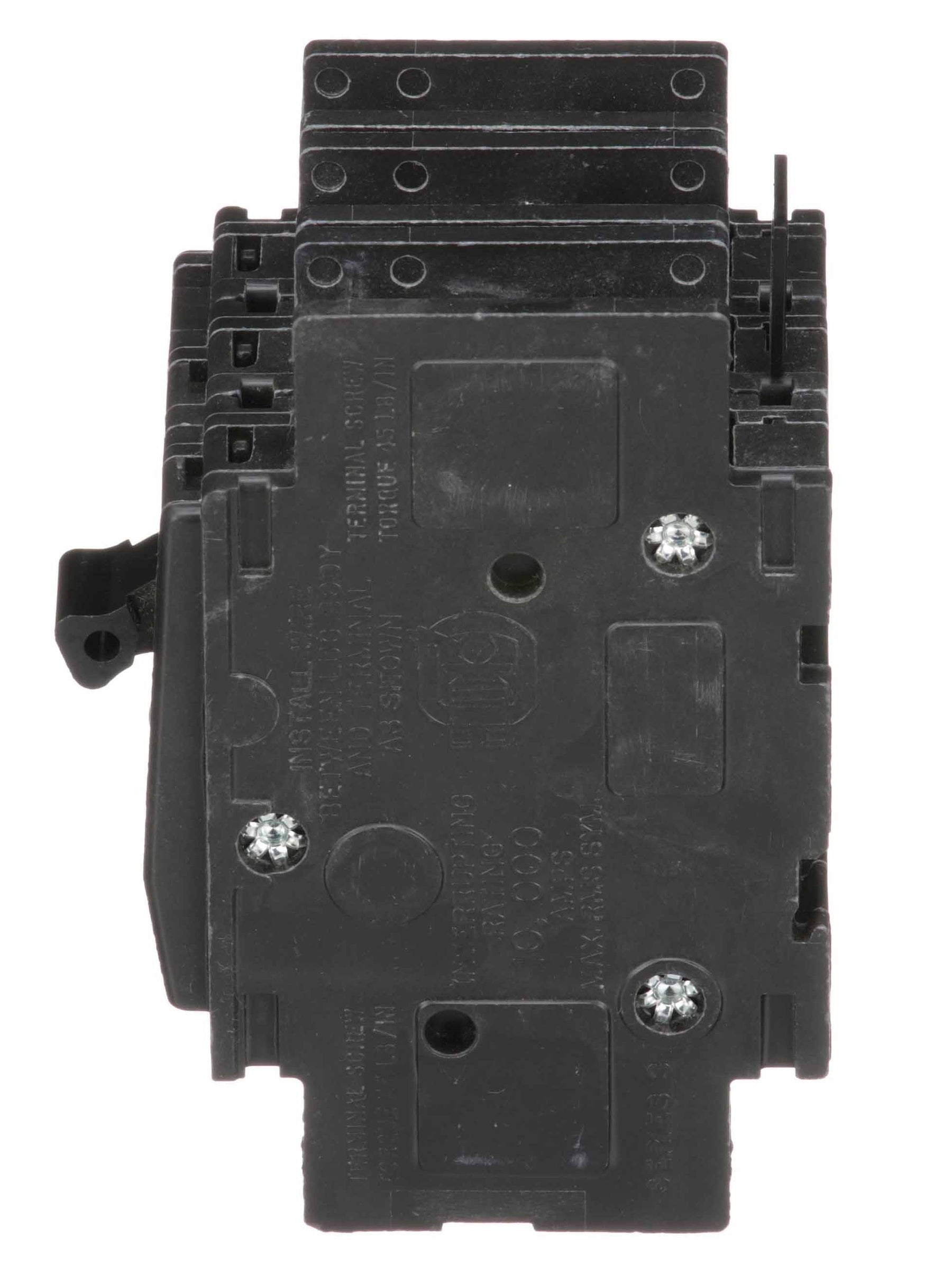

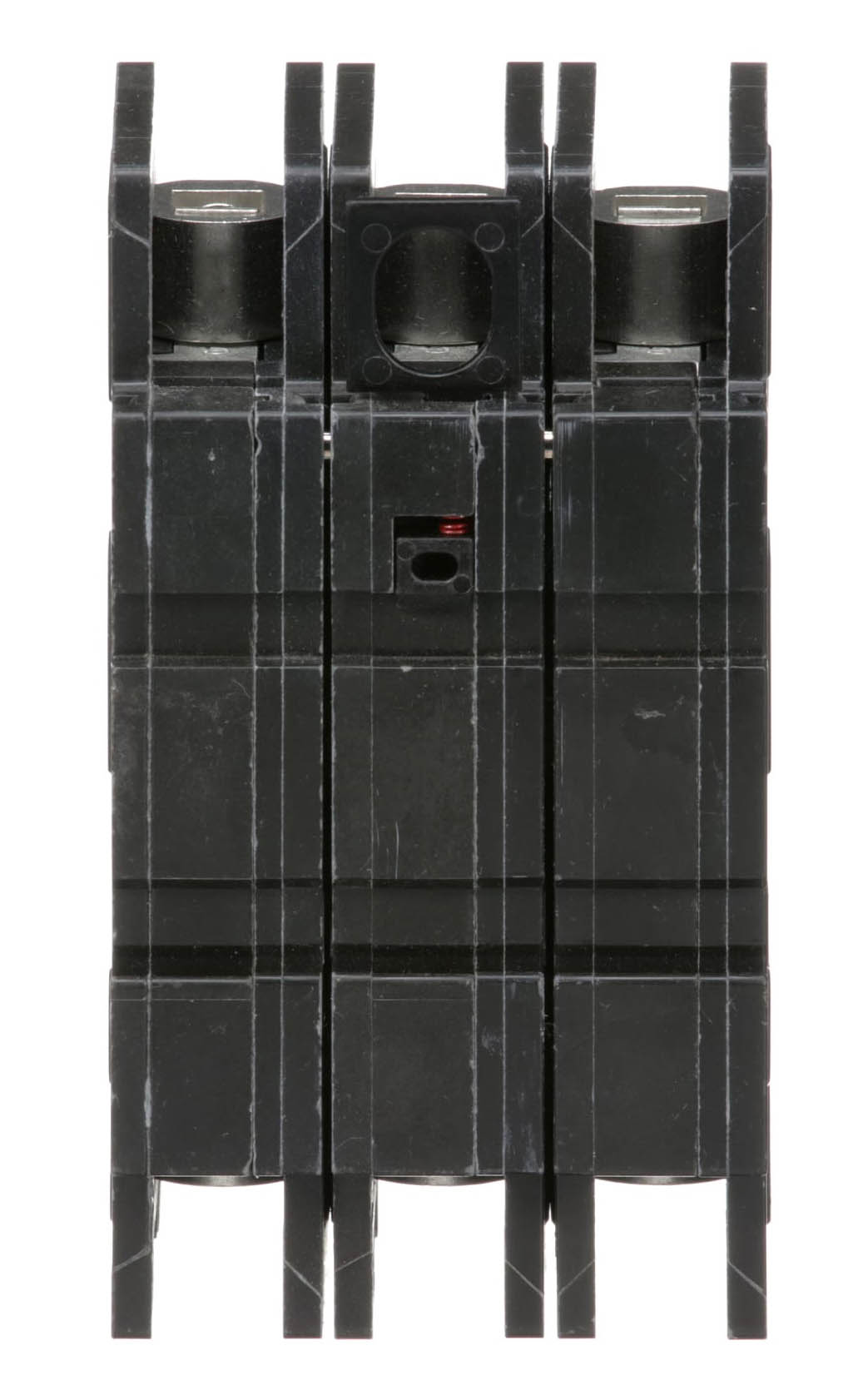

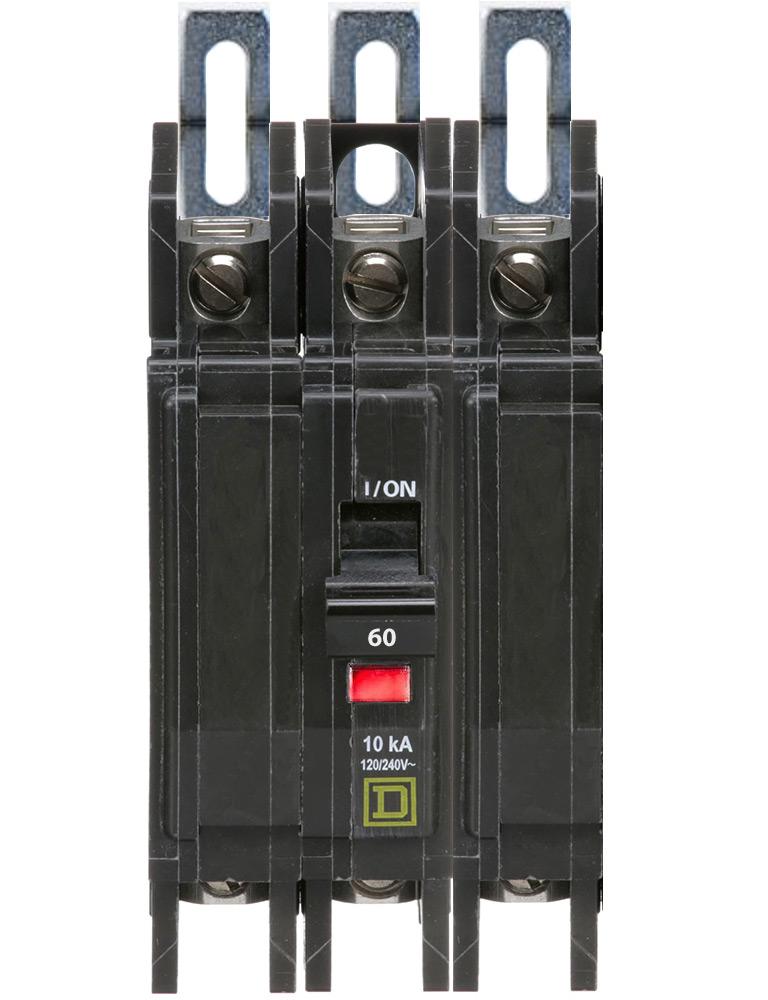

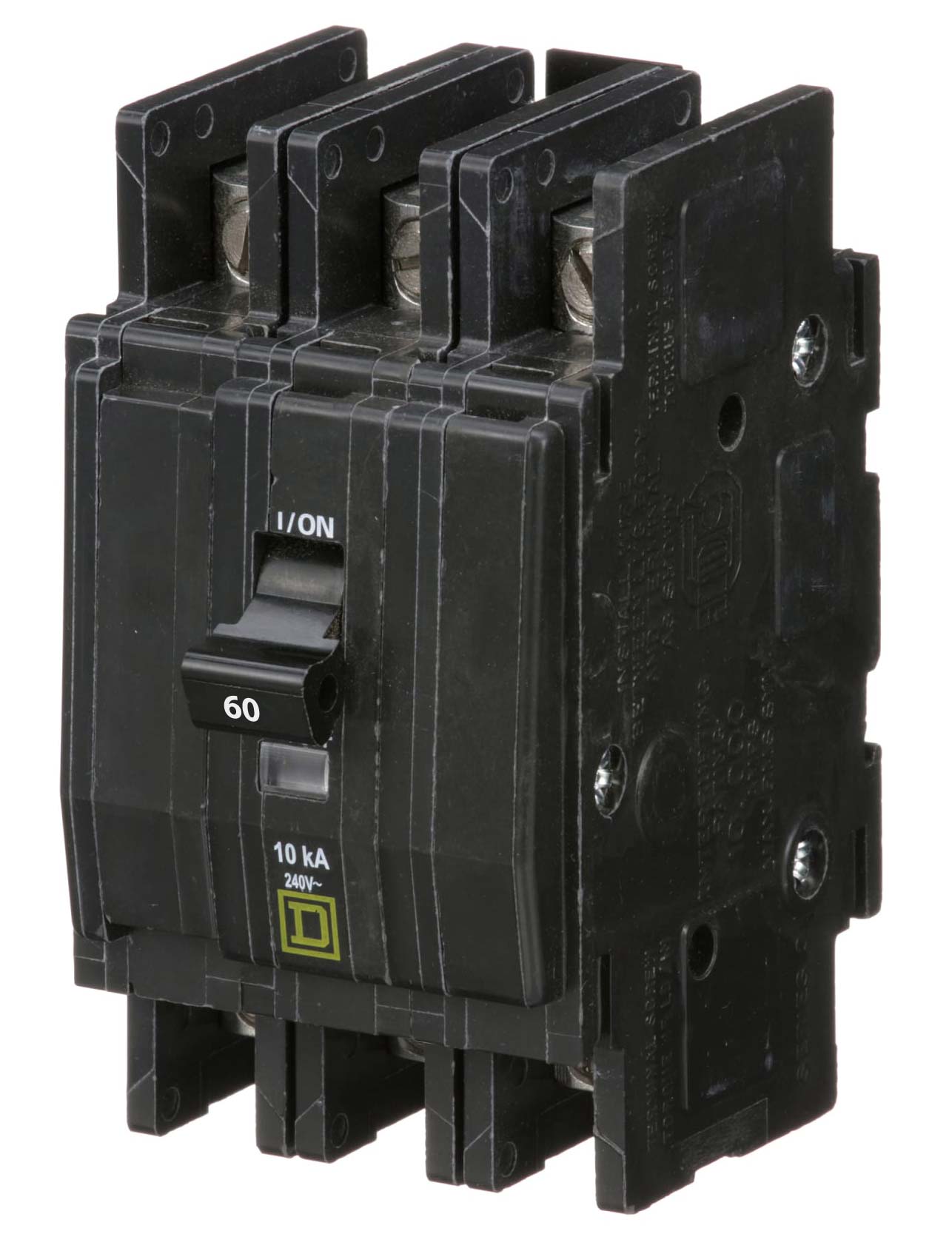

Square D QOU360 Circuit Breaker – 60A – 3-Pole – 120/240V – 10kA – Unit Mount – QOU Series

The Square D QOU360 is a 60A, 3-pole standard miniature circuit breaker from the QOU Series. It features thermal-magnetic protection and is rated for 120/240V AC systems. The breaker provides a 10kA interrupting rating on AC systems and a 5kA interrupting rating at 48V DC. It uses unit mounting with slotted box lugs and accommodates 14–2 AWG copper or aluminum conductors.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Miniature Circuit Breaker
• Product or Component Type: Miniature Circuit Breaker
• Catalog No.: QOU360
• Product Range: QOU
• Circuit Breaker Type: Standard
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• System Voltage: 120V AC, 120/240V AC, 240V AC, 48V DC
• Protection Type: Thermal-Magnetic
• Application Rating: HACR and Switching Duty
• Interrupting Rating: 10kA at 120/240V AC; 5kA at 48V DC
• Mounting Mode: Unit Mount
• Electrical Connection: Slotted Box Lugs, Line Side and Load Side
• Wire Size: AWG 14–2 Copper/Aluminum
• Dimensions (H × W × D): 4.05" × 2.25" × 2.95"
• Height: 4.05"
• Width: 2.25"
• Depth: 2.95"
• Brand: Square D
• Authenticity: Authentic Square D Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QOU360
• Catalog Number: QOU360
• Product Family: QOU Miniature Circuit Breakers
• Series: QOU
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Unit-Mount Miniature Circuit Breaker
• Breaker Configuration: 3-Pole, 60A
• Model: QOU360
• upc:785901060291

Compatibility:

Designed for compatible Square D QOU Series electrical distribution equipment that accepts unit-mount QOU circuit breakers. The QOU360 is configured as a 3-pole, 60A breaker for compatible AC and DC electrical distribution applications and accommodates 14–2 AWG copper or aluminum conductors using slotted box-lug connections.

Always verify the specific panel or equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, conductor size, mounting arrangement, and installation requirements before installation.

Certifications:

• CSA Certified
• IEC Certified
• UL Listed
• 60A Rated
• 3-Pole / 3-Phase
• 120/240V AC Rated
• 10kA AC Interrupting Rating
• 5kA @ 48V DC
• Thermal-Magnetic Protection
• HACR Rated
• Switching Duty Rated
• Unit Mount
• Genuine Square D / Schneider Electric Product
