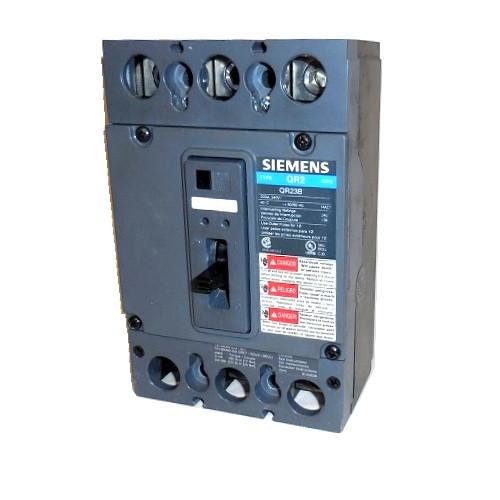

Siemens QR23B100L 100 Amp Molded Case Circuit Breaker – 3 Pole – 240V – 10 kA @ 240V – QR2 Series

The Siemens QR23B100L is a QR Series, Type QR2 molded case circuit breaker rated at 100A. It features a thermal-magnetic trip mechanism with non-interchangeable LI (Long-Time and Instantaneous) protection and bolt-on mounting for electrical distribution applications.

Specifications

• Brand: Siemens
• Series: QR
• Type: QR2
• Model Number: QR23B100L
• Rated Current: 100A
• Poles: 3 Pole
• Phase: 3 Phase
• Rated Voltage: 240V
• Interrupting Capacity: 10 kA @ 240V
• Interrupting Rating: Standard
• Mounting: Bolt-on
• Trip Unit: Non-interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Trip Technology: Thermal-Magnetic
• Terminals: Load-side lug terminals

Part Numbers & Identification

• Manufacturer: Siemens
• MPN: QR23B100L
• Product Series: QR
• Frame/Type: QR2
• Product Type: Molded Case Circuit Breaker

• UPC:804766136696

Compatibility

Designed for Siemens QR2-series applications requiring a 100A, three-pole, 240V molded case circuit breaker with 10 kA interrupting capacity, bolt-on mounting, LI trip protection, and load-side lug terminals.
