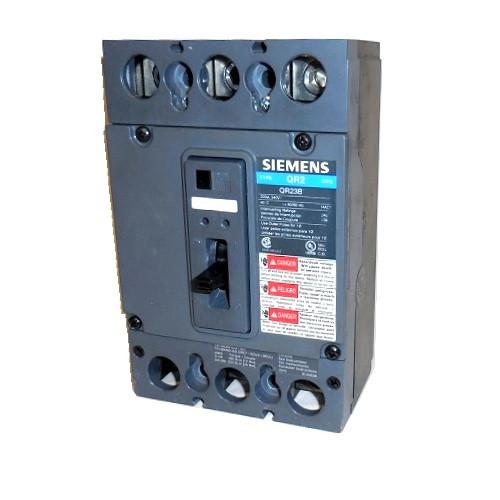

Siemens QR23B200L Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 240V – 10kA @ 240V – Bolt-On – QR Series

The Siemens QR23B200L is a 200A, 3-pole, 3-phase molded case circuit breaker from the Siemens / ITE QR Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and is designed for compatible electrical distribution applications.

The QR23B200L is rated for 240V and provides a 10kA interrupting rating at 240V. It uses a bolt-on connection and is identified as a Type QR2 circuit breaker. The breaker has a listed weight of 4.5 lbs.

Specifications:

• Manufacturer: Siemens / ITE
• Product Type: Molded Case Circuit Breaker
• Product Family: QR Series
• Series: QR
• Type: QR2
• Catalog No.: QR23B200L
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 10kA @ 240V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection Type: Bolt-On
• Mounting Type: Bolt-On
• Category: Molded Case / 3-Pole
• Weight: 4.5 lbs
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens / ITE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): QR23B200L
• Catalog Number: QR23B200L
• Model: QR23B200L
• Product Family: Siemens / ITE QR Circuit Breakers
• Series: QR
• Type: QR2
• Brand: Siemens / ITE
• Manufacturer: Siemens / ITE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Rated Voltage: 240V
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:804766136733

Compatibility:

Designed for use with compatible Siemens / ITE QR Series electrical distribution equipment that accepts QR Series bolt-on molded case circuit breakers. The QR23B200L provides 200A, 3-pole thermal-magnetic overcurrent protection for compatible 240V, 3-phase electrical distribution applications.

The breaker uses a bolt-on connection and features Long-Time and Instantaneous (LI) trip functions. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, mounting arrangement, terminal requirements, and installation specifications before installation.

Certifications:

• Siemens / ITE QR Series
• QR2 Type
• 200A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 10kA @ 240V Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• Bolt-On Connection
• Molded Case Circuit Breaker
