Siemens RD63F200 – 2000A 3-Pole 600V AC Molded Case Circuit Breaker Frame, Sentron RD Series, Thermal Magnetic, 50kAIC @ 480V, 25kAIC @ 600V
Couldn't load pickup availability
Ask an expert
Product Description

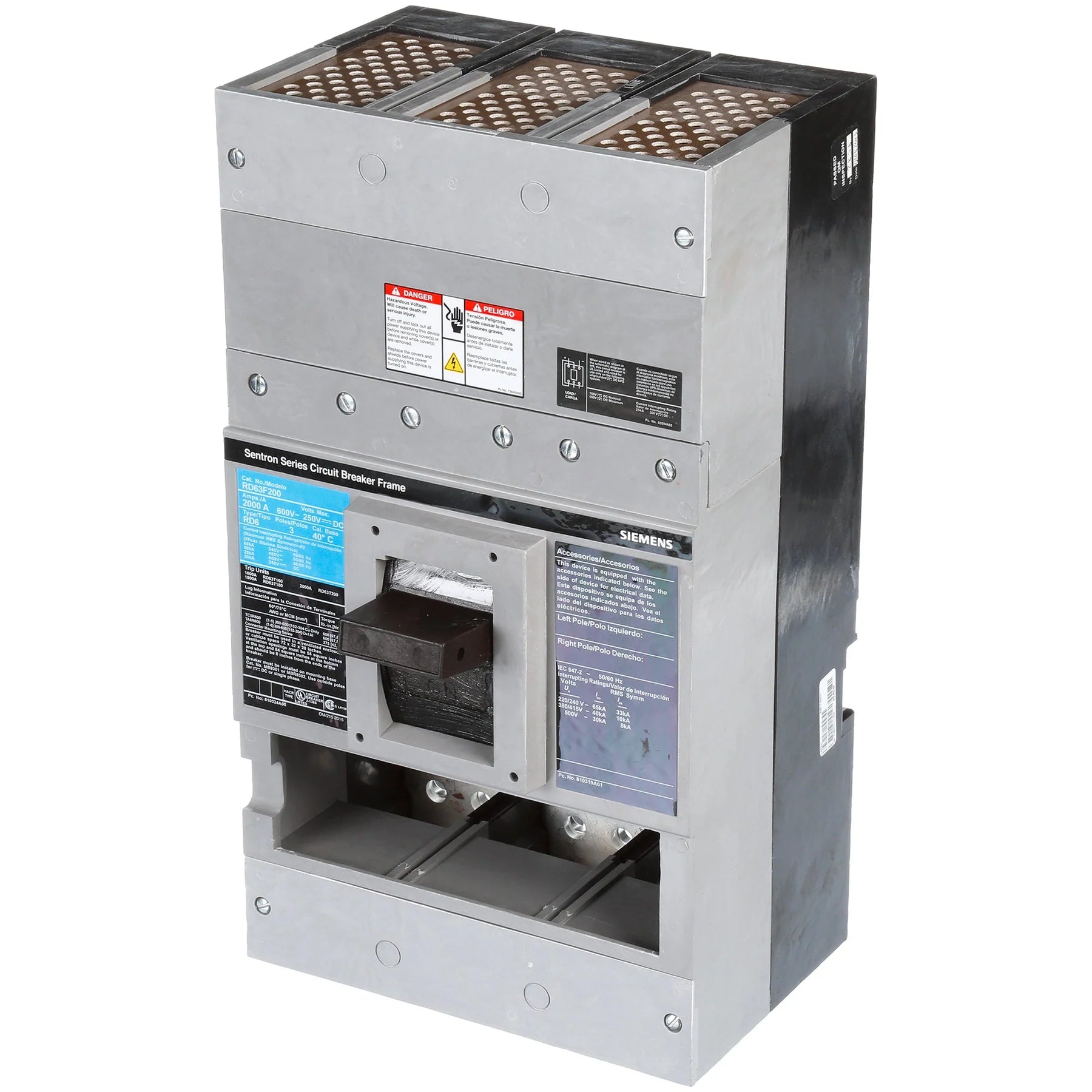

The Siemens RD63F200 is a 2000 Amp, 3-Pole molded case circuit breaker frame from the Sentron RD Series. Designed for heavy-duty commercial and industrial power distribution applications, this breaker frame provides reliable overcurrent protection and is commonly used in switchboards, switchgear, and large industrial distribution systems.
Key Features
- Catalog Number: RD63F200
- Manufacturer: Siemens
- Series: Sentron RD
- Amperage: 2000A
- Poles: 3-Pole
- Voltage Rating: 600VAC
- Thermal-Magnetic Trip
- RD6 Frame
- Bolt-On Mounting
- Line and Load Side Lug Connections
- UL Listed
Technical Specifications
- Manufacturer: Siemens
- Catalog Number: RD63F200
- Product Type: Molded Case Circuit Breaker Frame
- Series: Sentron RD
- Frame Size: RD6
- Amperage Rating: 2000A
- Number of Poles: 3
- Voltage Rating: 600VAC
- Frequency: 50/60 Hz
- Trip Type: Thermal-Magnetic
- Mounting Type: Bolt-On
Product Data
- Brand: Siemens
- Model: RD63F200
- Amperage: 2000A
- Poles: 3
- Voltage: 600VAC
- Series: Sentron RD
- Frame: RD6
- Interrupting Rating:
- 50kAIC @ 480VAC
- 25kAIC @ 600VAC
- Trip Unit: Thermal-Magnetic
- Mounting: Bolt-On
- UPC: 783643226234
- GTIN: 00783643226234
- Condition: New
- Type Circuit Breakers
- Vendor Siemens / ITE
- Brand Siemens
- Electrical Rating Bolt On - 2000 Amp - 3 Pole - 600 Volt
