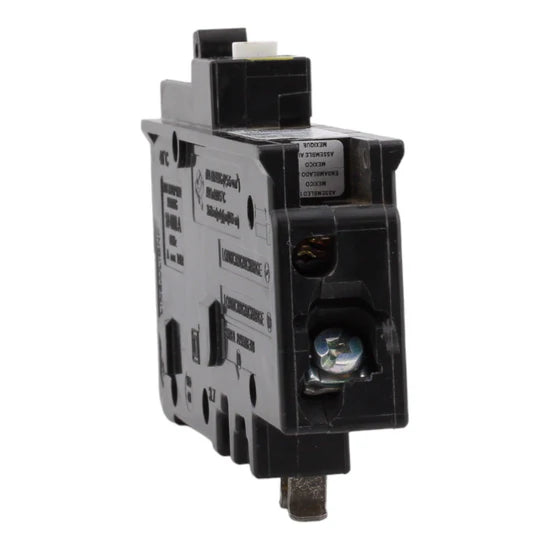

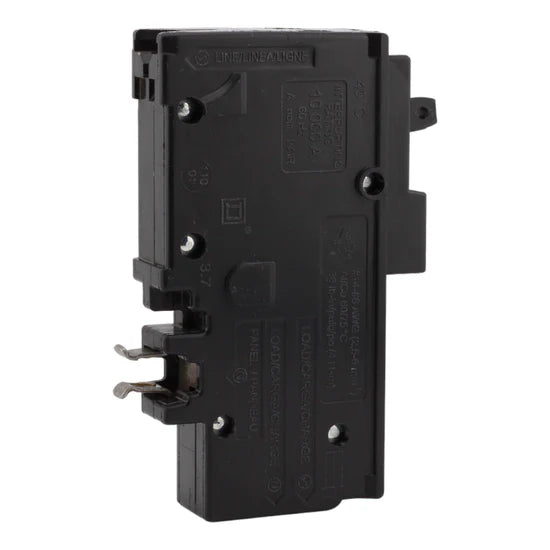

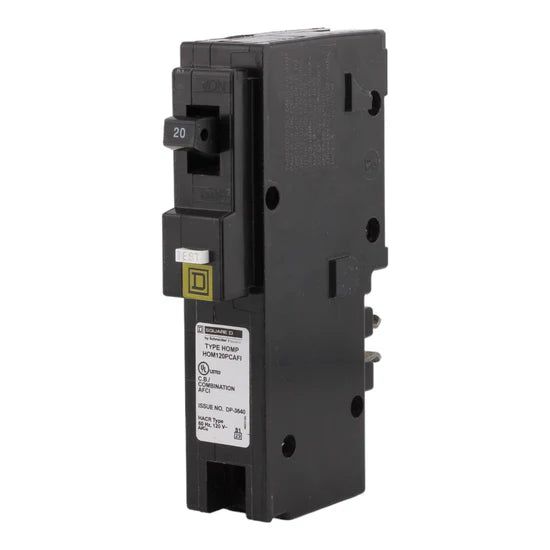

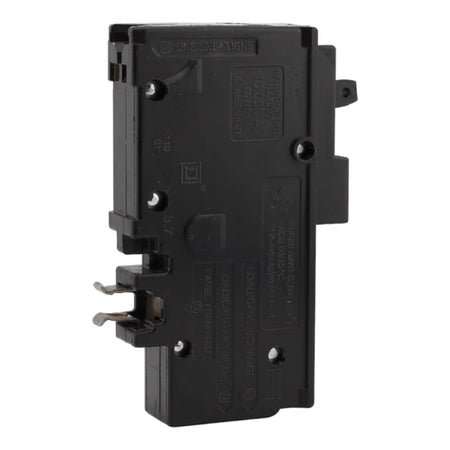

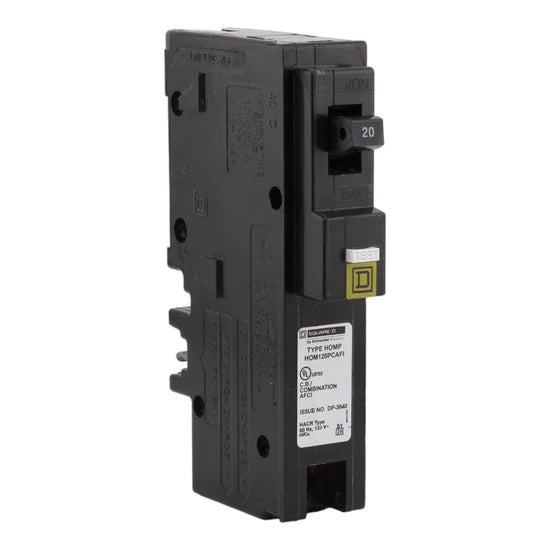

Square D Homeline HOM120PCAFI 20A 1P 120V AFCI Plug on Neutral Circuit Breaker

The Square D HOM120PCAFI is a reconditioned 20 amp, single-pole Combination Arc-Fault Circuit Interrupter (AFCI) designed for use in Square D Homeline load centers. Engineered to enhance residential electrical safety, this breaker helps detect and interrupt dangerous arc-fault conditions that could lead to electrical fires.

Featuring a plug-on neutral design, installation is faster and more efficient by reducing the need for additional neutral wiring. The integrated clamp terminal allows connection of up to two conductors, making it a practical solution for branch circuit applications in areas such as bedrooms, living rooms, and other residential spaces requiring AFCI protection.

Voltage and Ratings

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Interrupting Capacity: 10 kA
• Frequency: 50/60 Hz

Key Specifications

• Product Type: Miniature Circuit Breaker
• Breaker Type: Combination Arc-Fault (AFCI)
• Poles: 1-Pole
• Series: Homeline
• Mounting Type: Plug-In (Plug-on Neutral)
• Application: Residential branch circuit arc-fault protection
• Compatible Panels: Square D Homeline load centers

Technical Specifications

• Wire Size Range: AWG 14 to AWG 8 (Copper or Aluminum)
• Terminal Type: Plug-on neutral with clamp terminal (accepts 2 cables)
• Terminal Tightening Torque: 35.4 lb-in (4.0 N·m)
• Operating Mechanism: Thermal-magnetic with integrated combination AFCI protection
• Interrupt Rating: 10 kA
• Dimensions:
• Height: 3.13 in
• Width: 1.0 in
• Depth: 2.98 in

• Weight: 0.45 lbs

• Certifications: UL Listed

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: HOM120PCAFI
