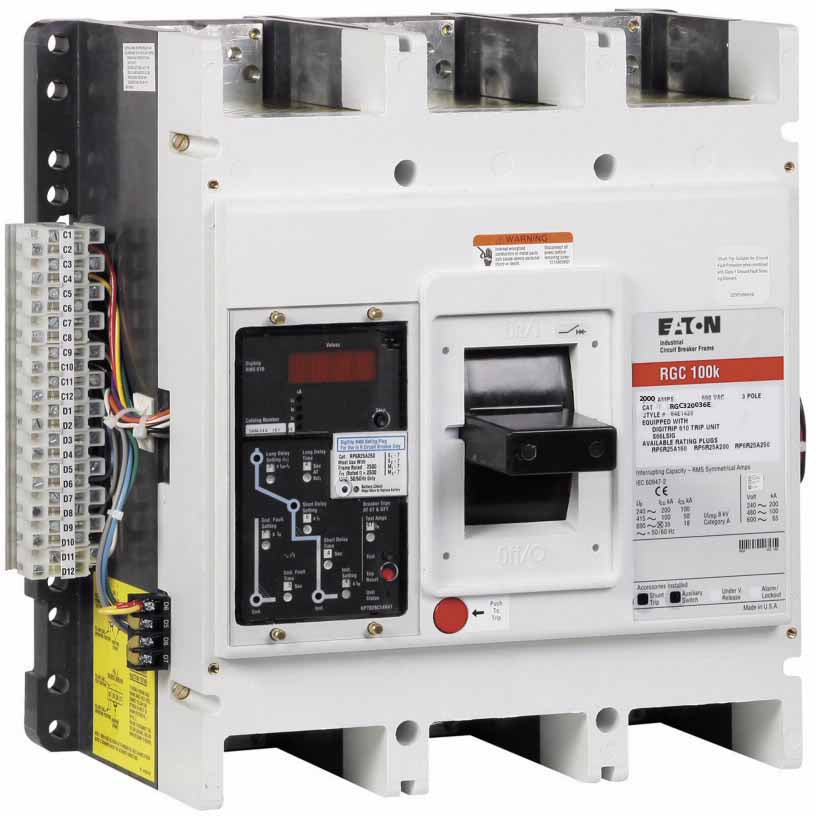

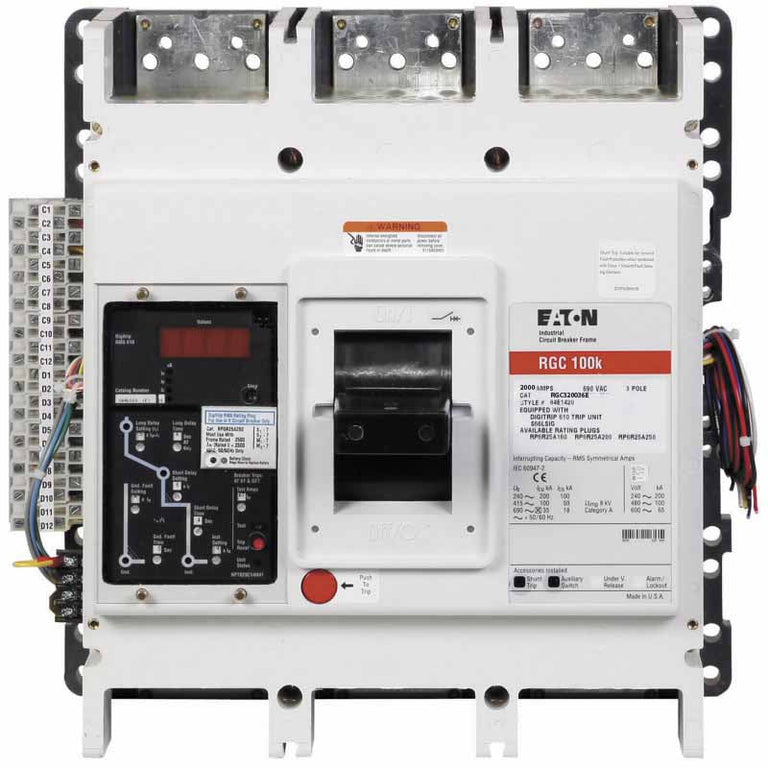

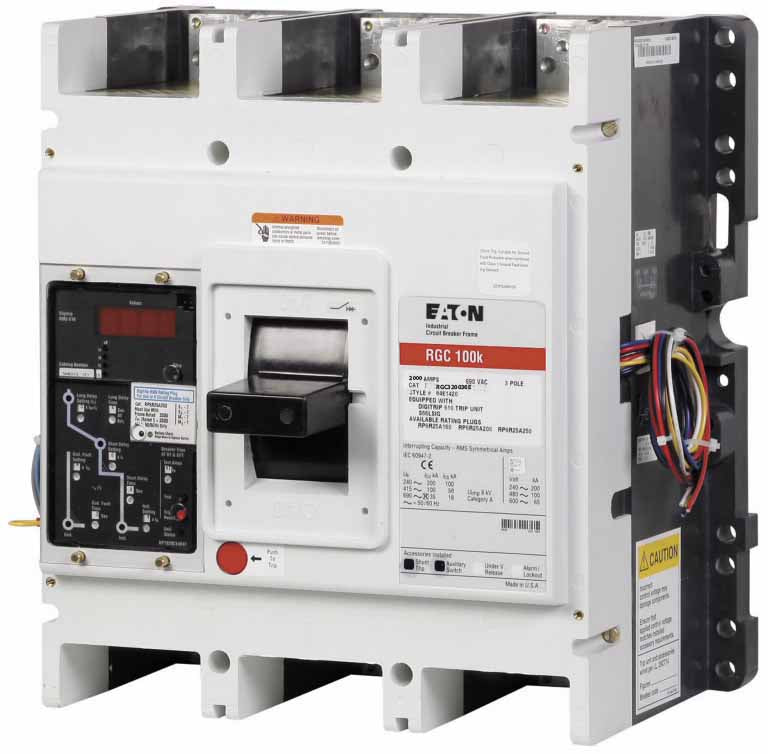

Eaton Series G RGC320036E 2000 Amp Molded Case Circuit Breaker – 3 Pole – 600V AC – 100 kA @ 480V – RG Frame

The Eaton RGC320036E is a Series G electronic molded case circuit breaker with an RG frame and Digitrip 310 RMS electronic trip unit. It provides LSIG protection for high-capacity electrical distribution applications.

Specifications

• Brand: Eaton
• Series: Series G
• MPN: RGC320036E
• Product Type: Electronic Molded Case Circuit Breaker
• Frame: RG
• Amperage Rating: 2000A
• Poles: 3
• Voltage Rating: 600V AC
• Interrupting Capacity: 200 kA at 240V AC; 100 kA at 480V AC
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous and Ground-Fault
• Protection: Electronic
• Connection: Line and load
• Conductor Connection: Imperial
• Frequency: 50/60 Hz
• Rated Current: 80% rated

Part Numbers & Identification

• Manufacturer Part Number: RGC320036E
• UPC:786685574264

Compatibility

Designed for compatible Eaton Series G RG-frame installations requiring a three-pole, 2000A electronic circuit breaker with Digitrip 310 RMS LSIG protection.
