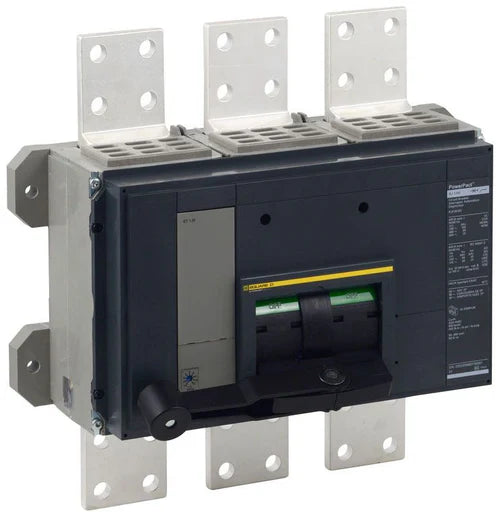

RGF36160CU63AE1 – Square D PowerPact R 3‑Pole 1600A 600V AC Molded Case Circuit Breaker, Thermal‑Magnetic, 35 kAIC @ 480V

Product Title

RGF36160CU63AE1 – Square D PowerPact R 3-Pole 1600A 600V AC Molded Case Circuit Breaker, Thermal-Magnetic, 35 kAIC @ 480V

Product Description

The Square D RGF36160CU63AE1 is a 3-pole, 1600 Amp, 600 V AC PowerPact R frame molded case circuit breaker engineered for industrial and commercial electrical distribution systems. It features a thermal-magnetic trip unit with Long-Time (LI) and Instantaneous protection for reliable performance under overload and short-circuit conditions.

This breaker provides high interrupting capacity at multiple voltages: 65 kAIC @ 240 V AC, 35 kAIC @ 480 V AC,and 18 kAIC @ 600 V AC, ensuring robust protection in demanding applications. The RGF36160CU63AE1 is UL listed and CSA certified, constructed to meet industry standards for dependable circuit protection.

Key Features

• Poles: 3

• Amperage: 1600 A

• Voltage: 600 V AC (also suitable for 250 V DC)

• Type: PowerPact R Molded Case Circuit Breaker

• Trip Unit: Thermal-magnetic with Long-Time (LI) and Instantaneous functions

• High interrupting capacity: 65 kAIC @ 240 V AC, 35 kAIC @ 480 V AC, 18 kAIC @ 600 V AC

• Bolt-on mounting for secure panel installation

• Durable molded case construction for industrial use

• UL and CSA listed for commercial and industrial electrical protection

Technical Specifications

• Manufacturer: Square D (Schneider Electric)

• Catalog Number: RGF36160CU63AE1

• Frame: R Frame (PowerPact R)

• Phase: 3-phase

• Trip Type: Thermal-Magnetic

• Mounting Type: Bolt-on

• Frequency Rating: 50/60 Hz

• Operating Temperature: Standard industrial range

Product Data

• UPC / GTIN: 78590198275

• Provides reliable overload and short-circuit protection in industrial and commercial panels

• Compatible with PowerPact switchboards and distribution equipment

• Built to meet UL 489, CSA C22.2, and IEC 60947‑2 safety standards
