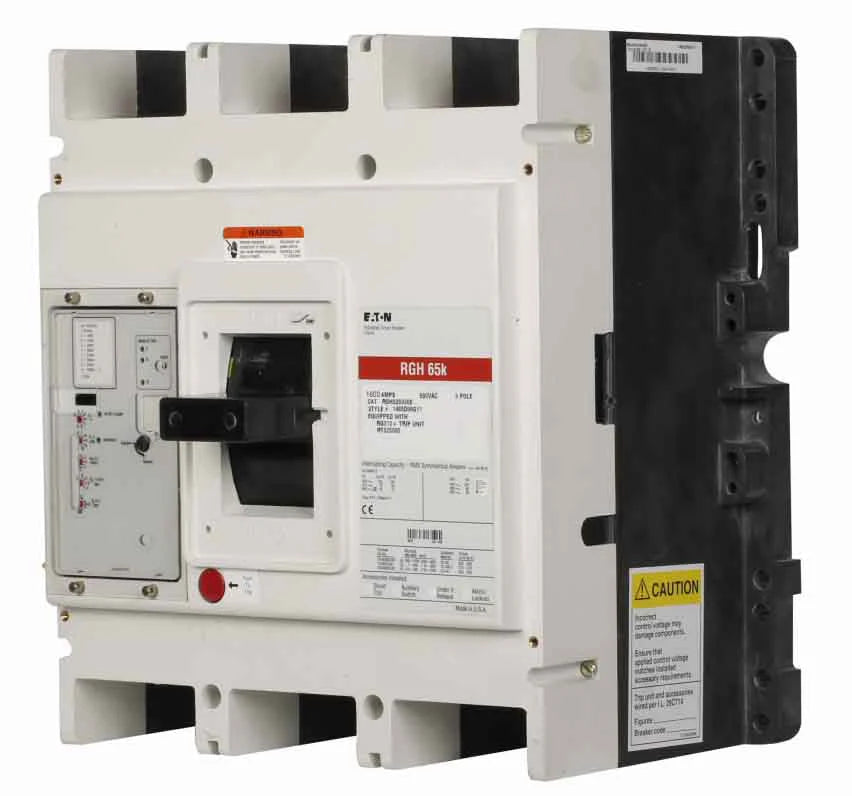

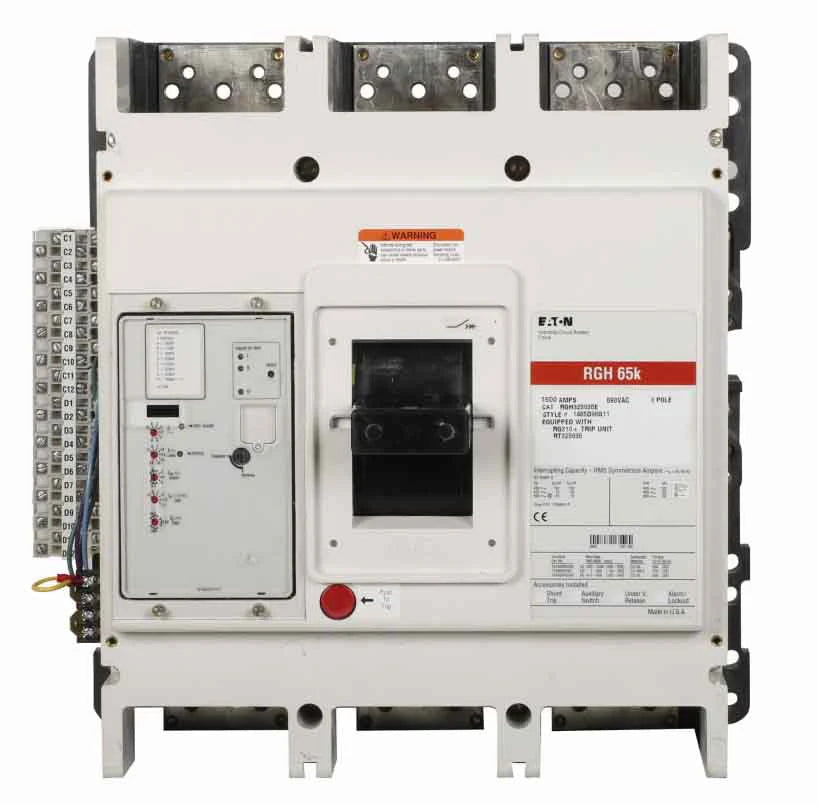

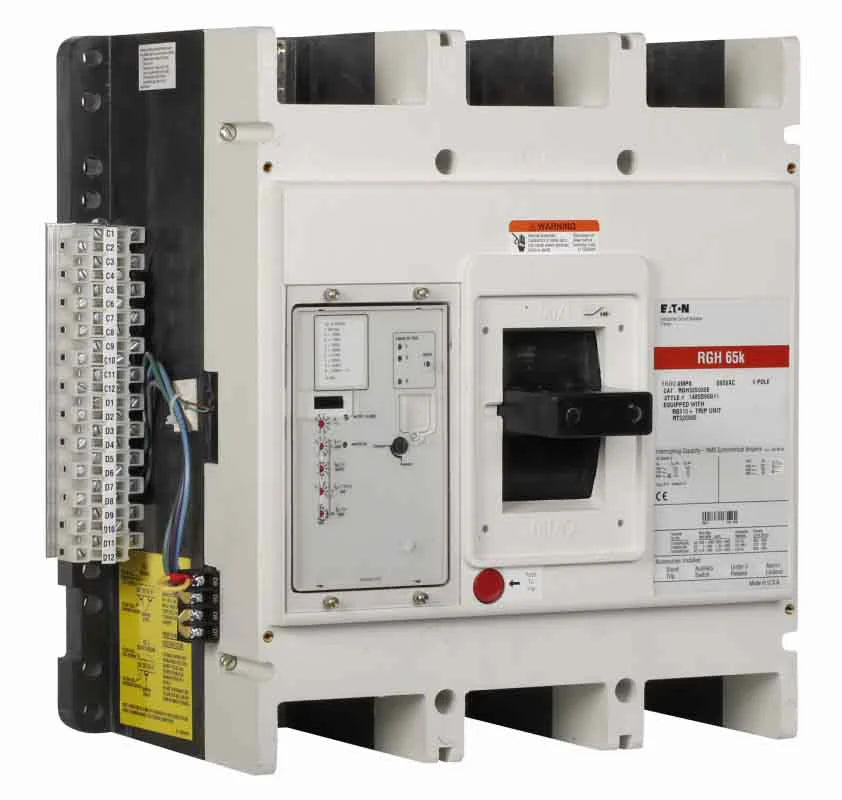

Eaton RGH316033E Molded Case Circuit Breaker – 1600A – 3-Pole / 3-Phase – 600V AC – 65kAIC @ 480V – Bolt-On – Series G RG Frame

The Cutler-Hammer / Eaton RGH316033E is a 1600A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series G RG Frame. It is designed for heavy commercial and industrial electrical distribution applications and features an electronic trip unit.

The RGH316033E is rated for 600V AC and 250V DC and provides high interrupting capacity at multiple AC voltage levels, including 125kAIC at 240V, 65kAIC at 480V, and 50kAIC at 600V. It features Long-Time, Short-Time, and Instantaneous (LSI) protection functions, bolt-on mounting, and molded case construction.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Frame: RG Frame
• Catalog No.: RGH316033E
• Current Rating: 1600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Frequency: 50/60Hz
• Trip Type: Electronic
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Interrupting Rating: 125kAIC @ 240V AC; 65kAIC @ 480V AC; 50kAIC @ 600V AC
• Interrupting Capacity: High
• Mounting Type: Bolt-On
• Construction: Molded Case
• Application: Commercial and Industrial Electrical Distribution
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): RGH316033E
• Catalog Number: RGH316033E
• Model: RGH316033E
• Product Family: Eaton / Cutler-Hammer Series G Circuit Breakers
• Series: Series G
• Frame: RG Frame
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 1600A
• Trip Configuration: Electronic LSI
• UPC:786685574097

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G RG Frame switchboards, panelboards, and electrical distribution equipment that accepts the RGH316033E configuration. The breaker provides 1600A, 3-pole electronic protection for compatible 600V AC electrical distribution applications.

The RGH316033E uses bolt-on mounting and features electronic Long-Time, Short-Time, and Instantaneous protection. The supplied information also identifies compatibility with RG frame switchboards and distribution equipment. Always verify the specific equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, mounting arrangement, and installation specifications before installation.

Certifications:

• UL Listed
• UL 489
• Eaton / Cutler-Hammer Series G
• RG Frame
• 1600A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 125kAIC @ 240V AC Interrupting Rating
• 65kAIC @ 480V AC Interrupting Rating
• 50kAIC @ 600V AC Interrupting Rating
• High Interrupting Capacity
• Electronic Trip
• Long-Time, Short-Time, and Instantaneous (LSI) Protection
• Bolt-On Mounting
• Molded Case Construction
