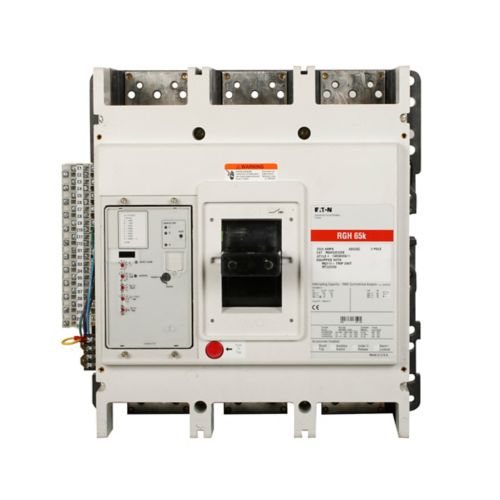

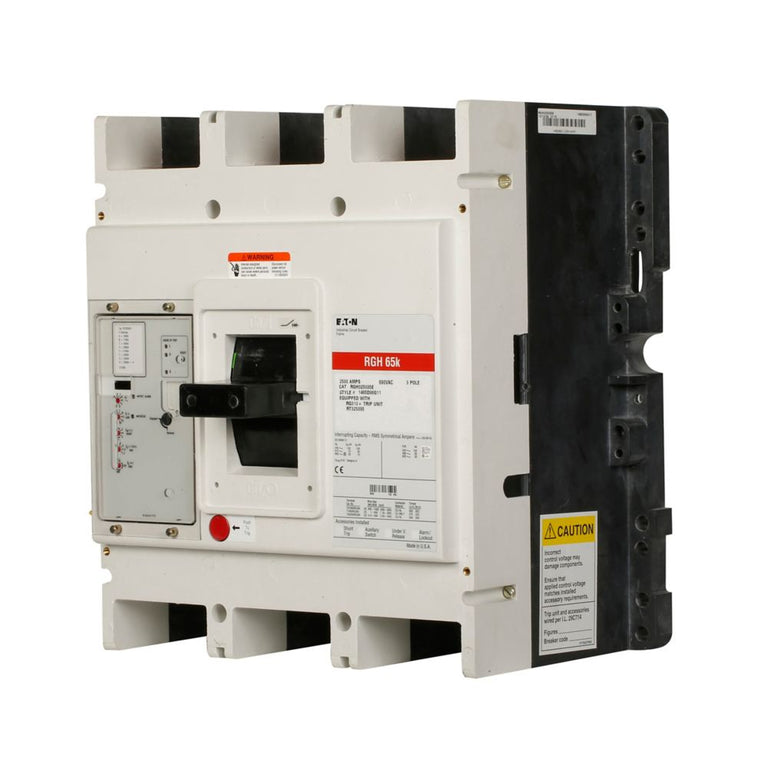

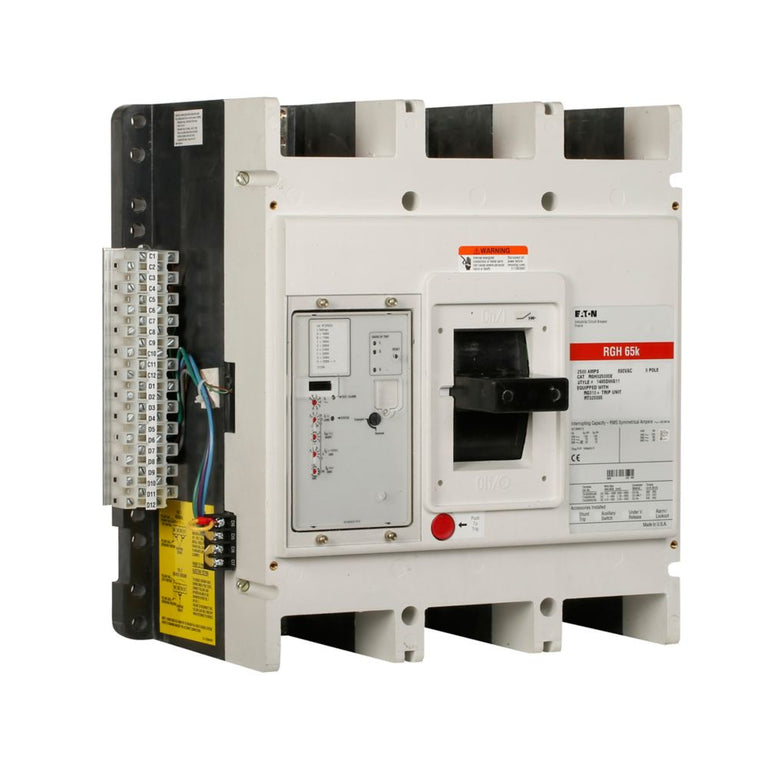

Eaton RGH316035E 1600 Amp Molded Case Circuit Breaker – 3 Pole – 600 V AC – 65 kAIC@480 V – Electronic LSG Trip – Series G

The Cutler-Hammer / Eaton RGH316035E is a 1600 Amp, 3-pole molded case circuit breaker from the Eaton Series G, RG-frame product range. Designed for commercial and industrial electrical distribution, it features an electronic LSG trip unit providing Long-Time, Short-Time, and Ground Fault protection. The breaker is rated for 600 V AC and offers high interrupting capacity at multiple system voltages. It features bolt-on mounting and is suitable for reverse-fed applications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series G
• Frame: RG Frame
• Catalog Number / MPN: RGH316035E
• Primary Rating: 1600 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V AC
• DC Voltage: 250 V DC
• Interrupting Rating: 125 kAIC @ 240 V AC; 65 kAIC @ 480 V AC
• Trip Type: Electronic
• Trip Functions: LSG – Long-Time, Short-Time, and Ground Fault
• Connection / Mounting: Bolt-On
• Frequency: 50/60 Hz
• Application: Suitable for Reverse-Fed Installations

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: RGH316035E
• Series: Series G
• Frame: RG Frame
• Current Rating: 1600 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Electronic LSG
• UPC / GTIN: 786685574677

Compatibility

The Eaton RGH316035E is intended for compatible Eaton Series G RG-frame switchboards and industrial electrical distribution equipment.

Certifications

• UL Listed
• UL 489
• IEC safety standards (as stated in the supplied product information)
