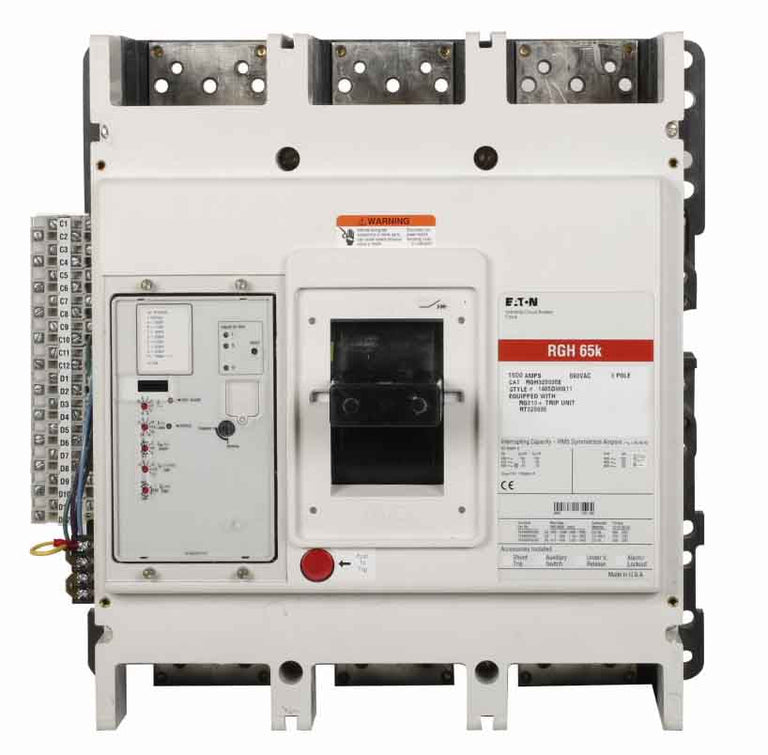

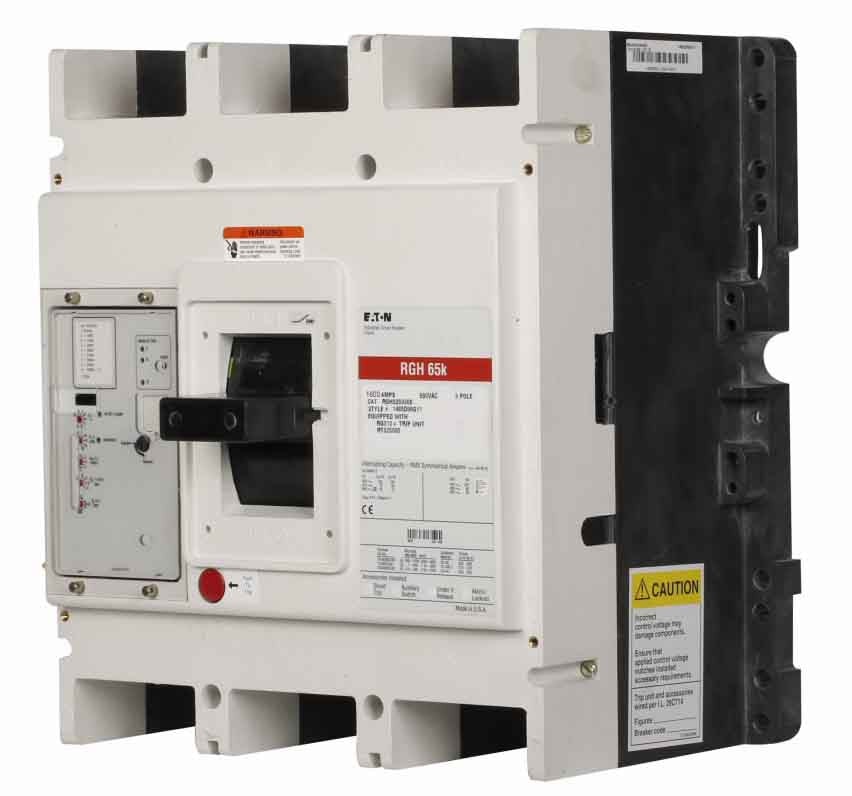

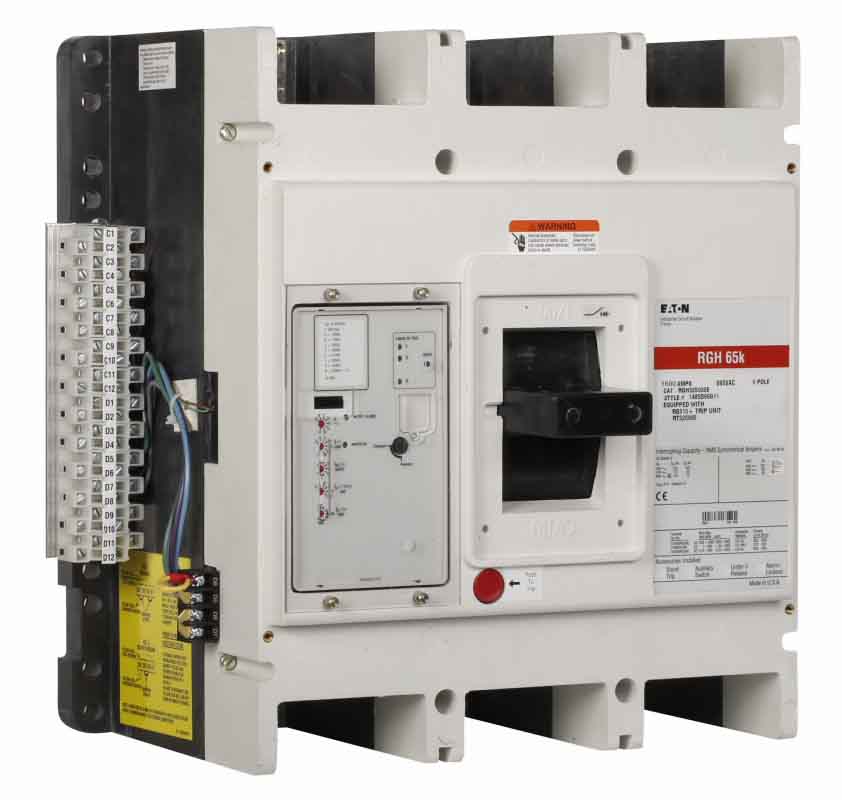

RGH316036E - Cutler Hammer 1600A 600V 3-Pole RG-Frame Series G Circuit Breaker LSIG Trip

Product Description

The Cutler Hammer RGH316036E is a 3‑pole, 1600 Amp, 600 V AC RG frame Series G molded case circuit breaker designed for heavy commercial and industrial electrical distribution systems. This breaker features an electronic LSIG trip unit with Long‑Time (L), Short‑Time (S), Instantaneous (I), and Ground Fault protection functions to provide precise and dependable fault response under overload and short‑circuit conditions.

It provides high interrupting capacity at key voltages: 65 kAIC @ 480 V AC, 125 kAIC @ 240 V AC, and 50 kAIC @ 600 V AC, ensuring safe interruption of high fault currents in demanding environments. The RGH316036E is UL listed and suitable for reverse‑fed installations requiring robust circuit protection.

Key Features

• Poles: 3

• Amperage: 1600 A

• Voltage: 600 V AC (also suitable for up to 250 V DC)

• Type: RG Frame Series G Molded Case Circuit Breaker

• Electronic LSIG trip unit with Long‑Time (L), Short‑Time (S), Instantaneous (I), and Ground Fault protection

• High interrupting capacity: 65 kAIC @ 480 V AC, 125 kAIC @ 240 V AC, 50 kAIC @ 600 V AC

• Bolt‑on mounting for secure panel installation

• Rugged molded case construction for industrial use

• UL listed for commercial and industrial electrical protection

Technical Specifications

• Manufacturer: Cutler Hammer / Eaton

• Catalog Number: RGH316036E

• Frame: RG Frame (Series G)

• Phase: 3‑phase

• Trip Type: Electronic LSIG

• Mounting Type: Bolt‑on

• Frequency Rating: 50/60 Hz

• Operating Temperature: Industrial standard range

Product Data

• UPC / GTIN: 786685574705

• Provides reliable overload and short‑circuit protection in industrial and commercial panels

• Compatible with PowerPact and RG frame switchboards and distribution equipment

• Built to meet UL 489 and IEC 60947‑2 safety standards
