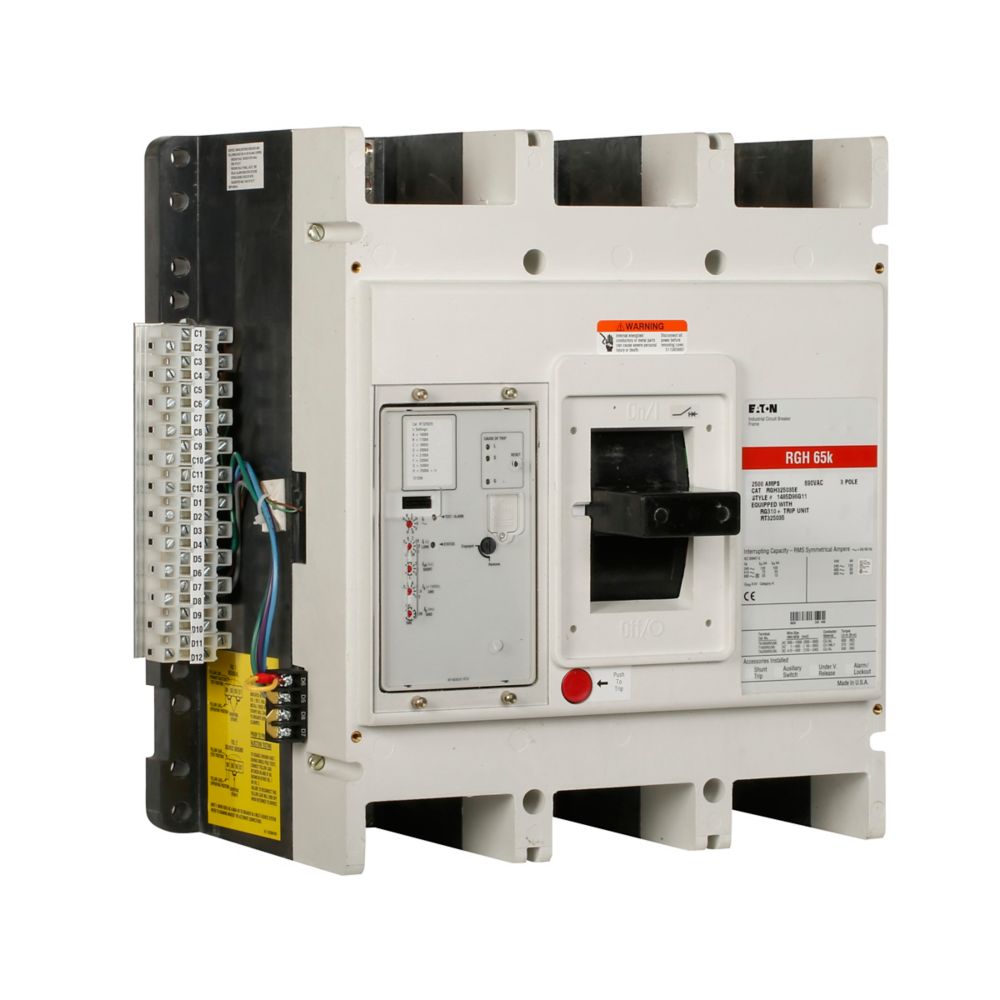

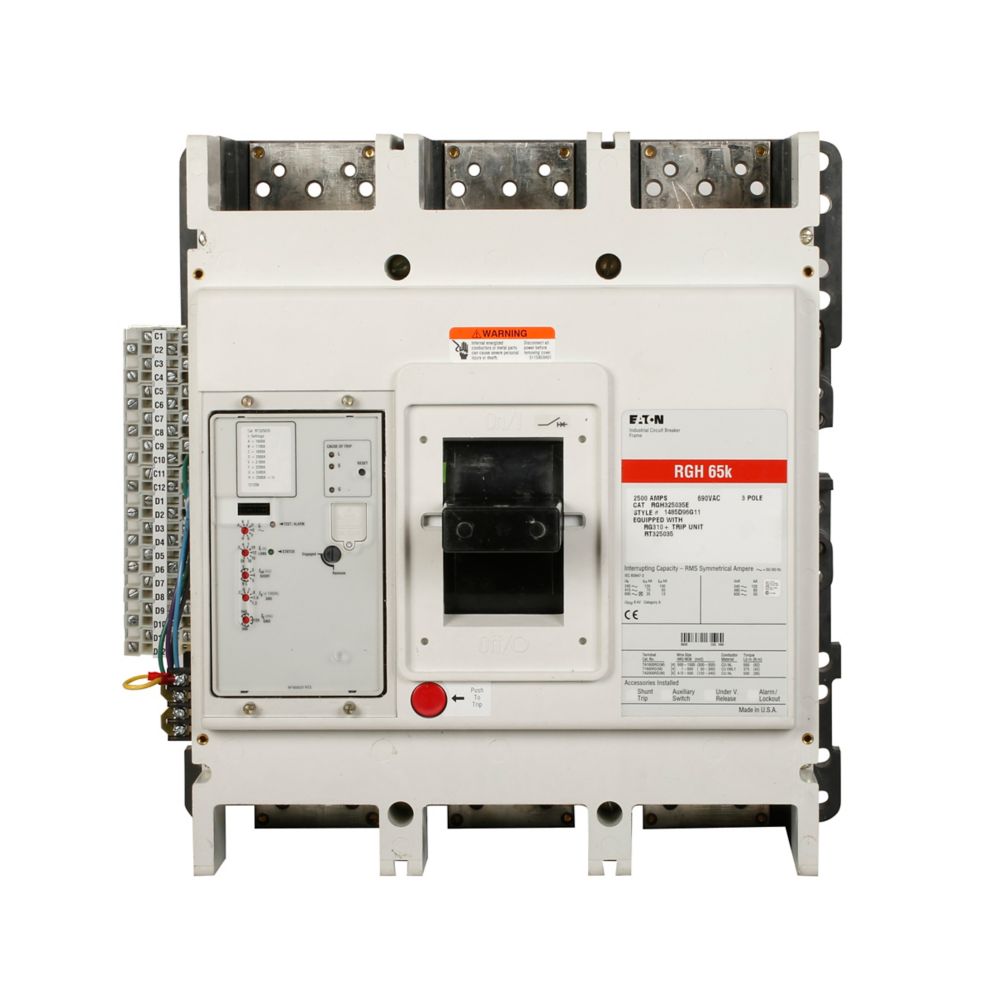

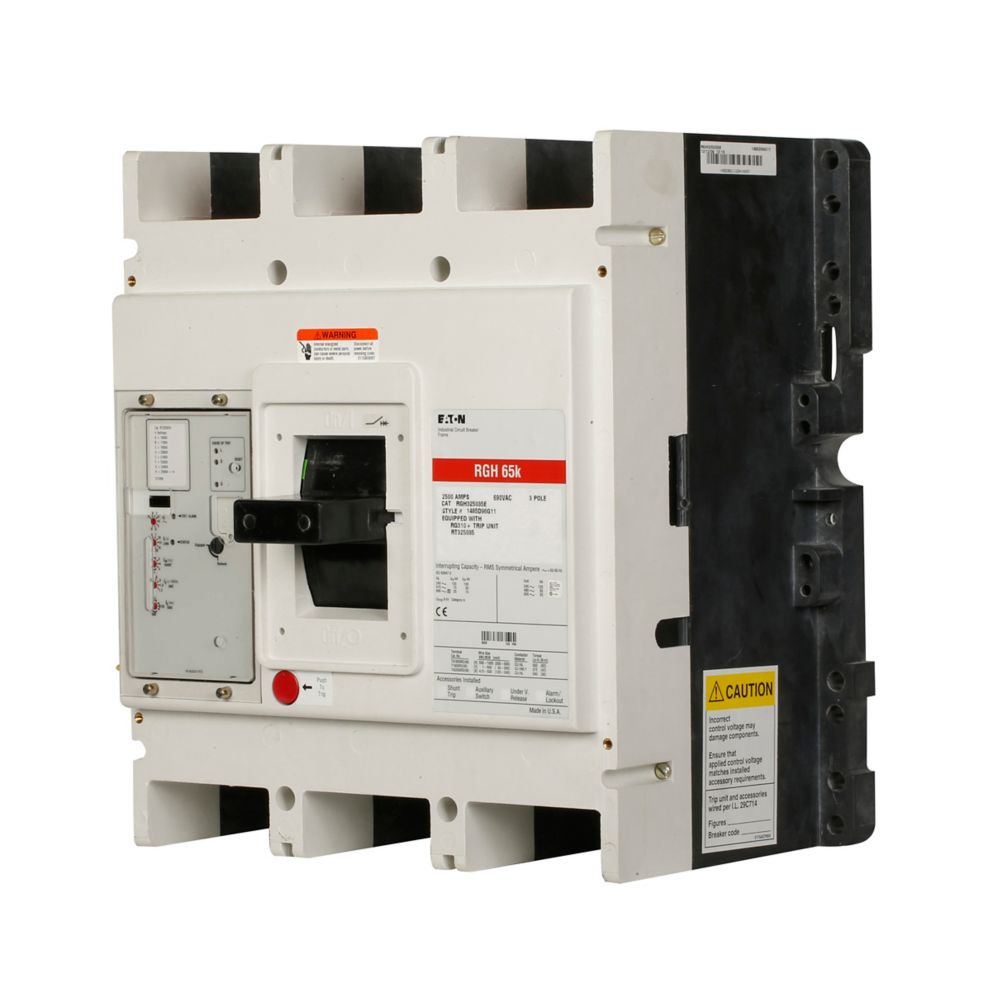

RGH320032E – Cutler Hammer / Eaton Series G RG Frame 3‑Pole 2000A 600V AC Molded Case Circuit Breaker, Electronic LSI Trip, 65 kAIC @ 480V

Product Description

The Cutler Hammer RGH320032E is a 3‑pole, 2000 Amp, 600 V AC RG frame Series G molded case circuit breaker engineered for heavy commercial and industrial electrical distribution systems. This breaker features an electronic LSI trip unit with Long‑Time (L), Short‑Time (S), and Instantaneous (I) protection functions to provide precise and dependable fault response under overload and short‑circuit conditions.

It provides high interrupting capacity at key voltages: 65 kAIC @ 480 V AC, 125 kAIC @ 240 V AC, and 50 kAIC @ 600 V AC, ensuring safe interruption of high fault currents in demanding environments. The RGH320032E is UL listed and suitable for reverse‑fed installations requiring robust circuit protection.

Key Features

• Poles: 3

• Amperage: 2000 A

• Voltage: 600 V AC (also suitable for up to 250 V DC)

• Type: RG Frame Series G Molded Case Circuit Breaker

• Electronic LSI trip unit with Long‑Time (L), Short‑Time (S), and Instantaneous (I) protection

• High interrupting capacity: 65 kAIC @ 480 V AC, 125 kAIC @ 240 V AC, 50 kAIC @ 600 V AC

• Bolt‑on mounting for secure panel installation

• Rugged molded case construction for industrial use

• UL listed for commercial and industrial electrical protection

Technical Specifications

• Manufacturer: Cutler Hammer / Eaton

• Catalog Number: RGH320032E

• Frame: RG Frame (Series G)

• Phase: 3‑phase

• Trip Type: Electronic LSI

• Mounting Type: Bolt‑on

• Frequency Rating: 50/60 Hz

• Operating Temperature: Industrial standard range

Product Data

• UPC / GTIN: 786685574737

• Provides reliable overload and short‑circuit protection in industrial and commercial panels

• Compatible with PowerPact and RG frame switchboards and distribution equipment

• Built to meet UL 489 and IEC 60947‑2 safety standards
