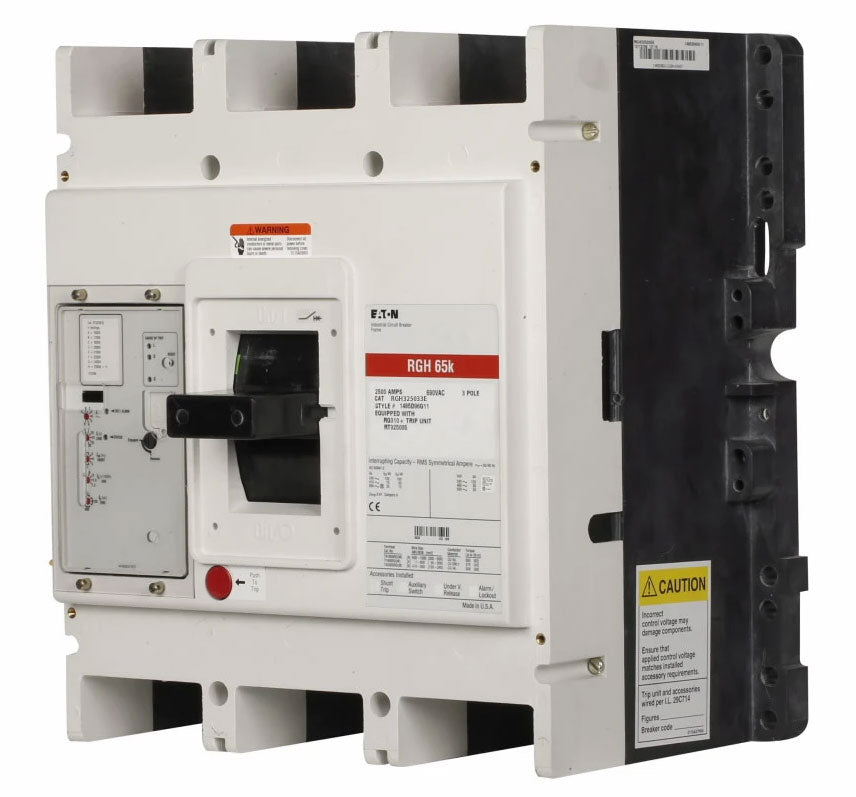

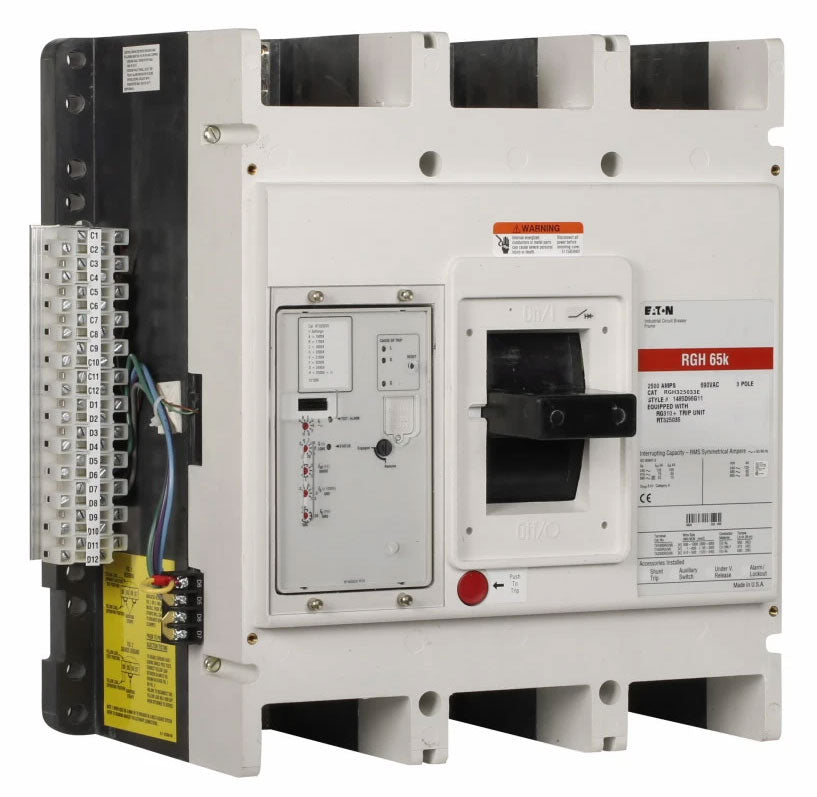

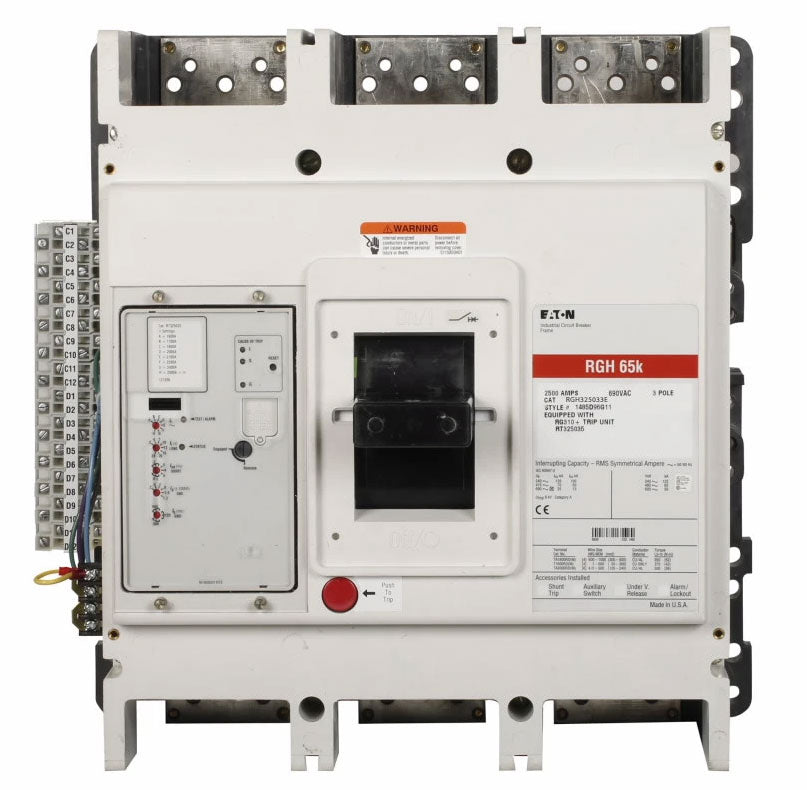

RGH325033E – Cutler Hammer / Eaton Series G RG Frame 3‑Pole 2500A 600V AC Molded Case Circuit Breaker, Electronic LS Trip, 65 kAIC @ 480V

Product Description

The Cutler Hammer RGH325033E is a 3‑pole, 2500 Amp, 600 V AC RG frame Series G molded case circuit breaker designed for heavy industrial and commercial electrical distribution systems. This breaker features an electronic LS trip unit with Long‑Time (L), Short‑Time (S), and Instantaneous (I) protection for precise and dependable fault response under overload and short‑circuit conditions.

It provides high interrupting capacity at multiple voltages: 65 kAIC @ 480 V AC, 125 kAIC @ 240 V AC, and 50 kAIC @ 600 V AC, delivering robust protection in demanding power distribution applications.

Key Features

• Poles: 3

• Amperage: 2500 A

• Voltage: 600 V AC (also suitable for up to 250 V DC)

• Type: RG Frame Series G Molded Case Circuit Breaker

• Electronic LS trip unit with Long‑Time (L), Short‑Time (S), and Instantaneous (I) protection

• High interrupting capacity: 65 kAIC @ 480 V AC, 125 kAIC @ 240 V AC, 50 kAIC @ 600 V AC

• Bolt‑on mounting for secure installation

• Rugged molded case construction for industrial use

• UL listed for commercial and industrial electrical protection

• No ground fault protection (GFI) included

Technical Specifications

• Manufacturer: Cutler Hammer / Eaton

• Catalog Number: RGH325033E

• Frame: RG Frame (Series G)

• Phase: 3‑phase

• Trip Type: Electronic LS

• Mounting Type: Bolt‑on

• Frequency Rating: 50/60 Hz

• Operating Temperature: Standard industrial range

Product Data

• UPC / GTIN: 786685574615

• Provides reliable overload and short‑circuit protection for industrial and commercial panels

• Compatible with PowerPact and RG frame switchboards and distribution equipment

• Built to meet UL 489 and IEC 60947‑2 safety standards
