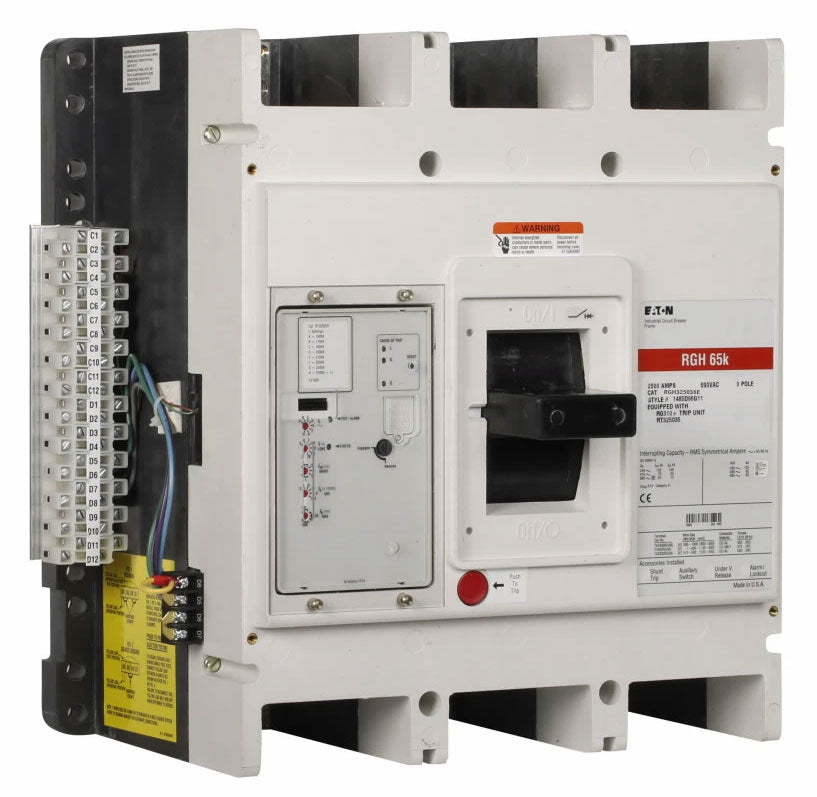

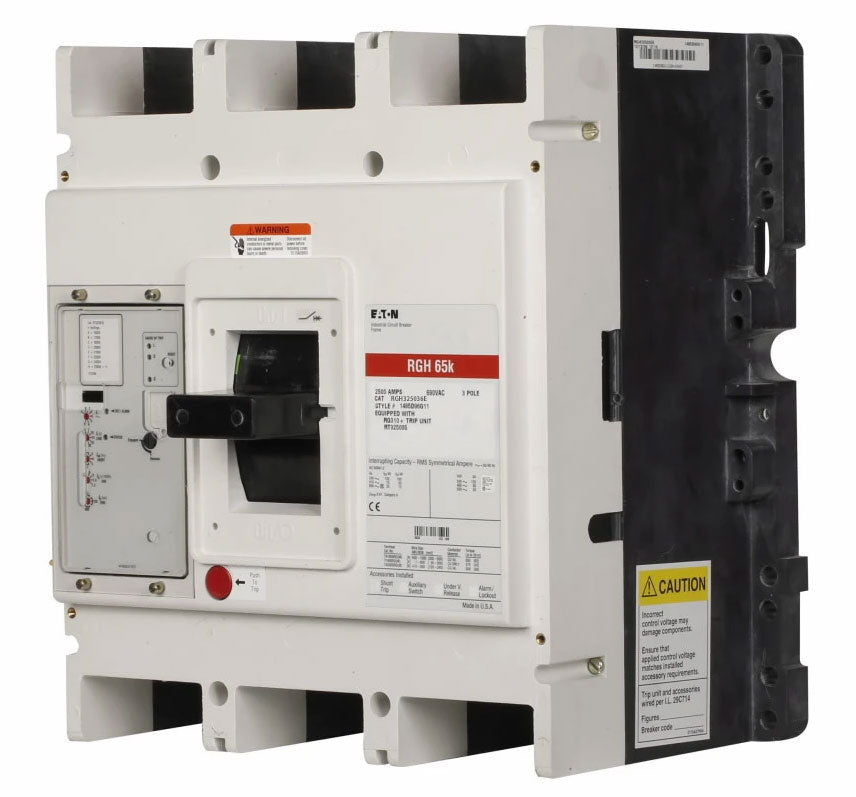

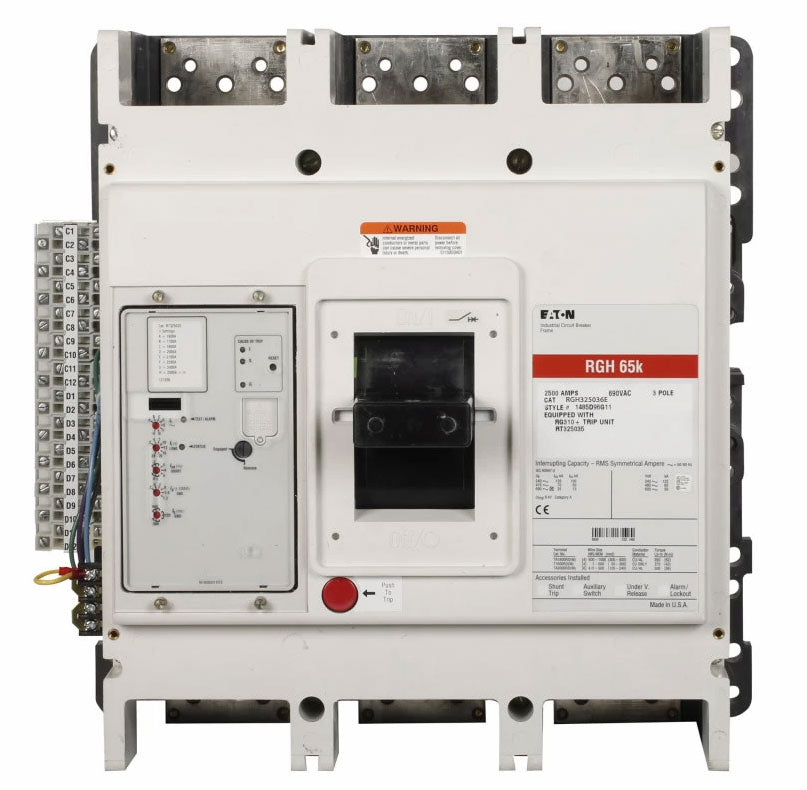

RGH325036E – Cutler Hammer / Eaton Series G RG Frame 3‑Pole 2500A 600V AC Molded Case Circuit Breaker, Electronic LSIG Trip, 65 kAIC @ 480V

Product Description

The Cutler Hammer RGH325036E is a 3-pole, 2500 Amp, 600 V AC RG frame Series G molded case circuit breaker designed for heavy industrial and commercial electrical distribution systems. This breaker features an electronic LSIG trip unit that delivers Long‑Time, Short‑Time, Instantaneous, and Ground Fault protection for dependable performance in demanding electrical environments.

It provides high interrupting capacity at multiple voltages to ensure robust protection against fault currents: 65 kAIC @ 480 V AC, 125 kAIC @ 240 V AC, and 50 kAIC @ 600 V AC. This high level of fault‑current interruption capability makes the RGH325036E suitable for use in heavy‑duty power distribution applications where safety and reliability are critical.

Key Features

• Poles: 3

• Amperage: 2500 A

• Voltage: 600 V AC (also suitable for up to 250 V DC)

• Type: RG Frame Series G Molded Case Circuit Breaker

• Electronic LSIG trip unit with Long‑Time, Short‑Time, Instantaneous, and Ground Fault protection

• High interrupting capacity: 65 kAIC @ 480 V AC, 125 kAIC @ 240 V AC, 50 kAIC @ 600 V AC

• Bolt‑on mounting for secure installation

• Rugged molded case construction for industrial use

• UL listed for commercial and industrial electrical protection

Technical Specifications

• Manufacturer: Cutler Hammer / Eaton

• Catalog Number: RGH325036E

• Frame: RG Frame (Series G)

• Phase: 3‑phase

• Trip Type: Electronic LSIG

• Mounting Type: Bolt‑on

• Frequency Rating: 50/60 Hz

• Operating Temperature: Standard industrial range

Product Data

• UPC / GTIN: 786685574608

• Provides reliable overload and short‑circuit protection for industrial and commercial panels

• Compatible with PowerPact and RG frame switchboards and distribution equipment

• Built to meet UL 489 and IEC 60947‑2 safety standards
