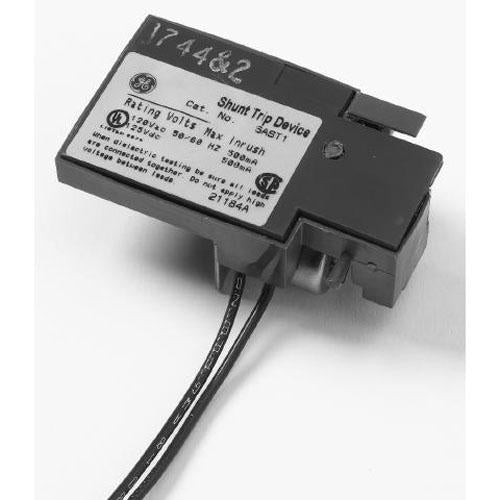

GE SAST1 Shunt Trip – 120VAC/125VDC – Left-Pole – 75VA – Remote Trip – Field-Installable – SAST Series

The GE SAST1 is a field-installable shunt trip accessory designed for compatible GE Spectra RMS circuit breakers. It provides remote tripping of the circuit breaker when used with a momentary close contact. The shunt trip is suitable for use with Spectra RMS circuit breakers from the SE150 through SK1200, including instantaneous trip Mag-Break motor circuit protectors and molded case switches. These devices are also suitable for use with ground fault sensing and relaying equipment.

Specifications:

• Manufacturer : General Electric (GE)
• Product Type : Circuit Breaker Shunt Trip
• Model : SAST1
• Product Family : SAST Shunt Trip Accessories
• Accessory Type : Shunt Trip
• Installation : Field Installed
• Control Voltage (AC) : 120V AC
• Control Voltage (DC) : 125V DC
• Frequency : 50/60 Hz
• Power Rating : 75 VA
• Maximum VA : 75 VA
• Mounting Location : Left Pole
• Remote Tripping : Yes
• Application : Remote circuit breaker tripping
• Compatible Frames : SE150, SF250, SG600, SK1200 Series Spectra RMS Circuit Breakers
• GSA Compliance : No
• AC Listing : UL Listed for 50–60 Hz
• Compatibility : Spectra RMS circuit breakers, instantaneous trip Mag-Break motor circuit protectors, and molded case switches
• Authenticity : Authentic General Electric Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : SAST1
• Catalog Number : SAST1
• Product Family : SAST Shunt Trip
• Brand : General Electric (GE)
• Manufacturer : General Electric
• Product Type : Shunt Trip Accessory
• Model : SAST
• upc:783164211849

Compatibility:

Designed for use with compatible GE Spectra RMS circuit breakers from the SE150 through SK1200, including SE150, SF250, SG600, and SK1200 frame series. The SAST1 is a UL-listed, field-installable internal accessory that does not require cover removal for installation. It can be used with ground fault sensing and relaying equipment.

For applications using a maintained or latching relay contact, delayed shunt tripping may occur. Where delayed tripping is unacceptable, the appropriate bell alarm or auxiliary switch arrangement should be used according to the applicable breaker frame and manufacturer requirements.

Certifications:

• UL Listed
• 50–60 Hz AC Devices
• Genuine General Electric Product
• Field-Installable Accessory
