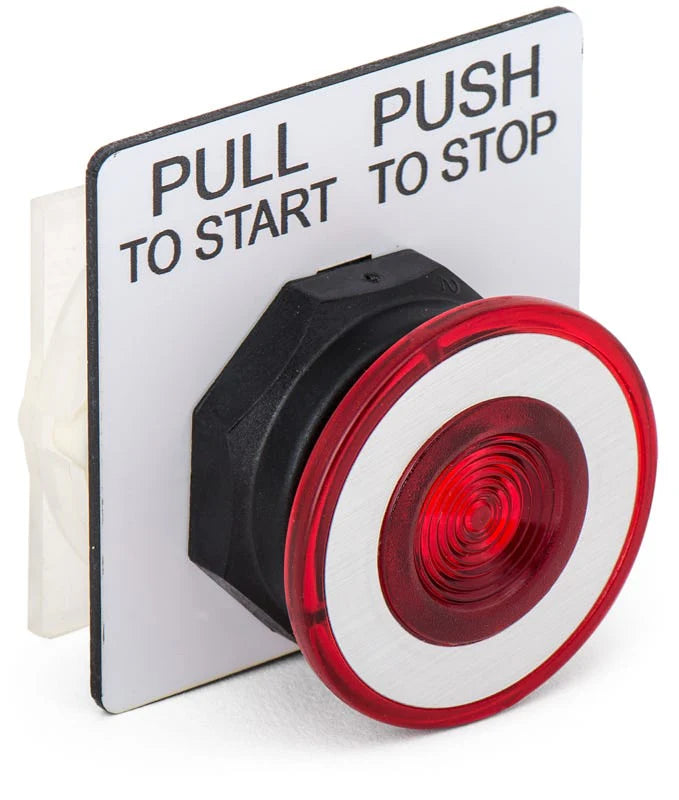

Schneider Electric 9001SKR9R Push Button Head – Mushroom Head – Maintained Action – Red – Panel Mount

The Schneider Electric 9001SKR9R is a heavy-duty push button head designed for industrial control and emergency stop applications within the Harmony 9001SK series. It features a maintained action mechanism, meaning the operator stays engaged after being pressed until manually reset, making it ideal for safety-related or critical machine control functions.

Built with a mushroom head actuator in a high-visibility red color, this push button head is designed for quick operator response in emergency or stop control situations. It mounts directly to standard 30 mm panel cutouts and is compatible with Schneider Electric 9001SK operator systems.

Specifications

• Brand: Schneider Electric
• Series: 9001SK
• Model Number: 9001SKR9R
• Type: Push Button Head
• Mounting Type: Panel Mount
• Actuator Type: Mushroom Head
• Action Type: Maintained
• Color: Red
• Terminal Connection: Screw

Dimensions

• Length: 2.72 in
• Width: 1.81 in
• Height: 1.77 in

NEMA Ratings

• NEMA 1
• NEMA 2
• NEMA 3
• NEMA 3R
• NEMA 4
• NEMA 4X
• NEMA 12
• NEMA 13

Temperature Rating

• -13 to 158 °F

Standards & Approvals

• UL Listed
• CSA Certified
• EN Compliant
• IEC Compliant
• JIS Compliant
• NEMA Rated
• RoHS Compliant
• REACh Compliant

Construction

• Rugged industrial-grade push button head
• Mushroom-style actuator for high visibility and easy operation
• Maintained contact mechanism for safety-critical applications
• Designed for 30 mm panel mounting systems
• Compatible with Harmony 9001SK operator assemblies

Applications

• Emergency stop stations
• Industrial machinery control panels
• Motor control circuits
• Manufacturing equipment
• HVAC and automation systems
• Safety interlock systems
