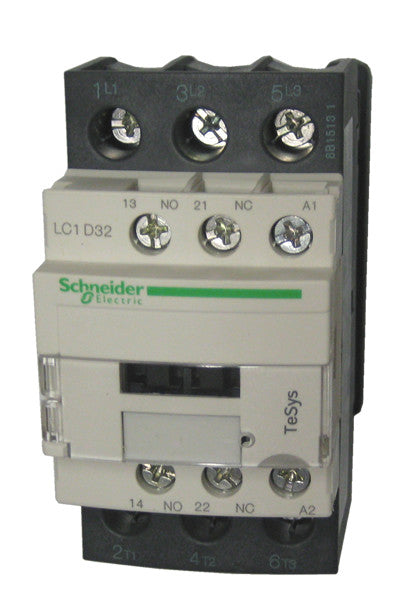

Schneider Electric LC1D32F7 TeSys D Contactor – 3 Pole – 32A – 110V AC Coil – AC-3 Motor Contactor – 10 HP (230V) / 20 HP (460V) – DIN Rail/Panel Mount

The Schneider Electric LC1D32F7 is a 3-phase IEC-rated magnetic contactor from the TeSys D series, designed for reliable motor control and power switching in industrial applications. It is commonly used in motor starters, HVAC systems, pumps, compressors, and automation panels, offering high switching performance and long electrical life with a 110V AC coil.

Electrical Ratings

• Contact Current Rating (AC-3): 32 A
• AC-1 Rated Current: 50 A
• Control Coil Voltage: 110 V AC
• Voltage Rating: up to 690 V AC
• Motor Power Rating:
  • 10 HP at 230 V (3-phase)
  • 20 HP at 460 V (3-phase)
• Frequency: 50/60 Hz
• Utilization Category: AC-3 / AC-1

Configuration and Function

• Device Type: IEC Magnetic Contactor
• Series: TeSys D (LC1D Series)
• Poles: 3 Pole (3 NO main contacts)
• Auxiliary Contacts: 1 NO + 1 NC (built-in)
• Primary Function: Motor control and load switching
• Operation: Electromagnetic coil-driven switching
• Type: Non-reversing contactor

Mechanical and Physical Characteristics

• Mounting Type: DIN Rail / Panel Mount
• Terminal Type: Screw terminals
• Compact TeSys D frame design
• Dual base mounting compatibility
• Enclosure Protection: IP2X (front face)
• Operating Temperature Range: -5 °C to 60 °C
• High mechanical and electrical durability

Standards and Certifications

• IEC 60947-4-1 compliant
• UL / CSA / CE certified (depending on configuration)
• UNSPSC: 39121500
• Manufacturer: Schneider Electric / Square D

Features

• 32A AC-3 rated motor switching capacity
• 110V AC coil for industrial control systems
• Built-in 1NO + 1NC auxiliary contacts for control circuits
• High endurance for frequent switching operations
• Compact modular design for control panel efficiency
• Suitable for HVAC, pumps, compressors, and industrial automation
• Long mechanical and electrical lifespan
• Reliable Schneider Electric TeSys D construction
• Easy DIN rail or panel mounting installation
