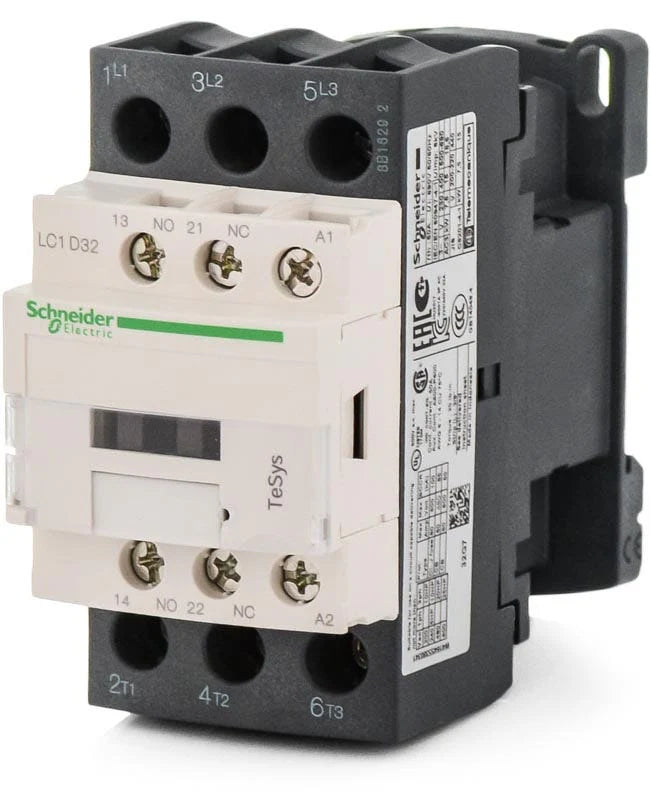

Schneider Electric LC1D32U7 IEC Contactor – 3 Pole – 32A – 240V AC Coil – TeSys D Series – AC-3 Motor Contactor – DIN Rail Mount – 10 HP (230V) / 20 HP (460V)

The Schneider Electric LC1D32U7 is a 3-phase IEC-rated magnetic contactor from the TeSys D (LC1D) series, designed for reliable motor control and industrial switching applications. It is widely used in motor starters, HVAC systems, pumps, compressors, and automation panels, offering high durability, global certification compliance, and efficient coil operation with a 240V AC control supply.

Electrical Ratings

• Contact Current Rating (AC-3): 32 A
• AC-1 Rated Current: 50 A
• Control Coil Voltage: 240 V AC (50/60 Hz)
• Voltage Rating: up to 690 V AC / 300 V DC
• Motor Power Rating:
  • 10 HP at 230 V (3-phase)
  • 20 HP at 460 V (3-phase)
• Frequency: 50/60 Hz
• Utilization Category: AC-3 / AC-1

Configuration and Function

• Device Type: IEC Magnetic Contactor
• Series: LC1 / TeSys D (LC1D Frame)
• Poles: 3 Pole
• Main Contacts: 3 NO (Normally Open)
• Auxiliary Contacts: 1 NO + 1 NC
• Primary Function: Motor control and load switching
• Operation: Electromagnetic coil-driven switching
• Action: Non-reversing contactor

Mechanical and Physical Characteristics

• Mounting Type: DIN Rail / Panel Mount
• Terminal Type: Screw clamp terminals
• Frame Type: LC1D compact industrial frame
• Dimensions (approx.):
  • Length: 3.62 in
  • Width: 1.77 in
  • Height: 3.35 in
• Operating Temperature Range: -40 °F to 140 °F
• High mechanical durability for industrial use

Standards and Certifications

• IEC / EN / UL / CSA compliant
• CCC, EAC, UKCA, CB certified
• Marine approvals: BV, DNV, GL, LROS, RINA
• RoHS and REACh compliant
• Manufacturer: Schneider Electric / Square D
• MPN: LC1D32U7
• UPC / GTIN: 785901207221

Features

• 32A AC-3 rated motor switching capability
• 240V AC coil for industrial control applications
• Built-in 1NO + 1NC auxiliary contacts
• Wide global certification for industrial use
• Compact TeSys D design for panel space optimization
• Suitable for HVAC, pumps, compressors, and automation systems
• High endurance for frequent switching operations
• Reliable performance in demanding environments
• Easy DIN rail or panel mounting installation
