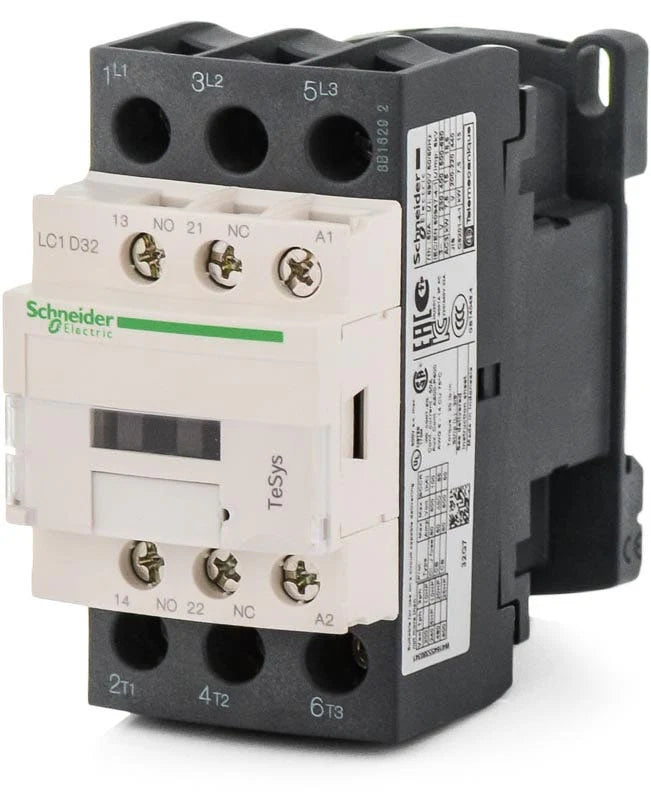

Schneider Electric LC1D38B7 TeSys D Contactor – 3 Pole – 38A – 24V AC Coil – 3 NO – IP20 – Screw Clamp Terminal – DIN Rail/Panel Mount – Motor Control Contactor

The Schneider Electric LC1D38B7 is a 3-phase IEC-rated magnetic contactor from the TeSys D (LC1D) series, designed for reliable motor control and industrial power switching applications. It is commonly used in motor starters, HVAC systems, pumps, compressors, and automation panels, offering compact design, high durability, and efficient low-voltage coil operation.

Electrical Ratings

• Contact Current Rating: 38 A (AC-3 typical)
• Contact Rating: 10 / 50 A (application dependent)
• Control Coil Voltage: 24 V AC
• Coil Power Rating: 7.5 VA
• Wattage: 3 W
• Voltage Rating: up to 690 V AC (series dependent)
• Frequency Rating: 25–400 Hz
• Utilization Category: AC-3 / AC-1

Configuration and Function

• Device Type: IEC Magnetic Contactor
• Series: TeSys D (LC1D Series)
• Poles: 3 Pole
• Main Contacts: 3 NO (Normally Open)
• Auxiliary Contacts: 1 NO + 1 NC
• Primary Function: Motor control and load switching
• Operation: Electromagnetic coil-driven switching
• Action: Non-reversing contactor

Mechanical and Physical Characteristics

• Mounting Type: Surface / DIN rail compatible
• Terminal Type: Screw clamp terminals
• Enclosure Protection: IP20
• Dimensions (W × D × H): 45 mm × 92 mm × 85 mm
• Operating Temperature Range: -5 °C to 60 °C
• Mechanical endurance: up to 3,600 operating cycles (application dependent)

Standards and Certifications

• IEC / UL / CSA compliant design
• UNSPSC: 39121529
• UPC: 00785901755470
• Manufacturer: Schneider Electric / Square D
• Country of Origin: Singapore

Features

• 38A industrial motor switching capability
• 24V AC low-voltage control coil for safety systems
• Wide frequency range operation (25–400 Hz)
• Compact TeSys D modular design for control panels
• Built-in 1NO + 1NC auxiliary contacts
• Suitable for HVAC, pumps, compressors, and automation systems
• Screw clamp terminals for secure wiring
• High reliability for industrial switching applications
• Easy integration into motor starter assemblies
