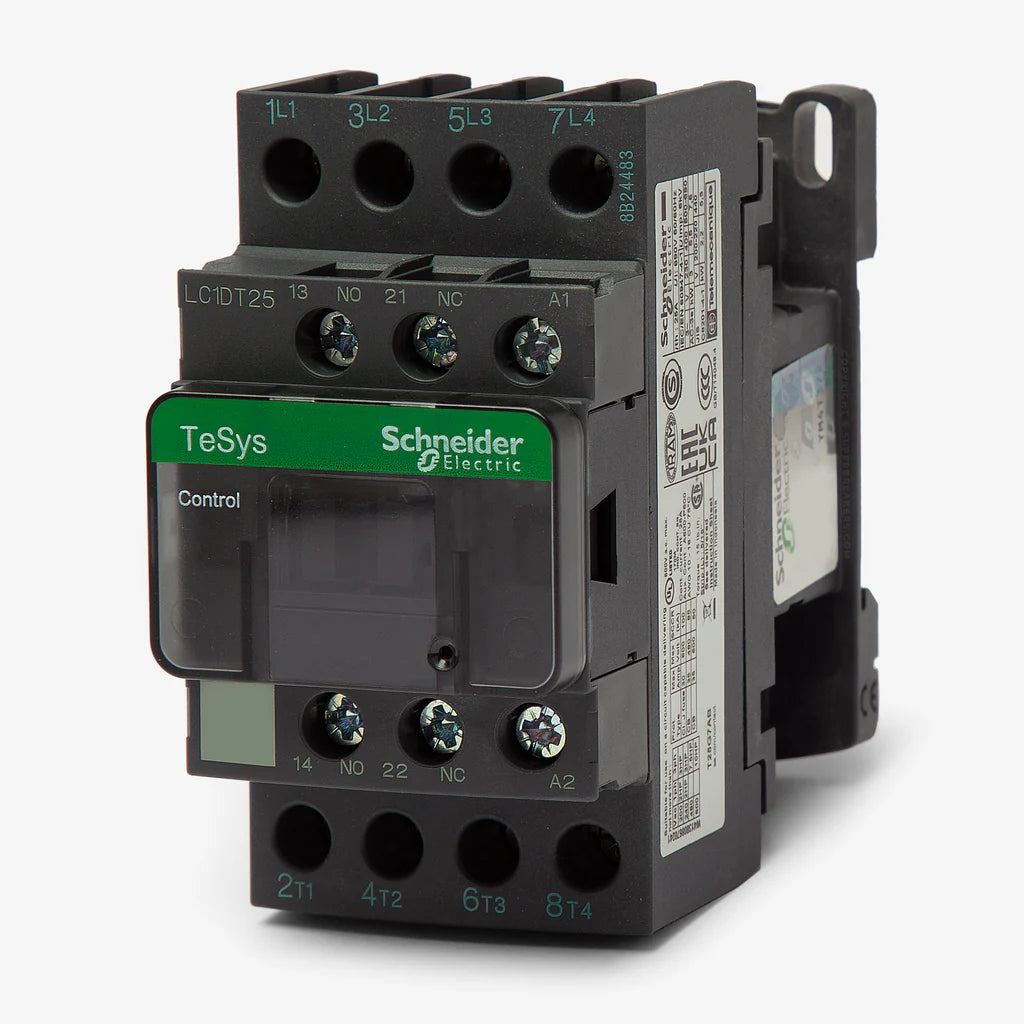

Schneider Electric LC1DT25G7 IEC Contactor – 4 Pole – 25A – 120V AC Coil – TeSys D Series – DIN Rail Mount – Multi-Pole Industrial Contactor

The Schneider Electric LC1DT25G7 is a 4-pole IEC-rated magnetic contactor from the TeSys D (LC1D) series, designed for reliable switching of three-phase and auxiliary/control circuits. It is commonly used in motor control systems, HVAC applications, automation panels, and distribution circuits where additional pole switching is required for enhanced control flexibility.

Electrical Ratings

• Contact Current Rating: 25 A (AC-3)
• Voltage Rating: up to 690 V AC / 300 V DC
• Control Coil Voltage: 120 V AC (50/60 Hz)
• Frequency: 50/60 Hz
• Utilization Category: AC-3 / AC-1 (application dependent)
• Application Type: Motor control and multi-circuit switching

Configuration and Function

• Device Type: IEC Magnetic Contactor
• Series: TeSys D (LC1D Series)
• Poles: 4 Pole
• Main Contacts: 4 NO (or 3 power + 1 auxiliary depending on configuration)
• Auxiliary Contacts: 1 NO + 1 NC (built-in base configuration)
• Primary Function: Motor and multi-circuit control switching
• Operation: Electromagnetic coil-driven switching
• Action: Non-reversing contactor

Mechanical and Physical Characteristics

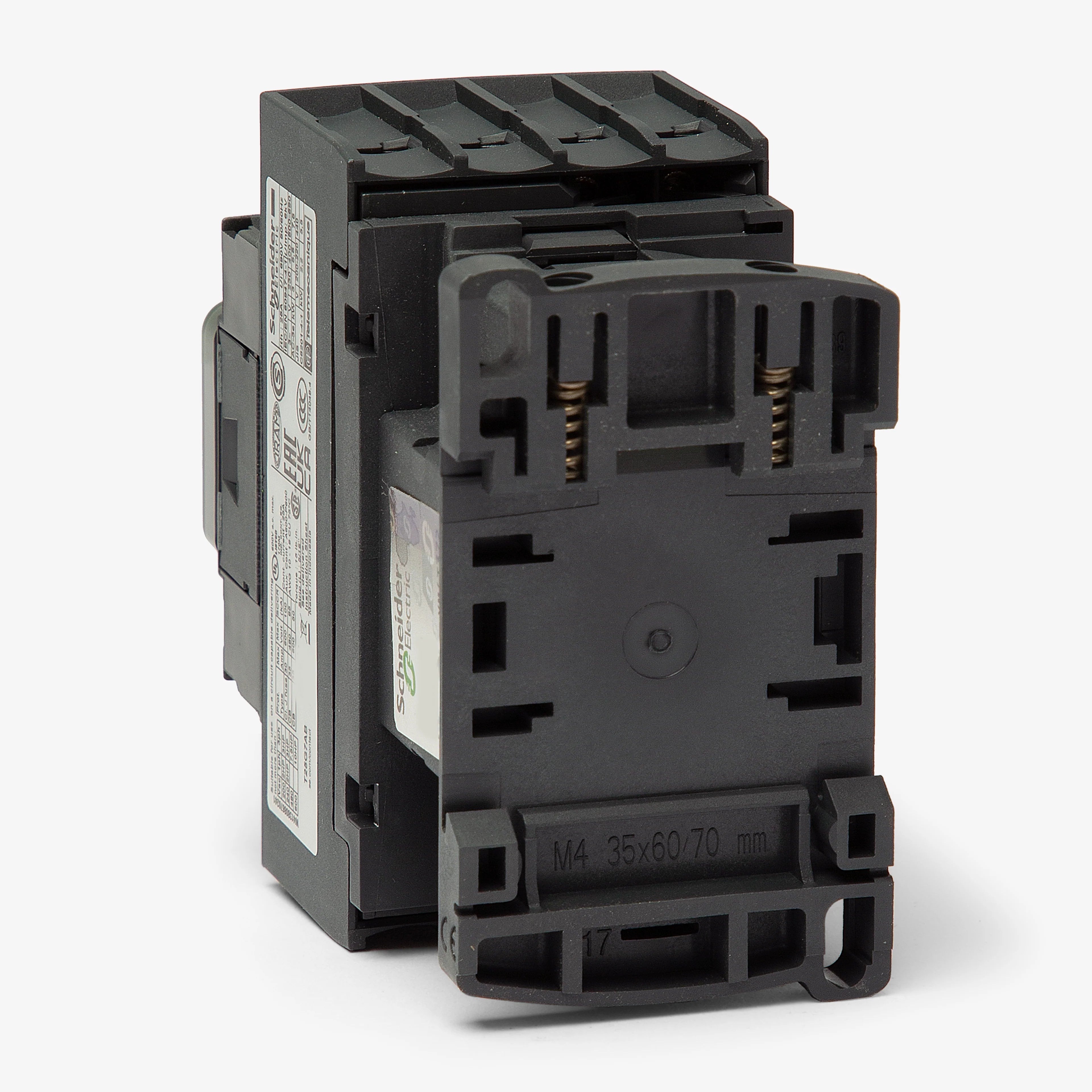

• Mounting Type: DIN Rail Mount
• Terminal Type: Screw clamp terminals
• Frame Type: LC1D compact industrial design
• Dimensions: 3.62 in (L) × 1.77 in (W) × 3.35 in (H)
• Operating Temperature Range: -40 °F to 140 °F
• High mechanical endurance for industrial use

Standards and Certifications

• IEC / UL / CSA / EN compliant
• CCC, EAC, UKCA certified
• Marine approvals: BV, DNV, GL, LROS, RINA
• RoHS / REACh compliant
• Manufacturer: Schneider Electric / Square D
• MPN: LC1DT25G7
• UPC / GTIN: 785901503217

Features

• 25A industrial-grade multi-pole switching capability
• 120V AC control coil for standard industrial systems
• 4-pole design for enhanced circuit control flexibility
• Suitable for HVAC, pumps, compressors, and automation systems
• Compact TeSys D modular design for control panel efficiency
• Wide international certification coverage for global use
• Screw clamp terminals for secure wiring
• High reliability under frequent switching conditions
• Long electrical and mechanical service life
