Square D

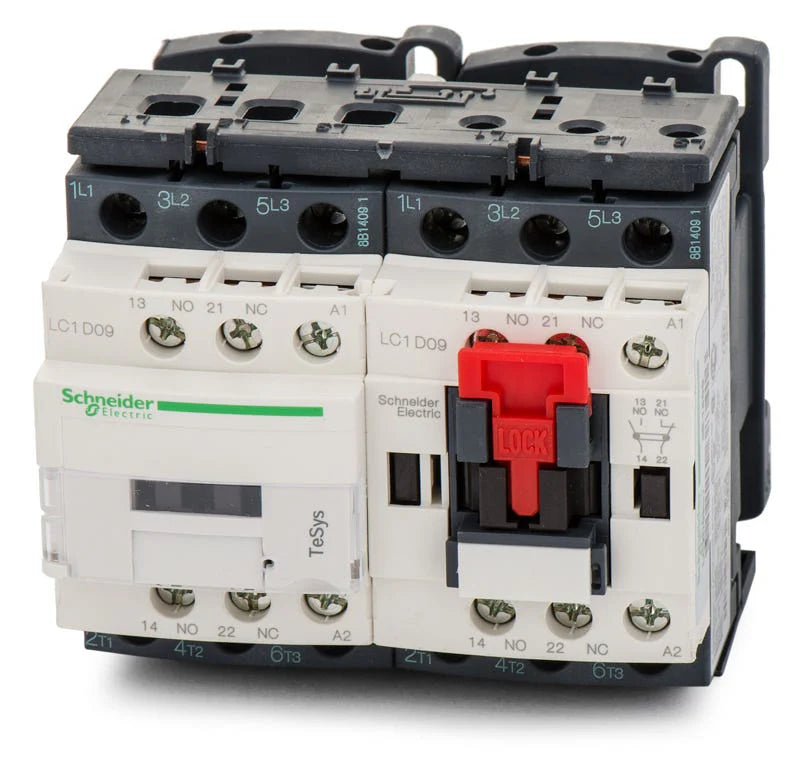

Schneider Electric LC2D09G7 IEC Reversing Contactor – 3 Pole – 9A – 120V AC Coil – TeSys D Series – DIN Rail Mount – Motor Reversing Contactor

In stock
SKU: LC2D09G7 GTIN/UPC: 785901207382
$149.80
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Schneider Electric LC2D09G7 is a 3-phase IEC-rated reversing magnetic contactor from the TeSys D (LC2D) series, designed for forward/reverse motor control applications. It is commonly used in industrial automation systems, conveyor drives, hoists, cranes, and machinery where motor direction control is required, offering reliable switching performance and compact design.

Electrical Ratings

  • Contact Current Rating (AC-3): 9 A
  • Voltage Rating: up to 690 V AC / 300 V DC
  • Control Coil Voltage: 120 V AC (50/60 Hz)
  • Frequency: 50/60 Hz
  • Utilization Category: AC-3 / AC-1 (application dependent)
  • Application Type: Motor reversing control

Configuration and Function

  • Device Type: IEC Reversing Magnetic Contactor
  • Series: TeSys D (LC2D Series)
  • Poles: 3 Pole
  • Main Contacts: 3 NO (per contactor set, reversing assembly)
  • Auxiliary Contacts: 1 NO + 1 NC
  • Primary Function: Forward/reverse motor control
  • Operation: Electromagnetic coil-driven switching
  • Action: Reversing contactor (mechanically/electrically interlocked)

Mechanical and Physical Characteristics

  • Mounting Type: DIN Rail Mount
  • Terminal Type: Screw clamp terminals
  • Frame Type: LC2D modular reversing assembly
  • Operating Temperature Range: -40 °F to 140 °F
  • Compact industrial design for control panels
  • High mechanical durability for frequent directional switching

Standards and Certifications

  • IEC / UL / CSA / EN compliant
  • CCC, EAC, UKCA certified
  • Marine approvals: BV, DNV, GL, LROS, RINA
  • RoHS / REACh compliant
  • Manufacturer: Schneider Electric / Square D
  • MPN: LC2D09G7
  • UPC / GTIN: 785901207382

Features

  • 9A reversing motor control capability
  • 120V AC coil for industrial control circuits
  • Designed for forward/reverse motor operation
  • Suitable for conveyors, hoists, cranes, and automation systems
  • Built-in interlocking for safe directional switching
  • Compact TeSys D design for control panel efficiency
  • Wide international certification coverage
  • Screw clamp terminals for secure wiring
  • High reliability and long electrical life
  • Easy DIN rail mounting for industrial installations
  • Type IEC Contactor
  • Vendor Square D
  • Brand Square D
