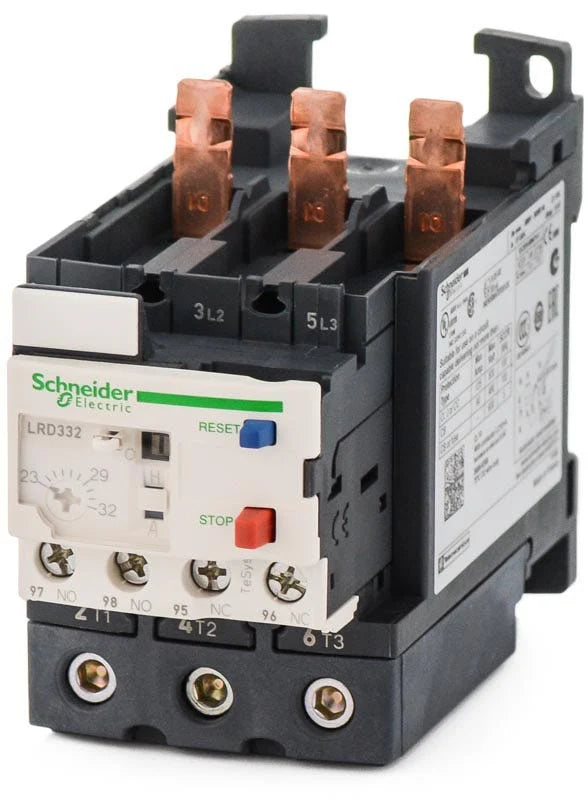

Schneider Electric LRD332 Thermal Overload Relay – 23–32A – TeSys Deca Series – DIN Rail/Plate Mount – Motor Protection Relay for LC1D40A/50A/65A Contactors

The Schneider Electric LRD332 is a 3-pole thermal overload relay from the TeSys Deca series, designed to protect three-phase motors from overload conditions. It works in combination with LC1D-series contactors to ensure safe motor operation by disconnecting the circuit when excessive current or prolonged overload is detected.

Electrical Ratings

• Current Setting Range: 23–32 A
• Voltage Rating: up to 600 / 690 V AC
• Phase: 3 Phase
• Poles: 3 Pole (thermal sensing elements)
• Protection Type: Thermal overload protection
• Application Type: Motor protection relay

Configuration and Function

• Device Type: Thermal Overload Relay
• Series: TeSys Deca
• Primary Function: Motor overload and phase protection
• Reset Function: Manual/automatic reset (configuration dependent)
• Trip Mechanism: Thermal bimetallic operation
• Trip Indication: Mechanical/electrical indication via auxiliary contacts

Compatibility

• Suitable For Use With:
  • LC1D40A contactors
  • LC1D50A contactors
  • LC1D65A contactors
• System Type: Motor starter assembly (contactor + overload relay)
• Installation: Direct mounting to compatible LC1D contactors

Mechanical and Physical Characteristics

• Mounting Type: DIN Rail / Plate Mount
• Terminal Type: Screw clamp terminals
• Dimensions: 4.84 in (L) × 2.17 in (W) × 4.84 in (H)
• Operating Temperature Range: -20 °C to 60 °C
• Compact industrial design for control panel integration
• High mechanical durability for motor protection systems

Contacts and Control

• Auxiliary Contacts: 1 NO + 1 NC
• Contact Function: Trip signaling and control interlock
• Reset Type: Manual or automatic selectable
• Built-in indication for overload trip status

Standards and Certifications

• IEC / EN / UL / CSA / CCC / EAC compliant
• Marine approvals: DNV-GL, LROS, RMRS
• ATEX certified (INERIS)
• UKCA compliant
• RoHS / REACh compliant
• Manufacturer: Schneider Electric
• Series: TeSys Deca
• MPN: LRD332
• UPC / GTIN: 785901811640

Features

• Adjustable 23–32A thermal overload protection range
• Designed for use with LC1D40A/50A/65A contactors
• Provides reliable motor overload and phase loss protection
• 1NO + 1NC auxiliary contacts for control and signaling
• Compact modular TeSys Deca design
• Direct mounting for fast installation in motor starters
• High reliability for industrial motor protection applications
