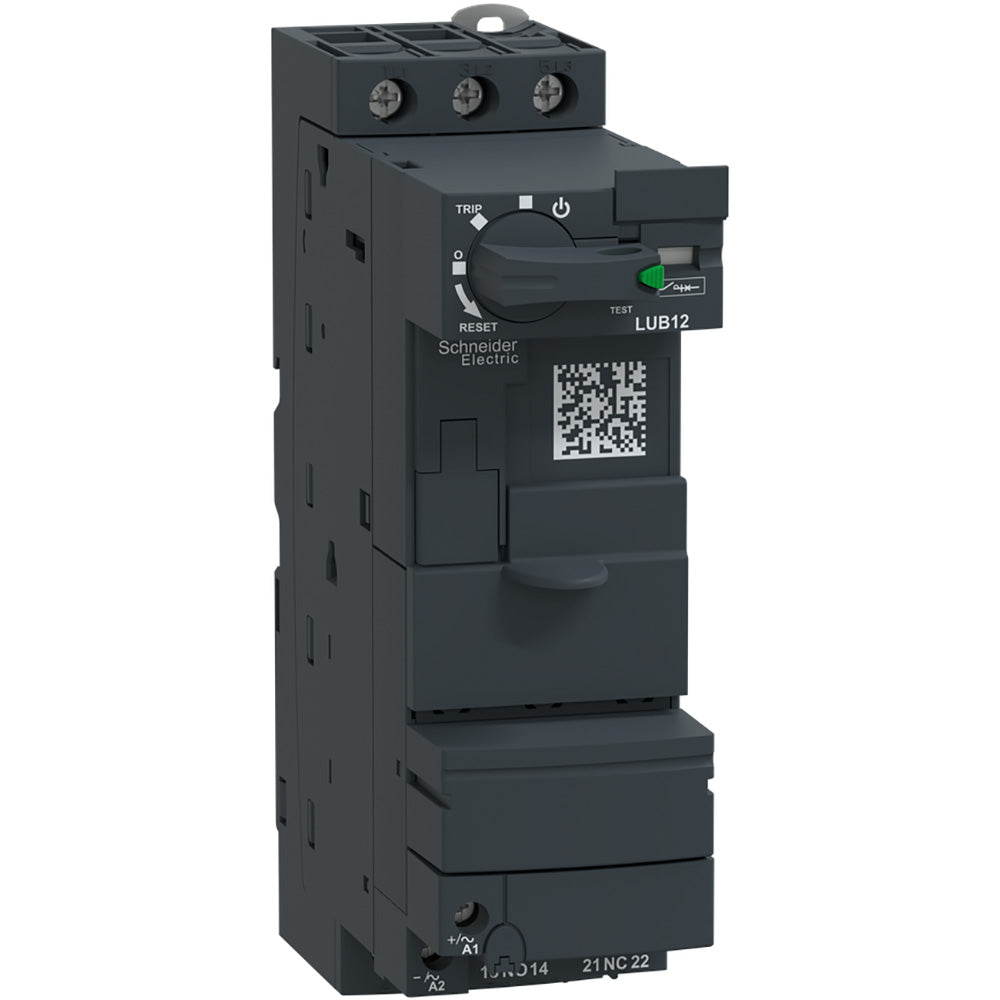

Schneider Electric LUB12 Motor Starter – TeSys Ultra Series – 3 Pole – 12A – 24V Control Voltage – Full Voltage Non-Reversing – Compact Motor Starter

The Schneider Electric LUB12 is a compact motor starter from the TeSys Ultra series designed for full-voltage, non-reversing motor control applications. It integrates switching and motor control functions in a single compact unit, making it suitable for space-saving industrial control panels, HVAC systems, and light-to-medium duty motor applications.

Electrical Ratings

• Input / Contact Current Rating: 12 A
• Control Voltage: 24 V
• Supply Voltage: up to 600 V AC
• Phase: 3 Phase
• Poles: 3 Pole
• Motor Power Rating: 0.5 – 10 HP
• Application Type: Full voltage motor starting (non-reversing)
• Function: Motor starter

Configuration and Function

• Device Type: Motor Starter
• Series: TeSys Ultra Series
• Type: Non-reversing motor starter
• Primary Function: Direct-on-line (DOL) motor starting and control
• Contact Form: 1 NO + 1 NC
• Operation: Electromagnetic switching system
• Control Interface: Low-voltage control circuit (24V)

Mechanical and Physical Characteristics

• Dimensions (H × W × D): 145 mm × 45 mm × 126 mm
• Overall Size: Compact modular design
• Mounting Type: Panel mounting (TeSys Ultra system)
• Terminal Type: Screw terminals
• Operating Temperature Range: -25 °C to +70 °C
• High-density design for control panel optimization

Function and Application

• Application: Full voltage non-reversing motor starter
• Primary Use: Motor control in industrial and commercial systems
• Suitable For: HVAC, pumps, small conveyors, and machinery
• Integrated design reduces need for multiple separate components

Standards and Certifications

• UL Listed
• CSA Certified
• IEC / EN compliant
• Manufacturer: Schneider Electric
• Series: TeSys Ultra
• MPN: LUB12
• UPC: 785901222248
• UNSPSC: 39120000

Features

• Compact integrated motor starter design
• 12A rating suitable for light industrial motors
• 24V control voltage for safe automation integration
• Non-reversing direct motor control operation
• Space-saving TeSys Ultra modular construction
• Wide operating temperature range (-25 to +70 °C)
