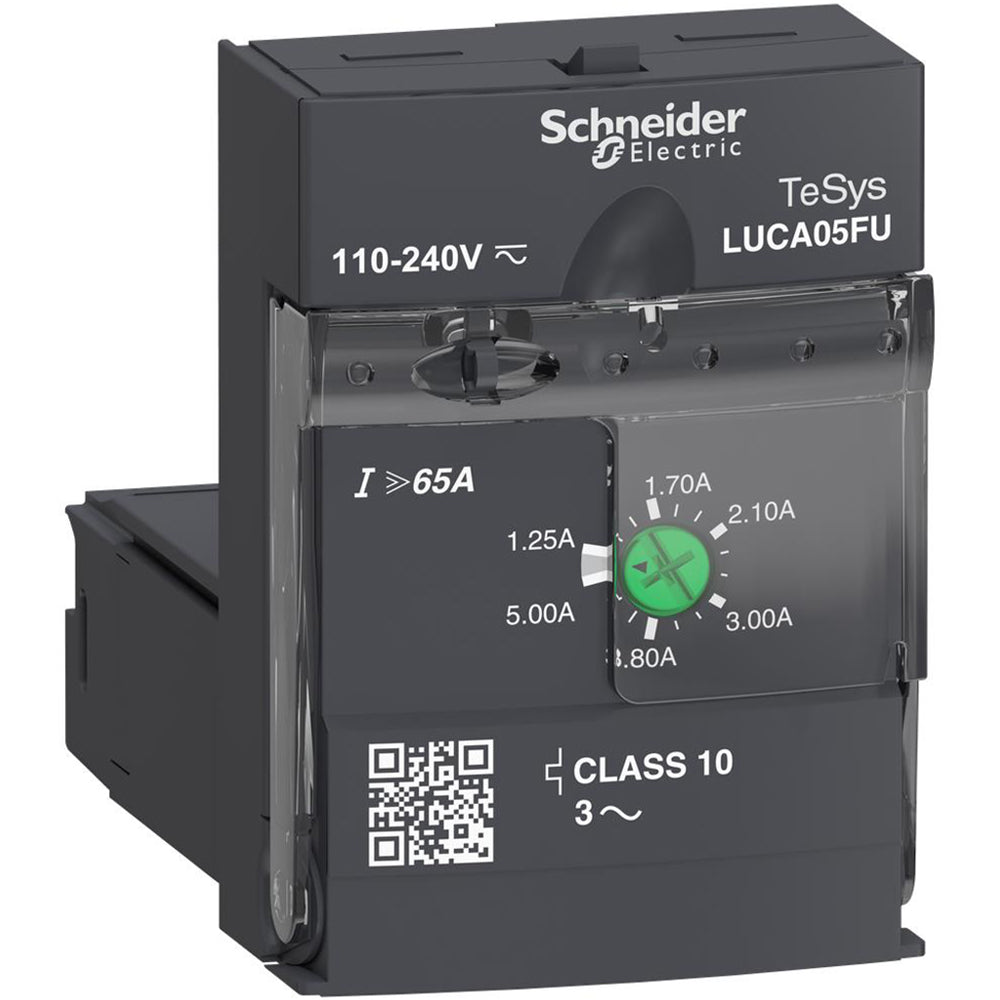

Schneider Electric LUCA05FU Control Unit – TeSys Ultra Series – 1.25–5A – 110–240V Control Voltage – Motor Starter Control Module

The Schneider Electric LUCA05FU is a control unit from the TeSys Ultra series designed for use in modular motor starter systems. It provides adjustable current control and protection functions for small to medium motor applications. This unit works in combination with TeSys Ultra power bases to deliver compact, efficient, and reliable motor control in industrial and OEM environments.

Electrical Ratings

• Current Rating Range: 1.25–5 A
• Control Voltage: 110–240 V
• Supply Voltage: up to 600 V AC
• Voltage Rating: 110 V (control circuit reference)
• Phase: 3 Phase (motor starter application)
• Application Type: Motor control and protection module

Configuration and Function

• Device Type: Motor Starter Control Unit
• Series: TeSys Ultra Series
• Primary Function: Motor protection and control (used with TeSys Ultra power base)
• Operation Type: Electronic control module
• Adjustable Current Setting: Yes (1.25–5 A range)
• Protection Features: Overload and motor protection (system dependent configuration)

Compatibility

• For Use With: TeSys Ultra motor starter power bases
• System Type: Modular motor starter system
• Application: OEM machinery, HVAC, pumps, and light industrial motors
• Mounting: Front-mounted control unit

Mechanical and Physical Characteristics

• Dimensions (H × W × D): 2.60 in × 1.77 in × 2.36 in
• Mounting Type: Front mount
• Operating Temperature Range: -25 °C to +70 °C
• Compact modular design for panel integration
• High-density industrial control component

Controls and Safety Features

• Adjustable current setting for motor protection
• Electronic control logic (TeSys Ultra system-based)
• Integrated motor protection when paired with compatible base
• Designed for reliable operation in automated systems
• Stable performance across wide temperature range

Standards and Certifications

• IEC / EN compliant design
• UL / CSA certified (system dependent)
• Manufacturer: Schneider Electric
• Series: TeSys Ultra
• MPN: LUCA05FU
• UPC: 785901221883
• UNSPSC: 39120000

Features

• Compact electronic motor starter control module
• Adjustable 1.25–5A motor protection range
• Designed for use with TeSys Ultra modular systems
• Wide control voltage compatibility (110–240V)
• Front-mounted for easy installation and replacement
• High reliability for OEM and industrial applications
• Space-saving modular architecture
• Suitable for HVAC, pumps, and light machinery
• Wide operating temperature range (-25 to +70 °C)
• Efficient integration into automated control panels
