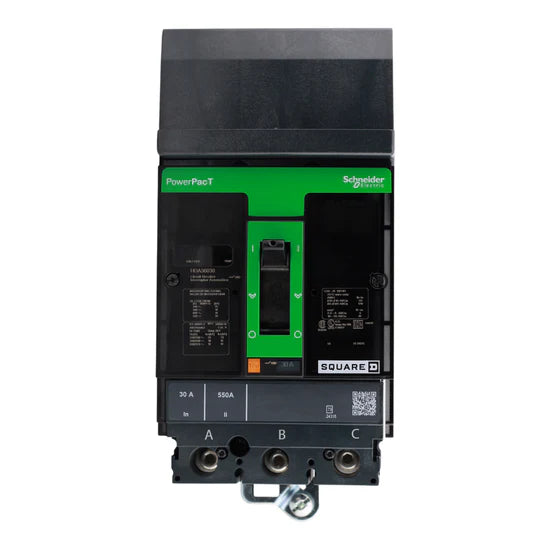

Schneider Electric PowerPacT HDA36030 30A 3-Pole 600V Thermal-Magnetic I-Line Circuit Breaker

The Schneider Electric PowerPacT HDA36030, branded under Square D, is a 30 Amp, 3-pole thermal-magnetic circuit breaker designed for 600V AC systems. Built for use in Square D I-Line panelboards and switchboards, this PowerPacT H-Frame breaker delivers dependable overload and short-circuit protection for commercial and industrial power distribution applications.

Key Electrical Ratings

• Amperage: 30 Amps
• Poles: 3-Pole
• Voltage Rating: 600 Volts AC
• Interrupt Rating: 14 kAIC
• Breaker Type: Thermal-Magnetic

Mounting & Connections

• Mounting Mode: I-Line
• Line Connection: I-Line bus connection
• Load Connection: Lugs
• Wire Size Range: AWG 14 to AWG 3/0 (Copper/Aluminum)
• Tightening Torque:
• 44.3 lb-in (AWG 14–10)
• 123.9 lb-in (AWG 8–3/0)

Certifications & Compliance

• UL Listed
• CSA Certified
• NOM Certified
• IEC 60947-2 Compliant
• HACR Rated
