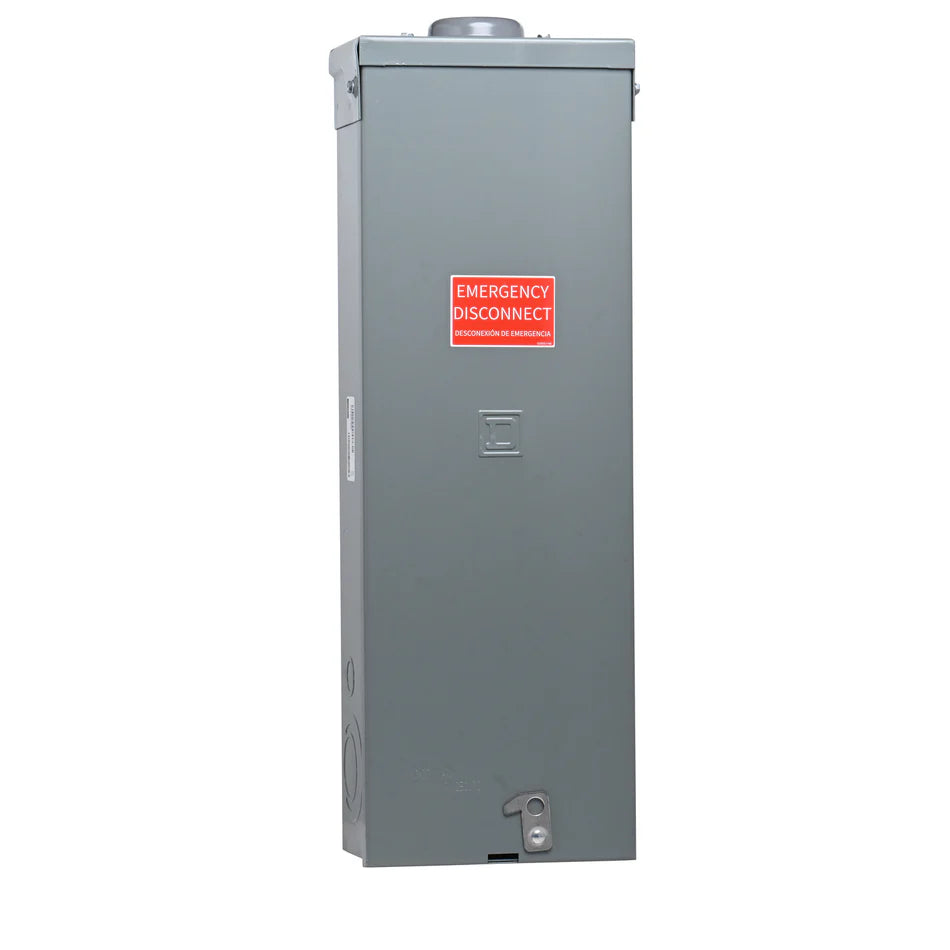

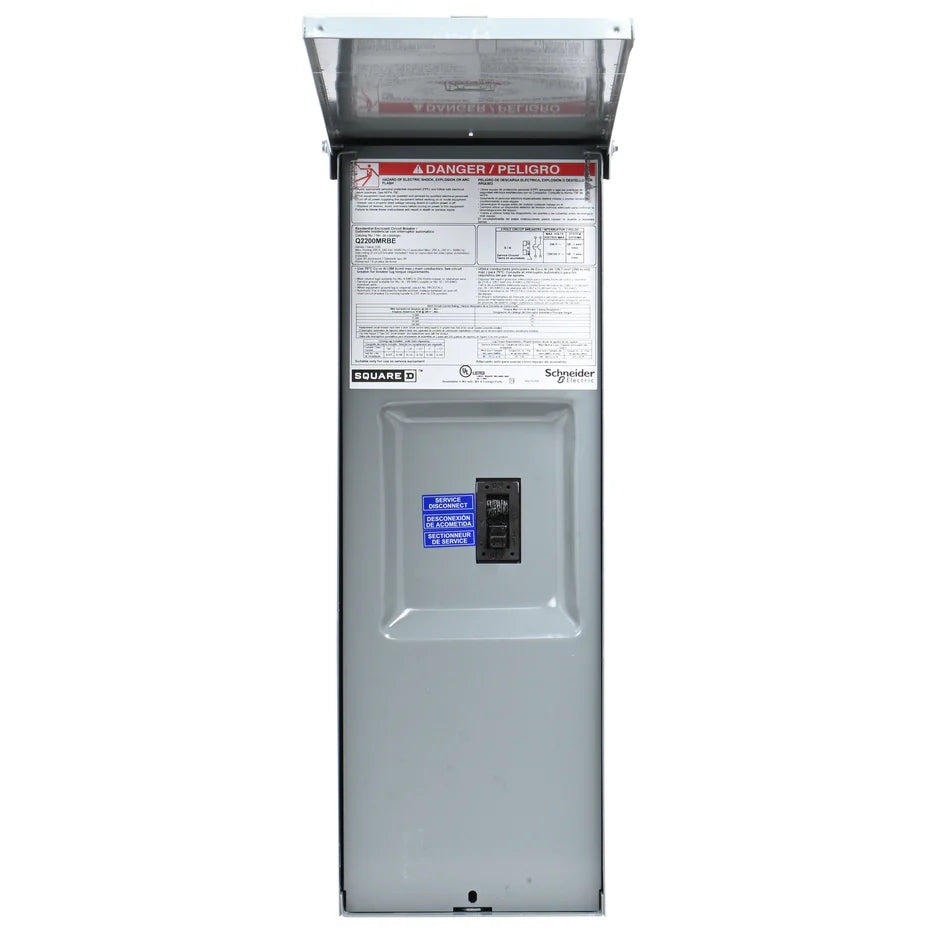

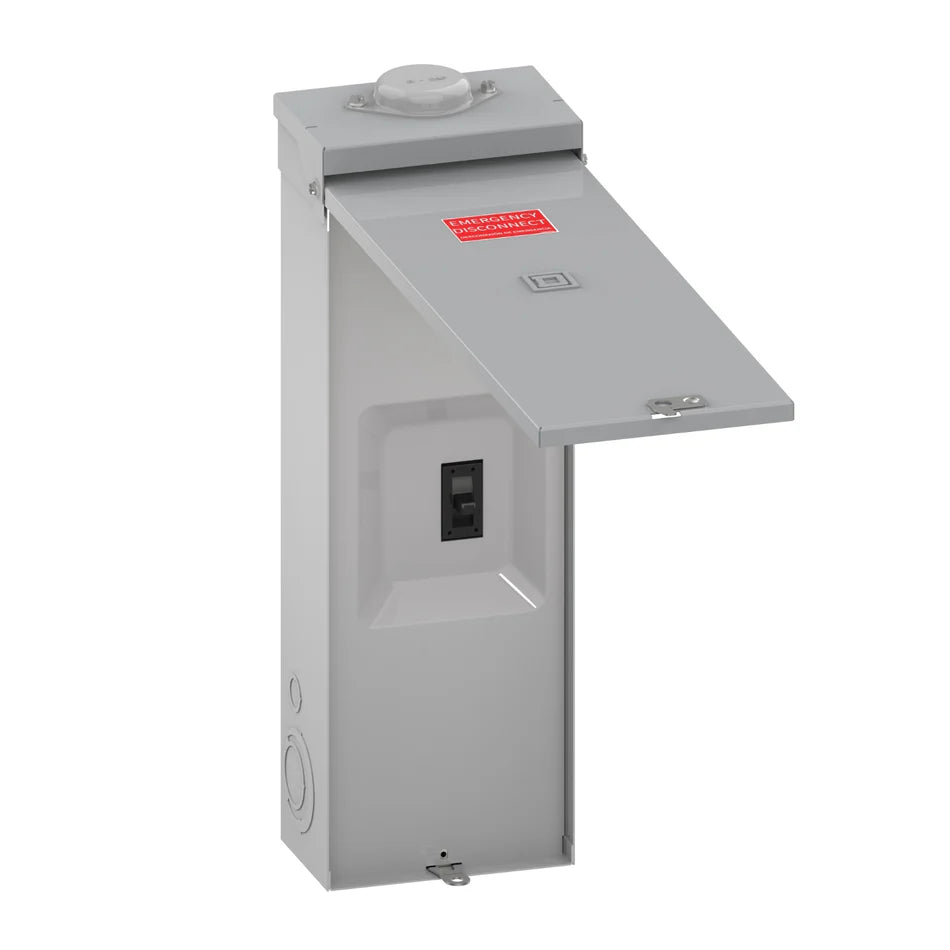

Schneider Electric Q2200MRBE 200A 240V 2-Pole Main Breaker Enclosure – NEMA 3R Outdoor

The Q2200MRBE Enclosed Main Breaker from Schneider Electric is a factory-assembled, outdoor-rated disconnect solution designed for residential and light commercial service entrances. It comes pre-installed with a 200 Amp, 2-pole QDL22200 circuit breaker, providing dependable overcurrent protection in a rugged NEMA 3R enclosure suitable for outdoor use.

This unit is ideal for applications requiring a compact, code-compliant main breaker enclosure that protects electrical systems from weather, dust, and rain.

Electrical Ratings

• Current Rating: 200 Amps
• Voltage Rating: 240 Volts AC
• Number of Poles: 2-Pole
• Included Breaker: QDL22200

Breaker & Enclosure Details

• Product Type: Enclosed Circuit Breaker
• Enclosure Rating: NEMA 3R (Outdoor Rated)
• Application: Service entrance / main disconnect
• Construction: Factory-assembled breaker and enclosure
• Protection: Weather-resistant for outdoor installations

Certifications & Compliance

1. UL Listed
2. CSA Certified

Physical Specifications

• Height: 23.4 in (594 mm)
• Width: 7.6 in (194 mm)
• Depth: 4.8 in (121 mm)
• Weight: 18.33 lb (8.31 kg)

Product Data

• • Brand: Schneider Electric
  • Model Number: Q2200MRBE
  • UPC: 785901695660
