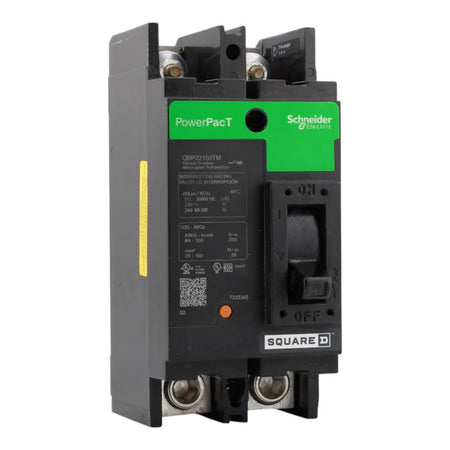

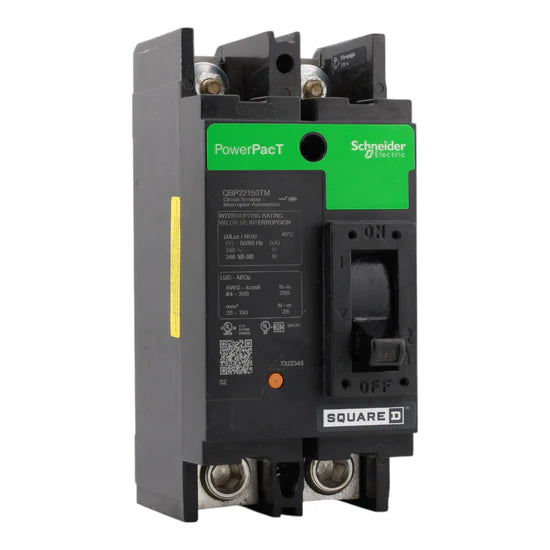

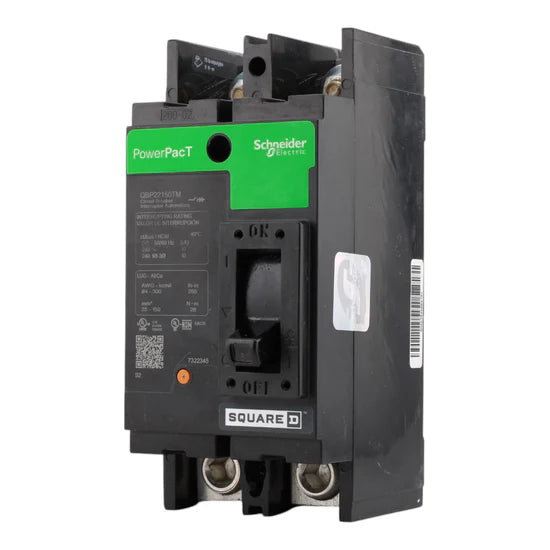

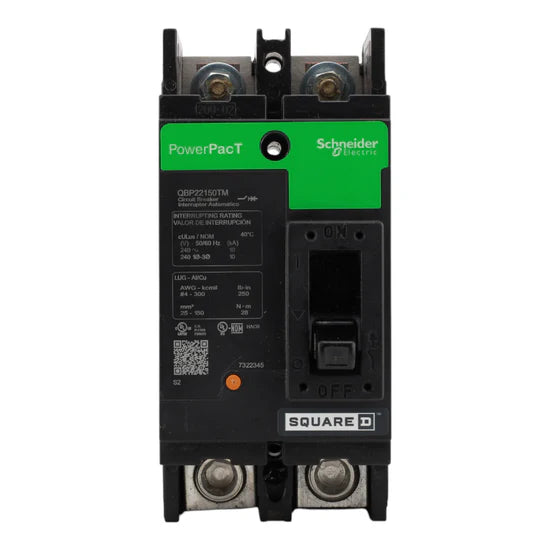

The Schneider Electric QDL22175 PowerPacT Q-Frame Molded Case Circuit Breaker is designed for electrical distribution applications requiring reliable overload and short-circuit protection. Rated at 175 Amps and 240V AC, this 2-pole breaker features thermal-magnetic trip technology and a 25 kA interrupt rating. With an 80% continuous current rating, HACR certification, and durable mechanical performance, it is ideal for commercial and industrial systems.
Voltage & Ratings
- Current Rating: 175 Amps
- Voltage Rating: 240 Volts AC
- Interrupt Rating: 25 kA at 120/208V AC and 240V AC
- Continuous Current Rating: 80%
- Operating Temperature: 104–158°F (40–70°C)
Key Specifications
- Breaker Type: PowerPacT Q-Frame Molded Case Circuit Breaker
- Trip Unit Technology: Thermal-Magnetic
- Number of Poles: 2-Pole
- Mounting Type: Unit Mount Lug
- Connection Type: Line and Load Lugs
- Utilization Category: Category A
- Application: Distribution
- HACR Rated: Yes
Technical Specifications
- Magnetic Tripping Current: 2400A
- Magnetic Hold Current: 1200A
- Tightening Torque: 247.8 lbf.in (28 N·m)
- Wire Size Range: AWG 4–300 kcmil (25–150 mm²)
- Mechanical Durability: 1000 cycles (loaded), 5000 cycles (no load)
- Features: Push-to-Trip Button, Green Trip Indicator
Product Data
- Manufacturer: Schneider Electric
- Brand: Schneider Electric
- Model Number: QDL22175
- UPC: 785901522836
Dimensions:
- Height: 6.47 in
- Width: 3 in
- Depth: 3.93 in
Standards & Certifications:
- UL Listed
- CSA Certified
- NEMA
- NOM-003-SCFI-2000
