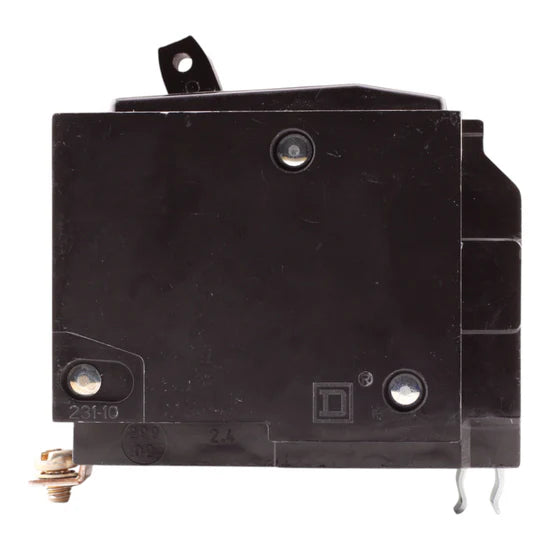

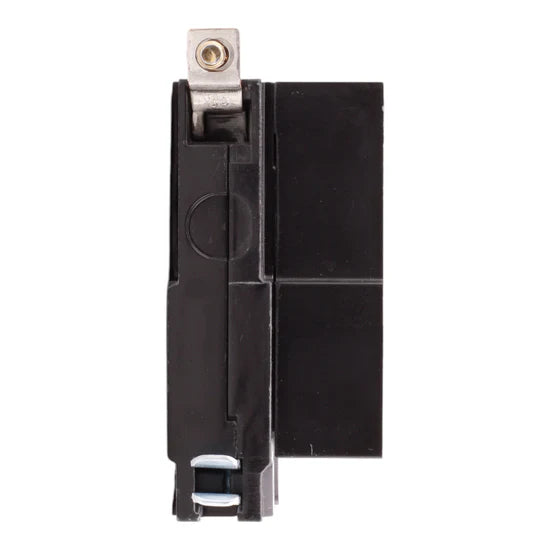

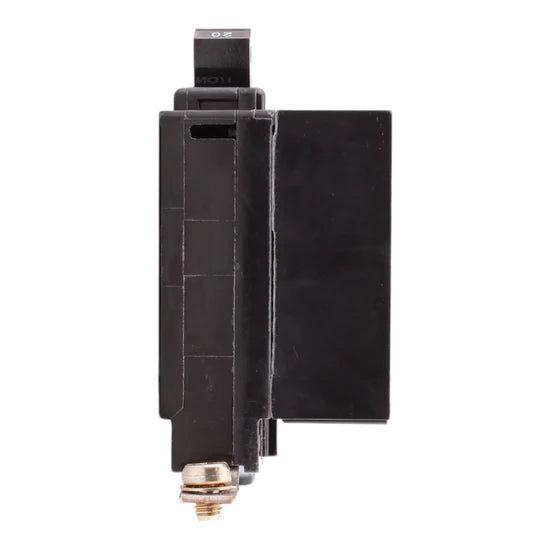

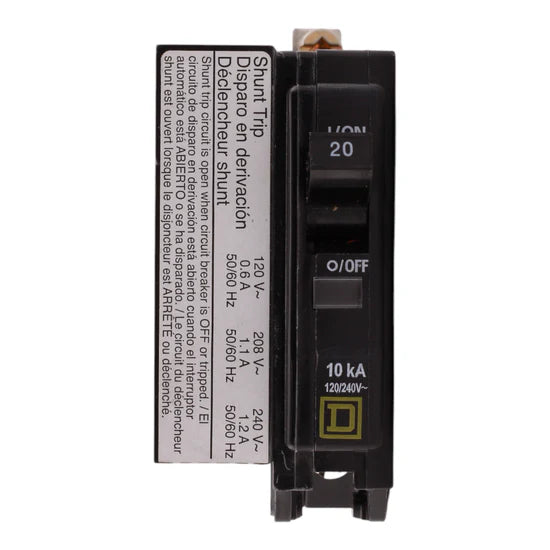

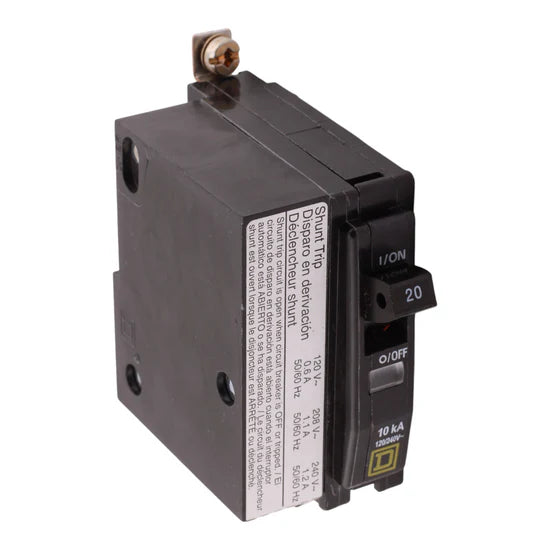

Schneider Electric QOB1201021 20A 1-Pole Standard Breaker – Bolt-On – 120/240V

The Schneider Electric QOB1201021 bolt-on circuit breaker provides reliable 20A, 1-pole standard protection for 120/240V circuits in Square D QO loadcenters. Featuring a shunt trip for remote tripping, it ensures enhanced safety and functionality for residential and commercial applications.

Voltage and Rating

• Amperage: 20 Amps
• Poles: 1-Pole
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Standard
• Mounting Type: Bolt-On

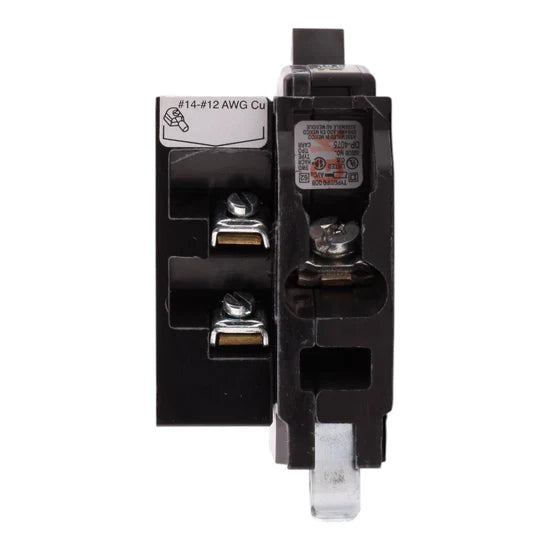

• Connection Terminals: Pressure Plate

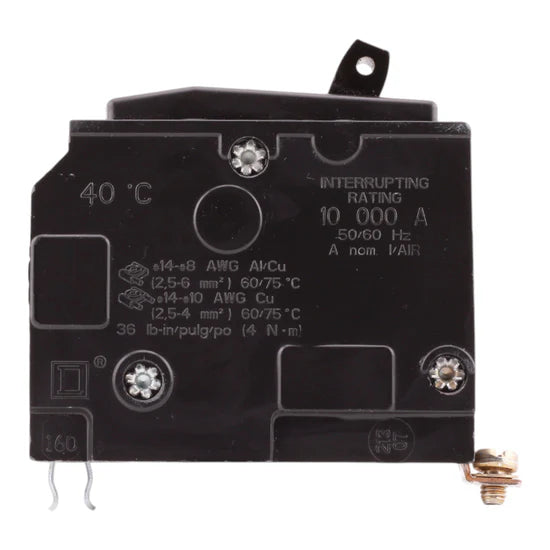

• Wire Size Range: AWG 14–8 Cu/Al
• Application: Residential and commercial branch circuit protection

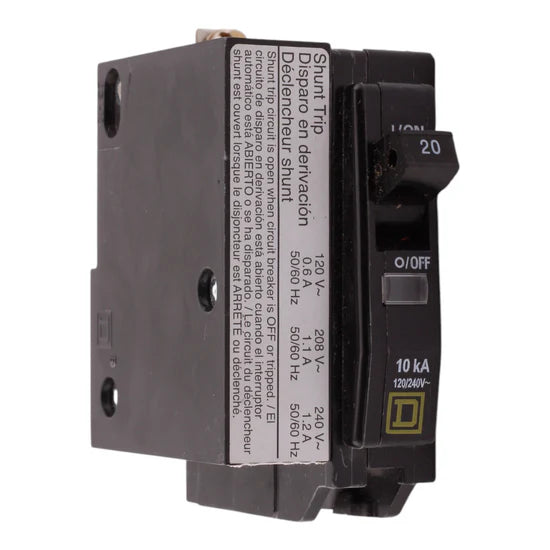

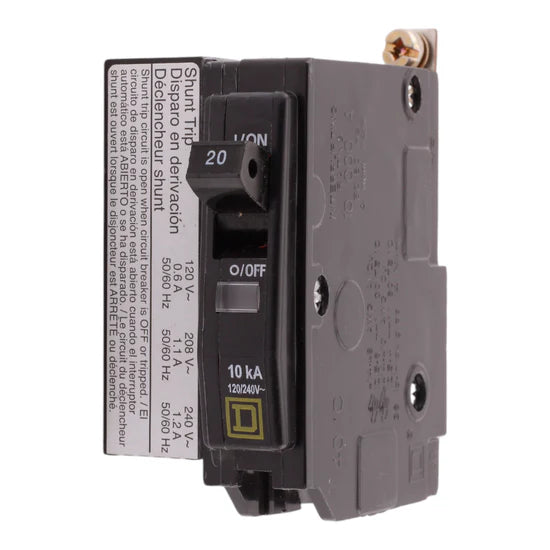

• Special Feature: Shunt Trip 120/208/240V AC

Technical Specifications

• Dimensions: Height: 3.0 in, Width: 1.5 in, Depth: 2.9 in
• Weight: 0.280 lbs
• Tightening Torque: 35.4 lb-in
• Certifications: UL Listed, CSA Certified, HACR Rated

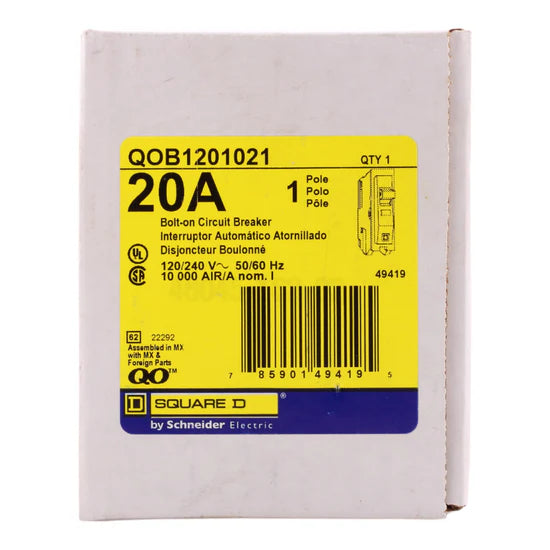

Product Data

• • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: QOB1201021
  • UPC: 785901494195
