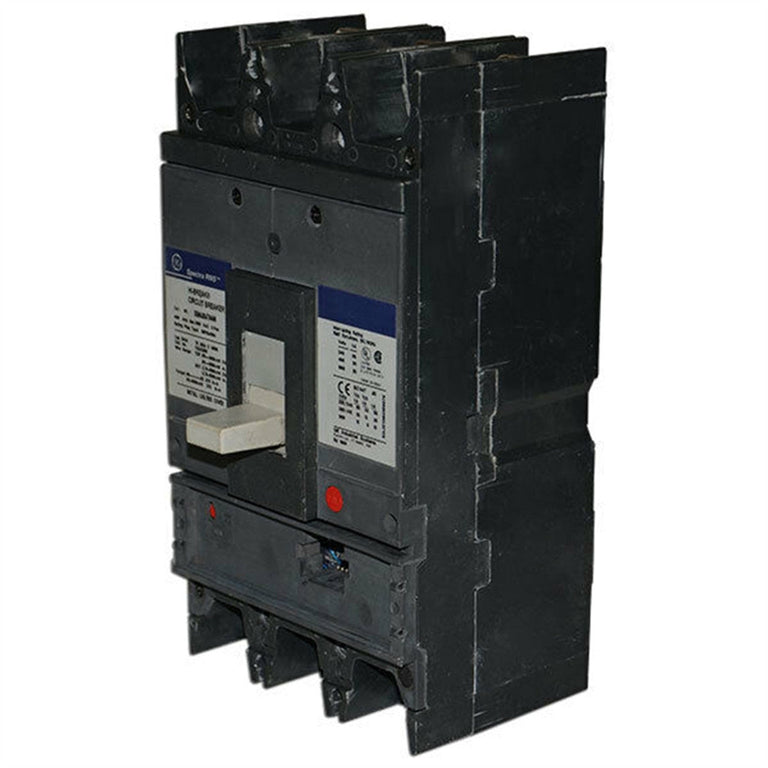

The GE SEDA36AT0100 is a 100A, 3-pole molded case circuit breaker from the GE Spectra RMS Series. It is rated for 600V AC and is designed for commercial and industrial power distribution applications.
The breaker features an electronic LSI trip system providing Long-Time, Short-Time, and Instantaneous protection. Built on the SE150 frame platform, it uses a bolt-on mounting configuration and is suitable for compatible panelboards, switchboards, and electrical distribution equipment.
Specifications:
- Manufacturer: General Electric (GE)
- Product Type: Molded Case Circuit Breaker
- Catalog No.: SEDA36AT0100
- Product Family: Spectra RMS
- Series: Spectra RMS
- Frame Type: SE150
- Current Rating: 100A
- Number of Poles: 3-Pole
- Phase: 3-Phase
- Voltage Rating: 600V AC
- Frequency: 50/60 Hz
- Trip Type: Electronic LSI
- Trip Functions: Long-Time, Short-Time, and Instantaneous
- Mounting Type: Bolt-On
- Interrupting Rating: 18kA @ 480V AC; 14kA @ 600V AC
- Application: Commercial and Industrial Power Distribution
- Technology: Spectra RMS
- Weight: Approx. 8–10 lb
- Dimensions (H × W × D): Approx. 10" × 6" × 5"
- Brand: GE
- Authenticity: Authentic General Electric Product
Part Numbers & Identification:
- Manufacturer Part Number (MPN): SEDA36AT0100
- Catalog Number: SEDA36AT0100
- Model: SEDA36AT0100
- Product Family: GE Spectra RMS
- Series: Spectra RMS
- Frame: SE150
- Brand: GE
- Manufacturer: General Electric
- Product Type: Molded Case Circuit Breaker
- Configuration: 3-Pole, 100A
- GTIN: 783164211412
- upc:783164211412
Compatibility:
Designed for use with compatible GE Spectra RMS electrical distribution equipment accepting SEDA Series molded case circuit breakers. The SEDA36AT0100 provides 100A, 3-pole electronic LSI protection for compatible 600V AC, 3-phase commercial and industrial applications.
It is suitable for applications including compatible panelboards, switchboards, and distribution equipment. Always verify the specific equipment model, approved breaker type, system voltage, available fault current, frame compatibility, mounting arrangement, and installation requirements before installation.
Certifications:
- UL Listed
- 100A Rated
- 3-Pole / 3-Phase
- 600V AC Rated
- 18kA @ 480V AC Interrupting Rating
- 14kA @ 600V AC Interrupting Rating
- Electronic LSI Trip
- Long-Time / Short-Time / Instantaneous Protection
- Bolt-On Mounting
- SE150 Frame
- Spectra RMS Series
- Genuine GE Product
