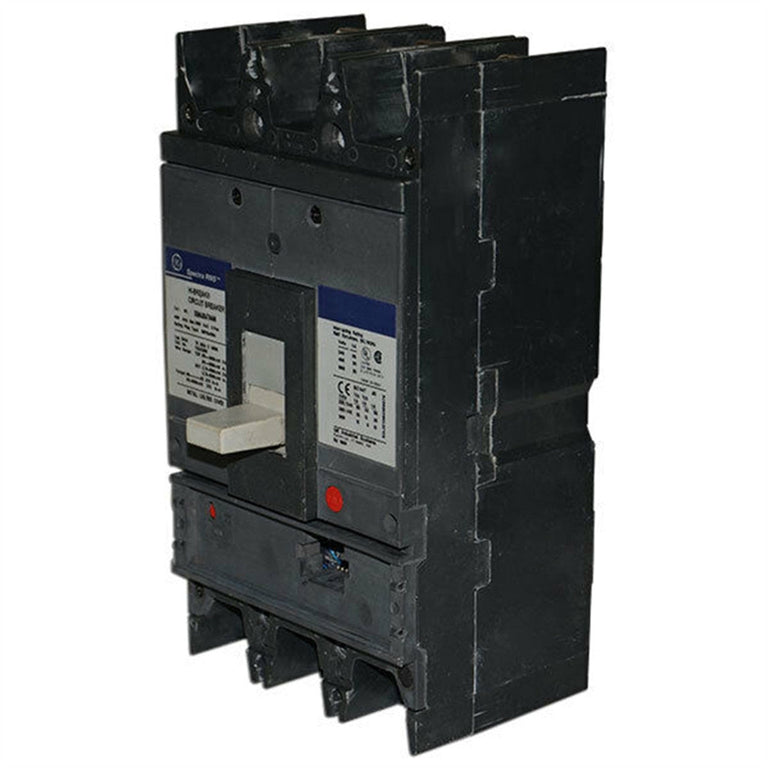

GE SEHA36AT0030 Molded Case Circuit Breaker – 30A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Bolt-On – Spectra SEHA Series

The GE SEHA36AT0030 is a 30A, 3-pole, 3-phase solid-state electronic molded case circuit breaker from the GE Spectra Series Type SEHA. It is designed for compatible electrical distribution applications and features an interchangeable RMS trip unit with LSI protection functions.

The breaker is rated for 600V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration, is suitable for reverse-fed applications, and is supplied without lugs. The breaker is UL Listed.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Spectra Series
• Series: Spectra
• Type: SEHA
• Catalog No.: SEHA36AT0030
• Current Rating: 30A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Solid-State Electronic
• Trip Unit: Interchangeable RMS Trip Unit
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Mounting Type: Bolt-On
• Reverse Feed: Suitable for Reverse-Fed Applications
• Breaker Configuration: Complete Breaker
• Lugs: Not Included
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SEHA36AT0030
• Catalog Number: SEHA36AT0030
• Model: SEHA36AT0030
• Product Family: GE Spectra Circuit Breakers
• Series: Spectra
• Type: SEHA
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 30A
• Rated Current: 30A
• Rated Voltage: 600V
• Trip Configuration: Interchangeable RMS Trip Unit with LSI Functions
• UPC : 783164227055

Compatibility:

Designed for use with compatible GE Spectra Series Type SEHA electrical distribution equipment that accepts SEHA Series molded case circuit breakers. The SEHA36AT0030 provides 30A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker uses a bolt-on mounting configuration, includes an interchangeable RMS trip unit with Long-Time, Short-Time, and Instantaneous (LSI) functions, and is suitable for reverse-fed applications as specified. Lugs are not included. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, trip-unit compatibility, pole configuration, lug selection, reverse-feed requirements, and installation specifications before installation.

Certifications:

• UL Listed
• GE Spectra Series
• SEHA Type
• 30A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Solid-State Electronic Protection
• Interchangeable RMS Trip Unit
• Long-Time, Short-Time, and Instantaneous (LSI) Trip Functions
• Bolt-On Mounting
• Suitable for Reverse-Fed Applications
• Complete Breaker
• Lugs Not Included
