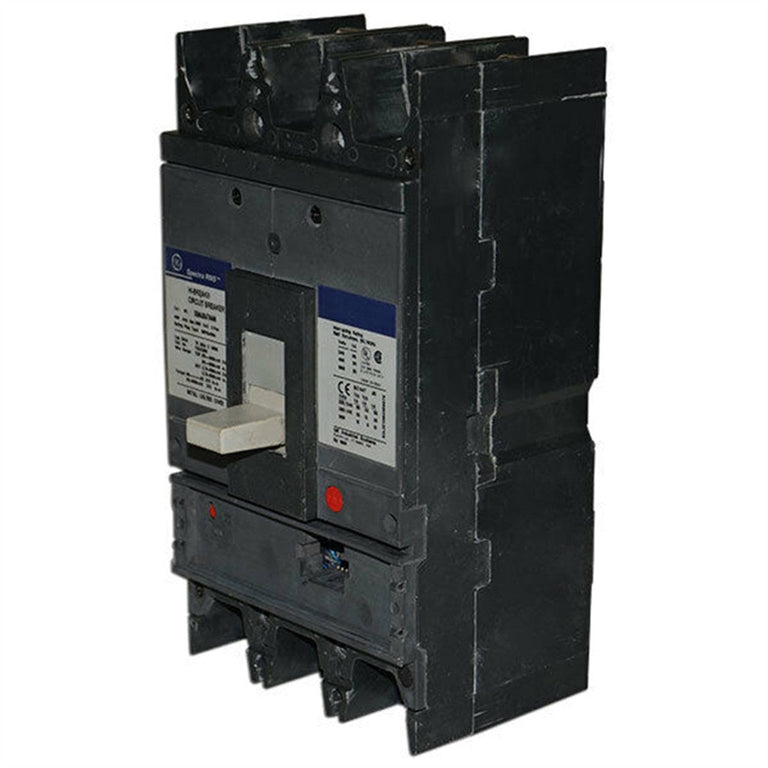

GE SEHA36AT0150 Molded Case Circuit Breaker – 150A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – Bolt-On – Spectra Series

The GE SEHA36AT0150 is a 150A, 3-pole, 3-phase molded case circuit breaker from the GE Spectra Series Type SEHA. It features a solid-state electronic RMS trip unit with Long-Time, Short-Time, and Instantaneous (LSI) trip functions.

The breaker is rated for 600V and provides a 25kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration, features an interchangeable trip unit, and is suitable for reverse-fed applications. Lugs are not included.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Spectra Series
• Series: Spectra
• Type: SEHA
• Catalog No.: SEHA36AT0150
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Solid-State Electronic
• Trip Unit: Interchangeable RMS Trip Unit
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Trip Type: Interchangeable
• Mounting Type: Bolt-On
• Reverse Feed: Suitable for Reverse-Fed Applications
• Lugs: Not Included
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SEHA36AT0150
• Catalog Number: SEHA36AT0150
• Model: SEHA36AT0150
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Product Family: Spectra Series Molded Case Circuit Breakers
• Series: Spectra
• Type: SEHA
• Breaker Configuration: 3-Pole, 150A
• Trip Unit: Interchangeable RMS
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• UPC:783164211450

Compatibility:

Designed for use with compatible GE Spectra Series Type SEHA electrical distribution equipment that accepts bolt-on molded case circuit breakers. The SEHA36AT0150 provides 150A, 3-pole protection for compatible 600V electrical distribution applications.

The breaker uses an interchangeable solid-state RMS trip unit with LSI protection and is suitable for reverse-fed applications. Lugs are not included, so compatible terminals must be selected separately as required.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, trip-unit compatibility, pole configuration, mounting arrangement, lug requirements, and installation specifications before installation.

Certifications:

• UL Listed
• Spectra Series
• 150A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Solid-State Electronic Protection
• Interchangeable RMS Trip Unit
• Long-Time, Short-Time, and Instantaneous (LSI) Trip Functions
• Bolt-On Mounting
• Suitable for Reverse-Fed Applications
• Lugs Not Included
