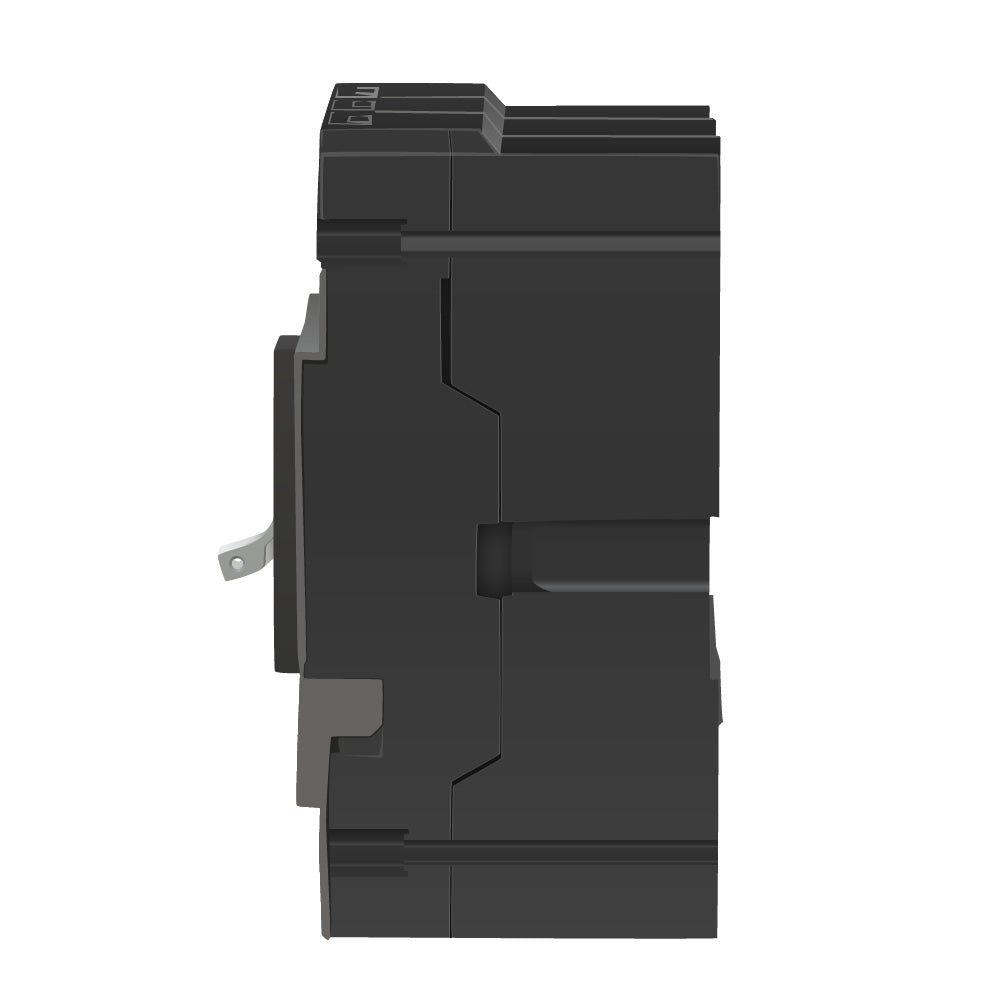

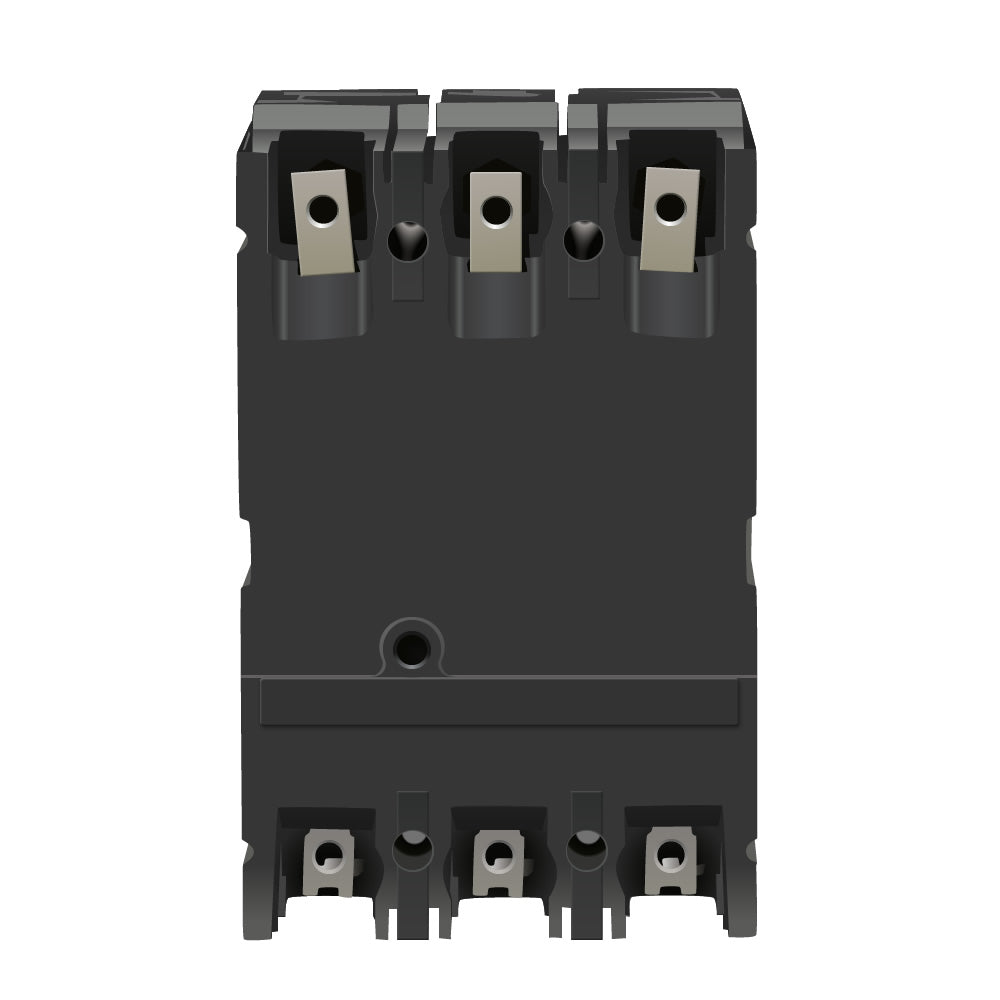

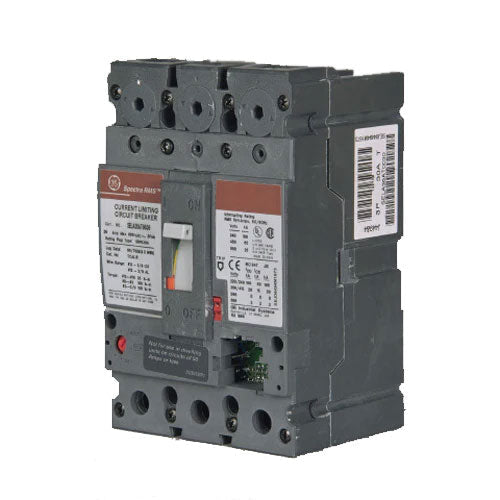

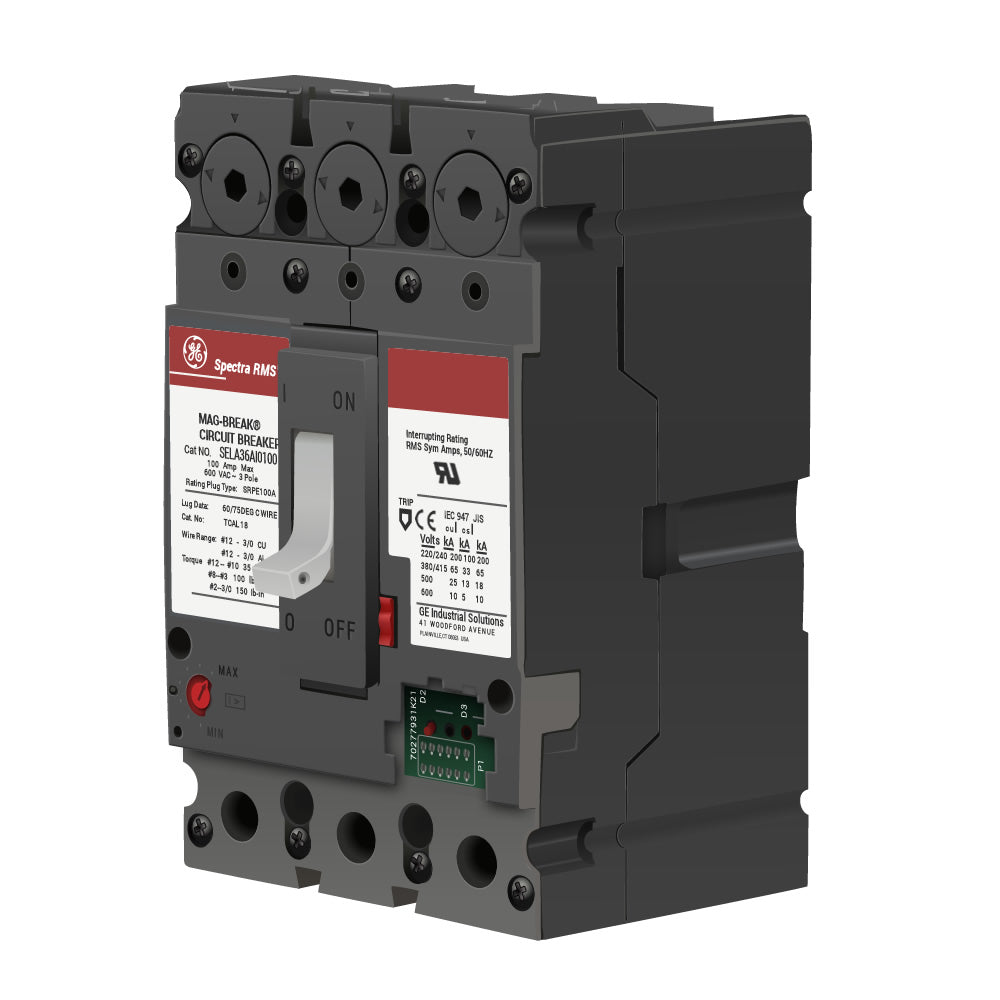

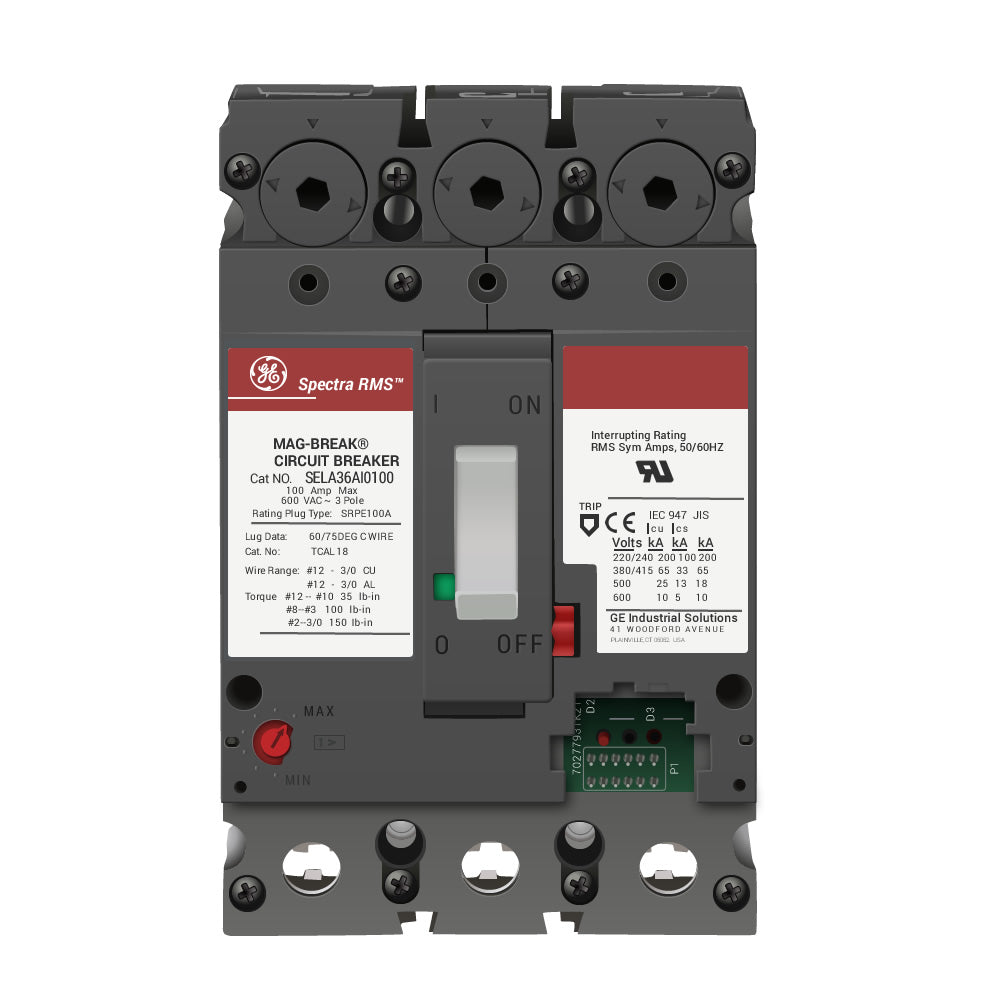

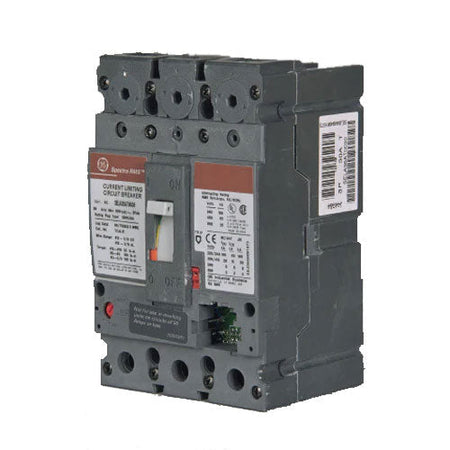

GE SELA36AI0100 Molded Case Circuit Breaker – 100A – 3-Pole – 600V – 65kA @ 480V – Bolt-On – Spectra Series SELA

The GE SELA36AI0100 is a 100A, 3-pole molded case circuit breaker from the GE Spectra Series, Type SELA. It is designed for compatible electrical distribution and motor circuit protection applications and features high interrupting capacity, current-limiting construction, and bolt-on mounting.

The breaker uses Mag-Break MCP technology with instantaneous (I) protection only, providing magnetic-only motor circuit protection rather than thermal-magnetic protection. It has an adjustable magnetic range of 11–90A and is suitable for reverse-fed applications. Lugs are not included.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Catalog No.: SELA36AI0100
• Product Family: Spectra Series
• Series: Spectra
• Type: SELA
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High Interrupting
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Only
• Trip Technology: Mag-Break MCP
• Magnetic Range: 11–90A
• Mounting Type: Bolt-On
• Current Limiting: Yes
• Reverse Feed: Suitable for Reverse-Fed Applications
• Terminal/Lug Configuration: Lugs Not Included
• Application: Motor Circuit Protection and Electrical Distribution
• Brand: GE
• Authenticity: Authentic General Electric Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SELA36AI0100
• Catalog Number: SELA36AI0100
• Model: SELA36AI0100
• Product Family: GE Spectra Series
• Series: Spectra
• Type: SELA
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Trip Type: Mag-Break MCP
• Trip Function: Instantaneous Only
• upc:783164211542

Compatibility:

Designed for use with compatible GE Spectra Series Type SELA electrical distribution equipment that accepts bolt-on molded case circuit breakers. The SELA36AI0100 provides 100A, 3-pole magnetic-only motor circuit protection with instantaneous protection and a magnetic range of 11–90A.

The breaker is suitable for reverse-fed applications and is supplied without lugs. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, motor application, magnetic trip requirements, terminal/lug requirements, and installation instructions before installation.

Certifications:

• UL Listed
• Spectra Series Type SELA
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Current Limiting
• Bolt-On Mounting
• Mag-Break MCP
• Instantaneous Protection Only
• Magnetic-Only Protection
• Reverse-Feed Suitable
• Lugs Not Included
• Genuine GE Product
