GE SELA36AT0030 Molded Case Circuit Breaker – 30A – Configuration Not Specified – Voltage Not Specified – Adjustable Instantaneous – Mounting Not Specified – Spectra RMS Series

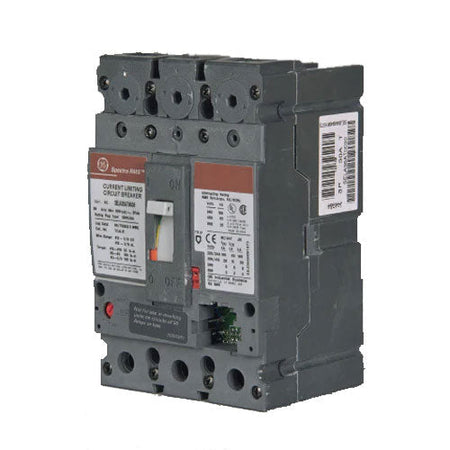

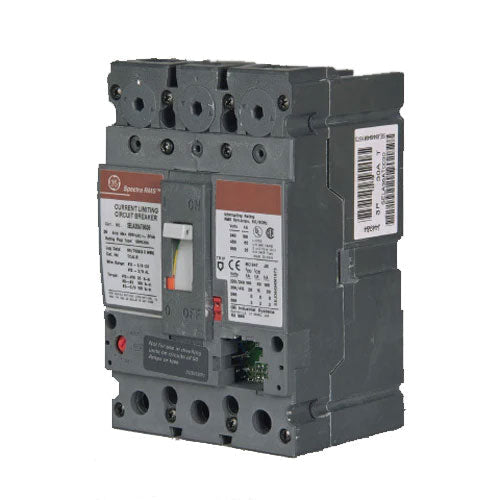

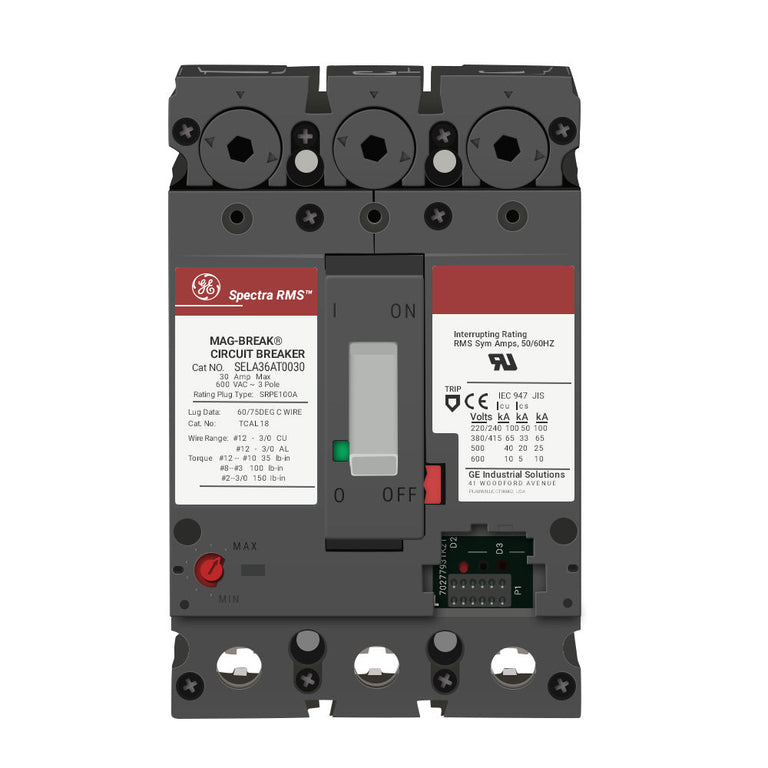

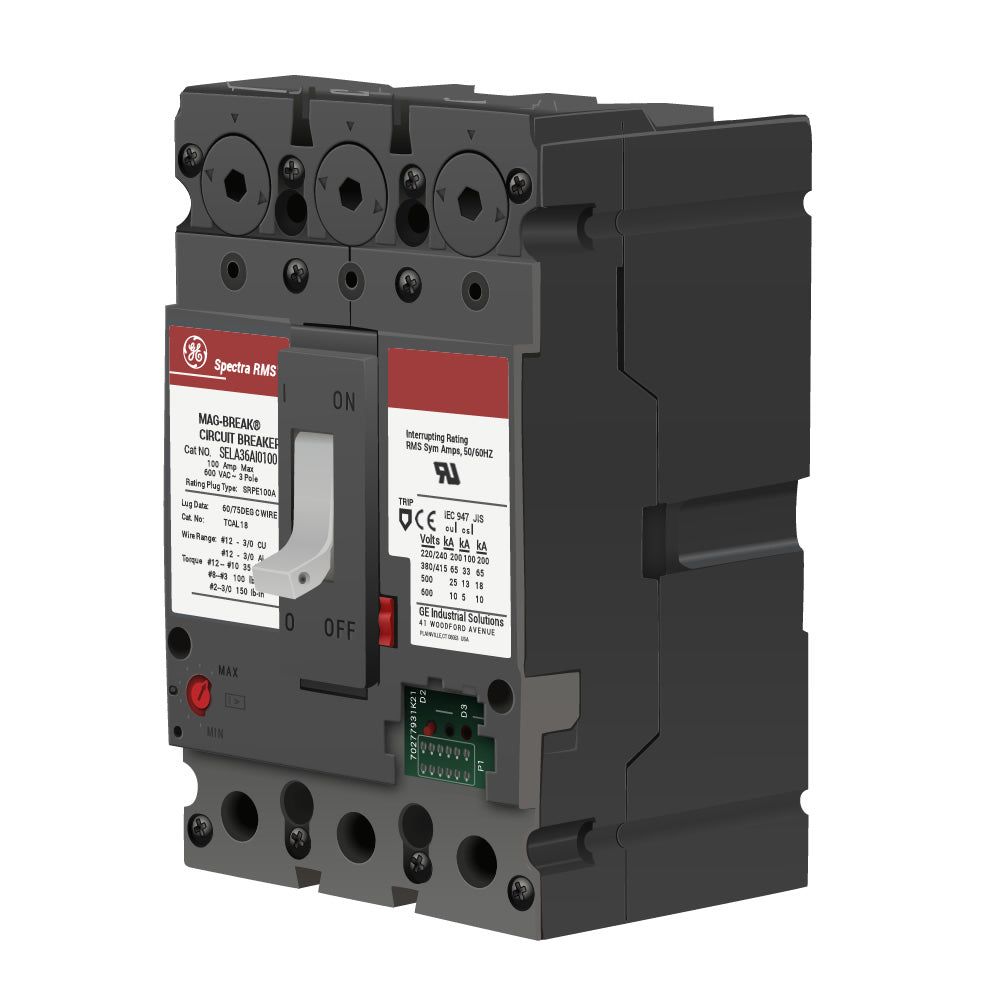

The GE SELA36AT0030 is a Spectra RMS molded case circuit breaker featuring a digital, solid-state RMS-sensing trip system. The Spectra RMS breaker family uses digital sampling to determine the RMS value of both sinusoidal and non-sinusoidal currents.

The trip system incorporates field-installable, front-mounted rating plugs to establish or change the breaker ampere rating. Adjustable instantaneous protection with tracking short-time is standard across the Spectra RMS frames.

Specifications:

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Catalog No.: SELA36AT0030
• Product Family: Spectra RMS
• Frame Family: SE150, SF250, SG600, SK1200
• Trip System: Digital Solid-State RMS Sensing
• Rating Plug: Field-Installable, Front-Mounted
• Trip Rating: 30A
• Instantaneous Protection: Adjustable
• Short-Time Protection: Tracking Short-Time
• Current Sensing: RMS Digital Sampling
• Current Waveforms: Sinusoidal and Non-Sinusoidal
• Number of Poles: Not Specified
• Voltage Rating: Not Specified
• Mounting Type: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SELA36AT0030
• Catalog Number: SELA36AT0030
• Product Family: GE Spectra RMS
• Brand: General Electric
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Model: SELA36AT0030
• Rating Plug: 30A
• upc:783164227062

Compatibility:

Designed for use within compatible GE Spectra RMS molded case circuit breaker systems, including the SE150, SF250, SG600, and SK1200 frame families as applicable. The breaker uses a digital solid-state RMS sensing trip system with a front-mounted, field-installable rating plug.

Always verify the specific breaker frame, panelboard or switchboard, voltage rating, pole configuration, mounting arrangement, rating plug requirements, and interrupting rating before installation.

Certifications:

• GE Spectra RMS Product Family
• Digital Solid-State RMS Sensing
• Field-Installable Rating Plug
• Adjustable Instantaneous Protection
• Tracking Short-Time Protection
