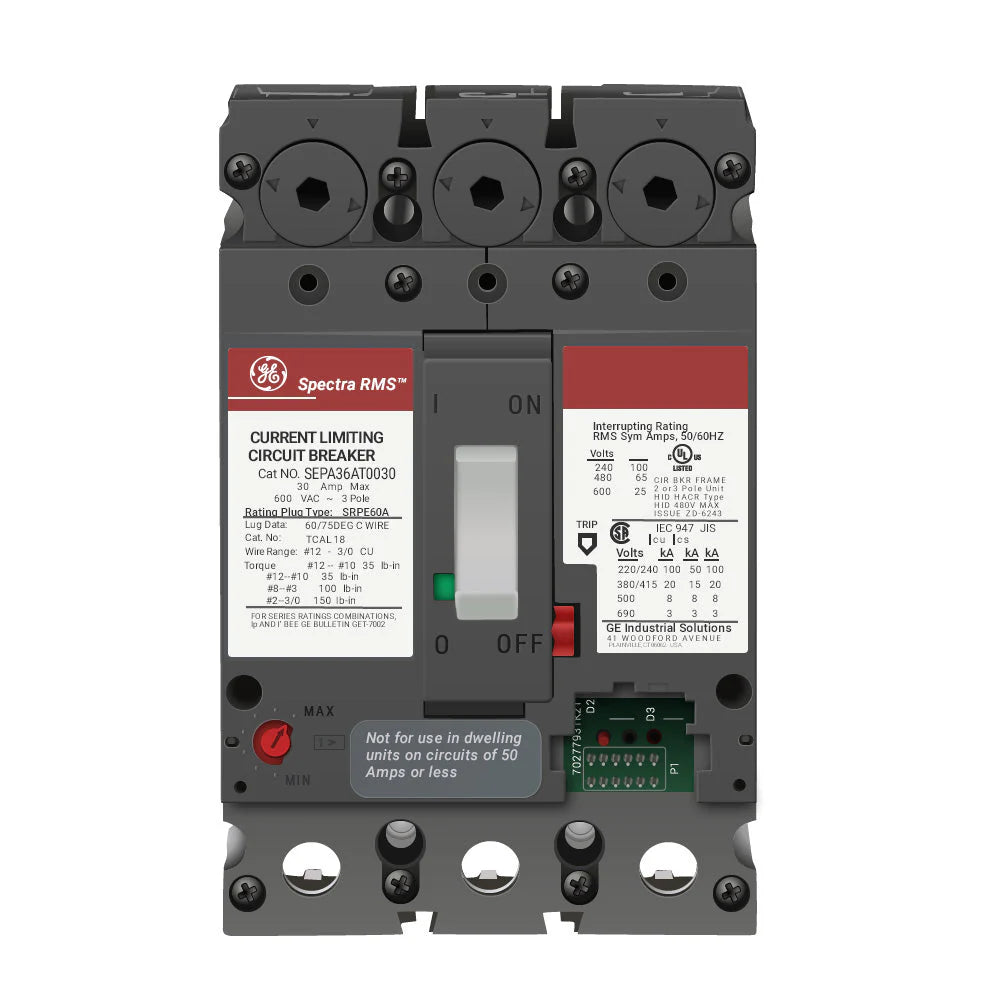

GE SEPA36AT0030 30 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 100 kA@480 V – Solid-State Electronic – Spectra Series

The GE SEPA36AT0030 is a 30 Amp, 3-pole molded case circuit breaker from the General Electric Spectra Series, Type SEPA. It is rated for 600 V with a 100 kA interrupting capacity at 480 V and features current-limiting protection. The breaker is designed for bolt-on mounting and is suitable for reverse-fed applications. It includes an interchangeable RMS electronic trip unit with LSI (Long-Time, Short-Time and Instantaneous) protection functions.

Specifications

• Manufacturer: General Electric
• Brand: GE
• Product Type: Molded Case Circuit Breaker
• Series: Spectra Series
• Type: SEPA
• Catalog Number / MPN: SEPA36AT0030
• Primary Rating: 30 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 100 kA @ 480 V
• Interrupting Capacity: Very High
• Current Limiting: Yes
• Trip Type: Solid-State Electronic
• Trip Unit: Interchangeable RMS Trip Unit
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• Connection / Mounting: Bolt-On
• Application: Suitable for Reverse-Fed Applications
• Certification: UL Listed

Part Numbers & Identification

• Manufacturer: General Electric
• Brand: GE
• Catalog Number: SEPA36AT0030
• Series: Spectra Series
• Type: SEPA
• Current Rating: 30 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Trip Unit: Interchangeable RMS
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• Connection: Bolt-On
• UPC: 783164227079

Compatibility

The GE SEPA36AT0030 is designed for compatible GE Spectra Series Type SEPA molded case circuit breaker applications. It is suitable for reverse-fed applications as specified.

Certifications

• UL Listed
