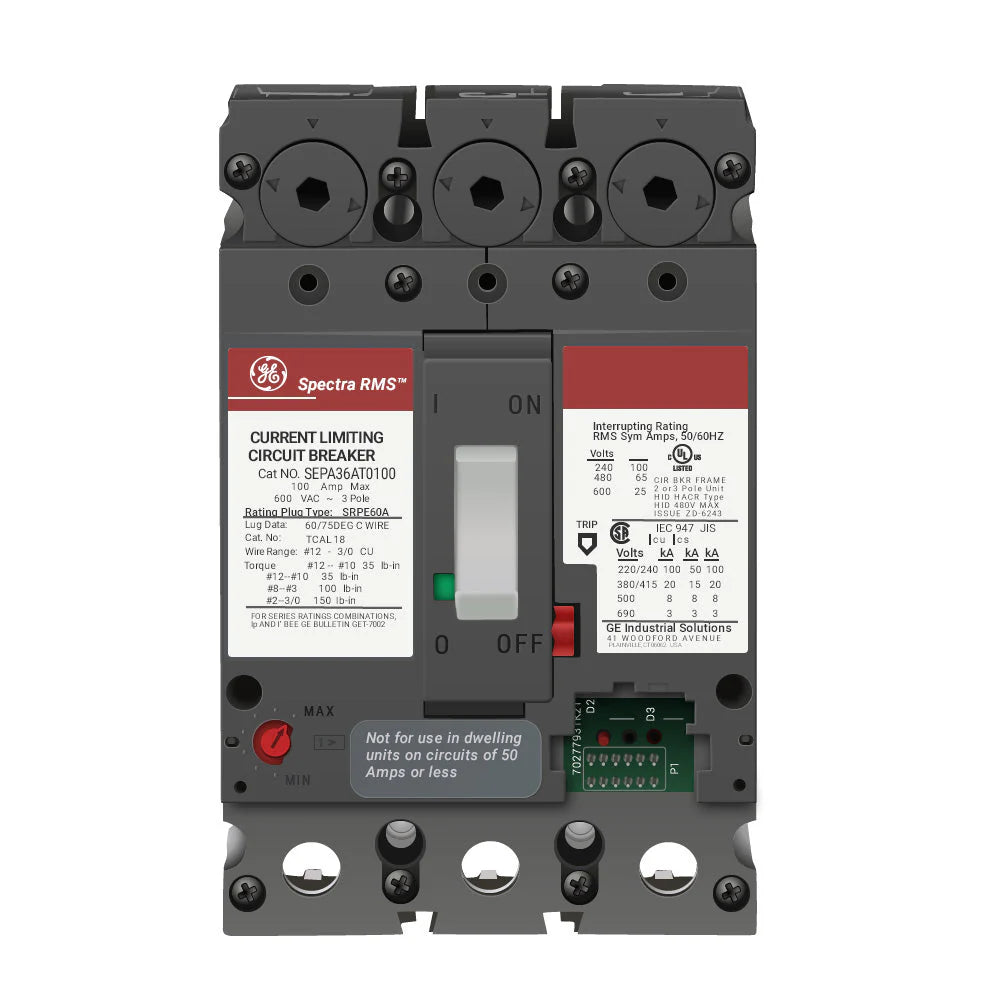

GE SEPA36AT0100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – Bolt-On – Spectra Series

The GE SEPA36AT0100 is a 100A, 3-pole, 3-phase molded case circuit breaker from the GE Spectra Series Type SEPA. It features solid-state electronic protection with an interchangeable RMS trip unit providing Long-Time, Short-Time, and Instantaneous (LSI) trip functions.

The breaker is rated for 600V and provides a very high interrupting rating of 100kA at 480V. It features current-limiting construction, uses a bolt-on mounting configuration, and is suitable for reverse-fed applications. Lugs are not included. The breaker is UL Listed.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Spectra Series
• Series: Spectra
• Type: SEPA
• Catalog No.: SEPA36AT0100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Interrupting Capacity: Very High
• Protection Type: Solid-State Electronic
• Trip Unit: Interchangeable RMS Trip Unit
• Trip Functions: Long-Time, Short-Time and Instantaneous (LSI)
• Current Limiting: Current Limiting
• Mounting Type: Bolt-On
• Reverse Feed: Suitable for Reverse-Fed Applications
• Lugs: Not Included
• Application: Electrical Distribution and Overcurrent Protection
• Brand: General Electric (GE)

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SEPA36AT0100
• Catalog Number: SEPA36AT0100
• Model: SEPA36AT0100
• Product Family: GE Spectra Series Circuit Breakers
• Series: Spectra
• Type: SEPA
• Brand: General Electric (GE)
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• Trip Configuration: Interchangeable RMS Trip Unit with LSI
• UPC:783164211504

Compatibility:

Designed for use with compatible GE Spectra Series electrical distribution equipment that accepts SEPA Series molded case circuit breakers. The SEPA36AT0100 provides 100A, 3-pole electronic protection for compatible 600V electrical distribution applications.

The breaker features a 100kA interrupting rating at 480V, current-limiting construction, an interchangeable RMS trip unit with LSI functions, and bolt-on mounting. It is suitable for reverse-fed applications and is supplied without lugs. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, trip-unit compatibility, lug selection, mounting arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• GE Spectra Series
• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Very High Interrupting Capacity
• Current Limiting
• Solid-State Electronic Protection
• Interchangeable RMS Trip Unit
• Long-Time, Short-Time and Instantaneous (LSI) Trip Functions
• Bolt-On Mounting
• Suitable for Reverse-Fed Applications
• Lugs Not Included
