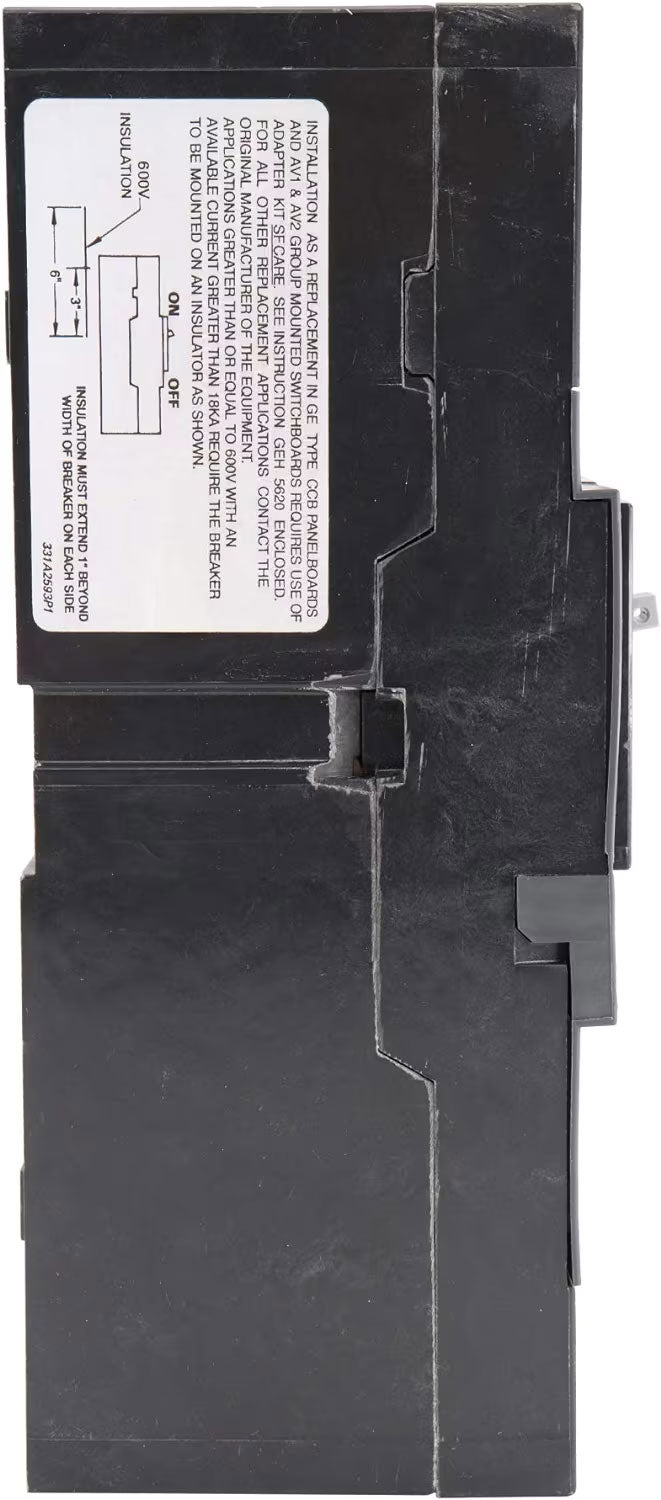

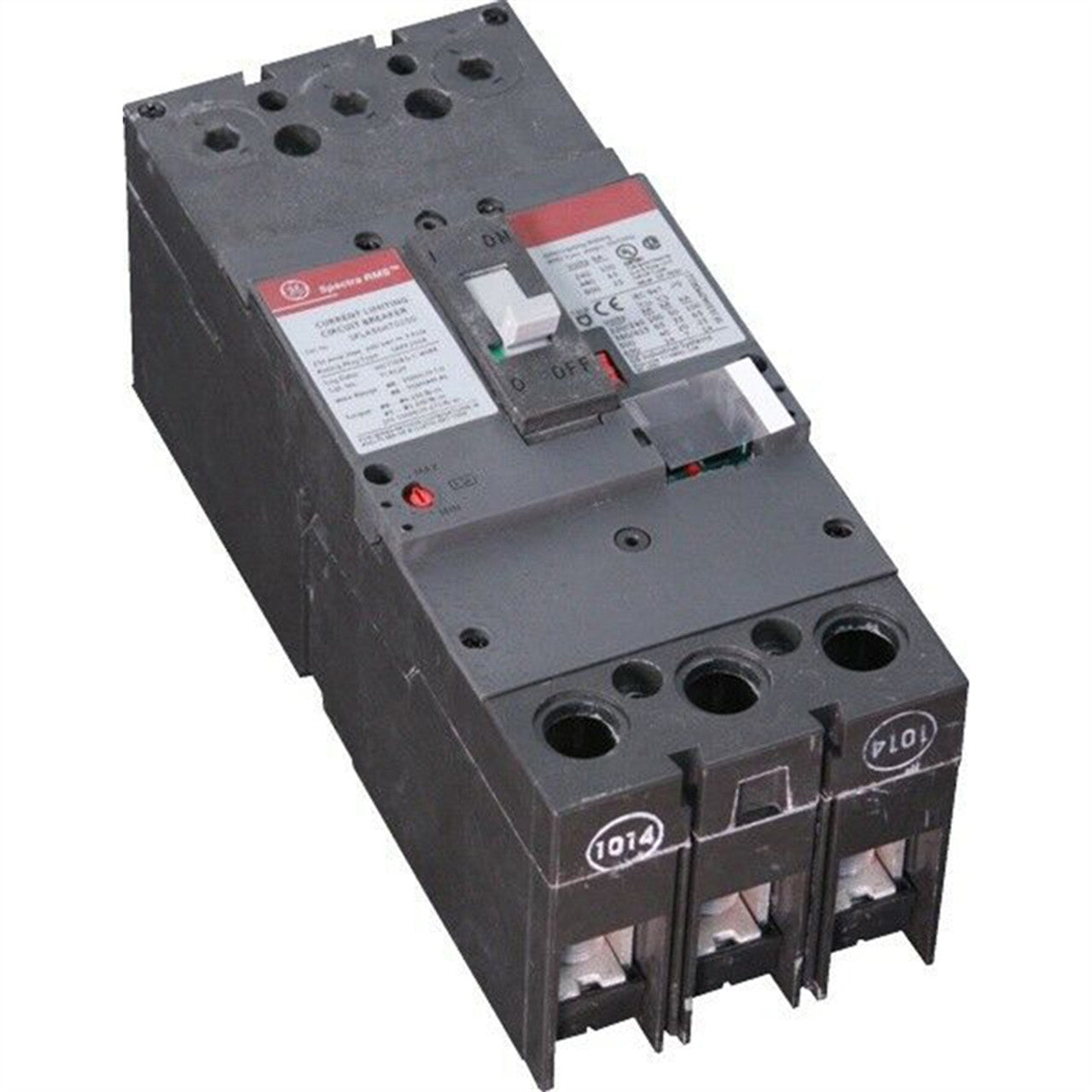

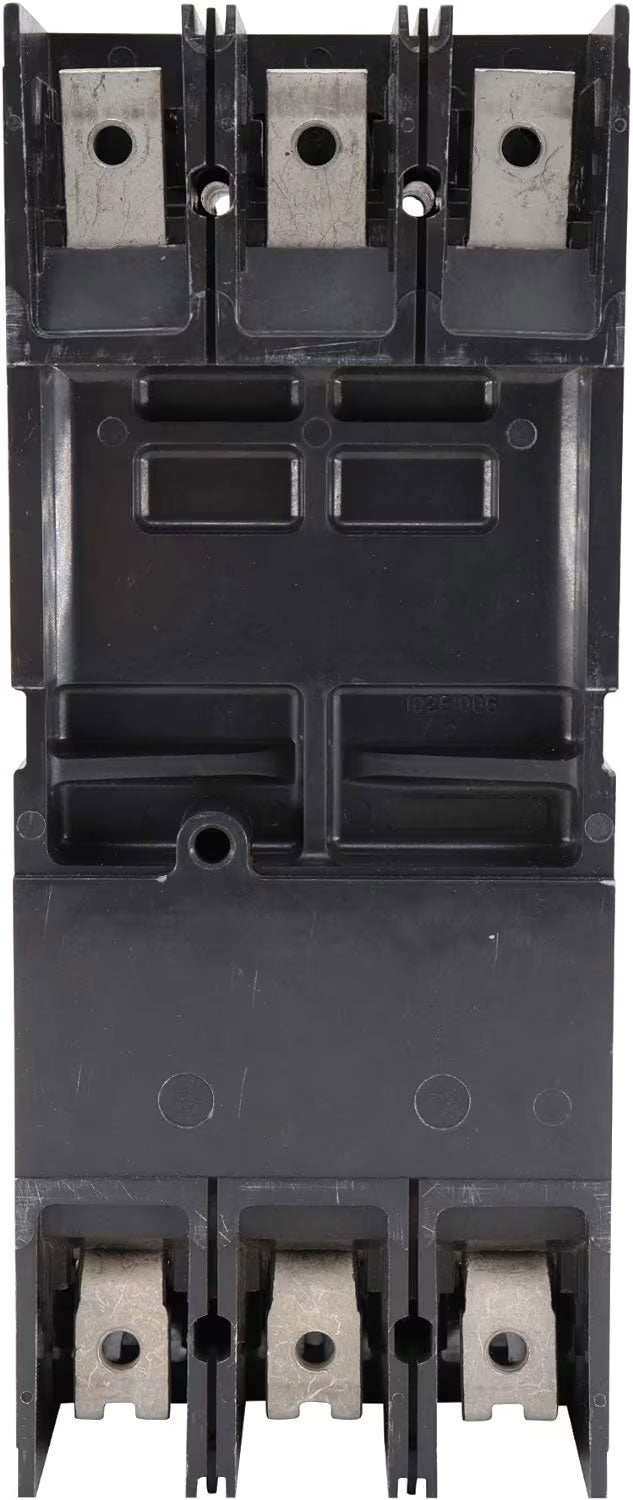

GE SFLA36AI0250 Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Spectra SFLA Series

The GE SFLA36AI0250 is a 250A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the GE Spectra Series Type SFLA. It features magnetic-only, instantaneous protection and a high interrupting capacity for compatible motor circuit protection applications.

The SFLA36AI0250 is rated for 600V and provides a 65kA interrupting rating at 480V. It features a current-limiting design, bolt-on mounting, and a magnetic adjustment range of 205–2500A. The breaker includes load-side lug terminals and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Name: Mag-Break Motor Circuit Protector
• Product Family: Spectra Series
• Series: SFLA
• Type: SFLA
• Catalog No.: SFLA36AI0250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Protection Only
• Current Limiting: Current Limiting
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Magnetic Range: 205–2500A
• Application: Motor Circuit Protection
• Reverse Feed: Suitable for Reverse-Fed Applications
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SFLA36AI0250
• Catalog Number: SFLA36AI0250
• Model: SFLA36AI0250
• Product Family: GE Spectra Series
• Series: SFLA
• Type: SFLA
• Brand: General Electric
• Manufacturer: GE
• Product Type: Mag-Break Motor Circuit Protector
• Breaker Configuration: 3-Pole, 250A
• Trip Configuration: Instantaneous / Magnetic Only
• UPC:
  783164211610

Compatibility:

Designed for use with compatible GE Spectra Series electrical distribution and motor-control equipment that accepts SFLA Type Mag-Break motor circuit protectors with bolt-on mounting.

The SFLA36AI0250 provides 250A magnetic-only motor circuit protection with instantaneous operation, a 205–2500A magnetic range, and a 65kA interrupting rating at 480V. It is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker/MCP type, motor application, system voltage, available fault current, pole configuration, magnetic trip range, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
