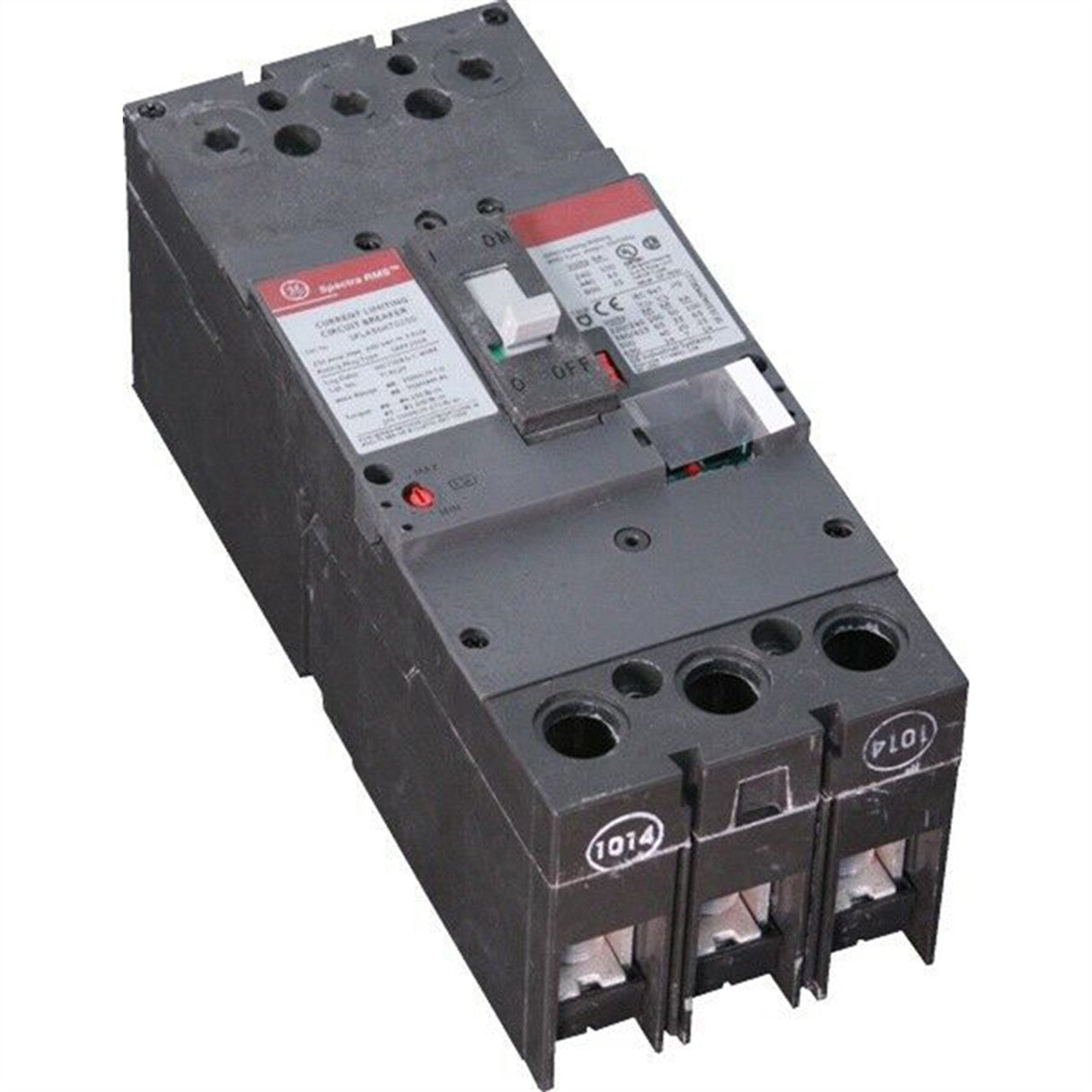

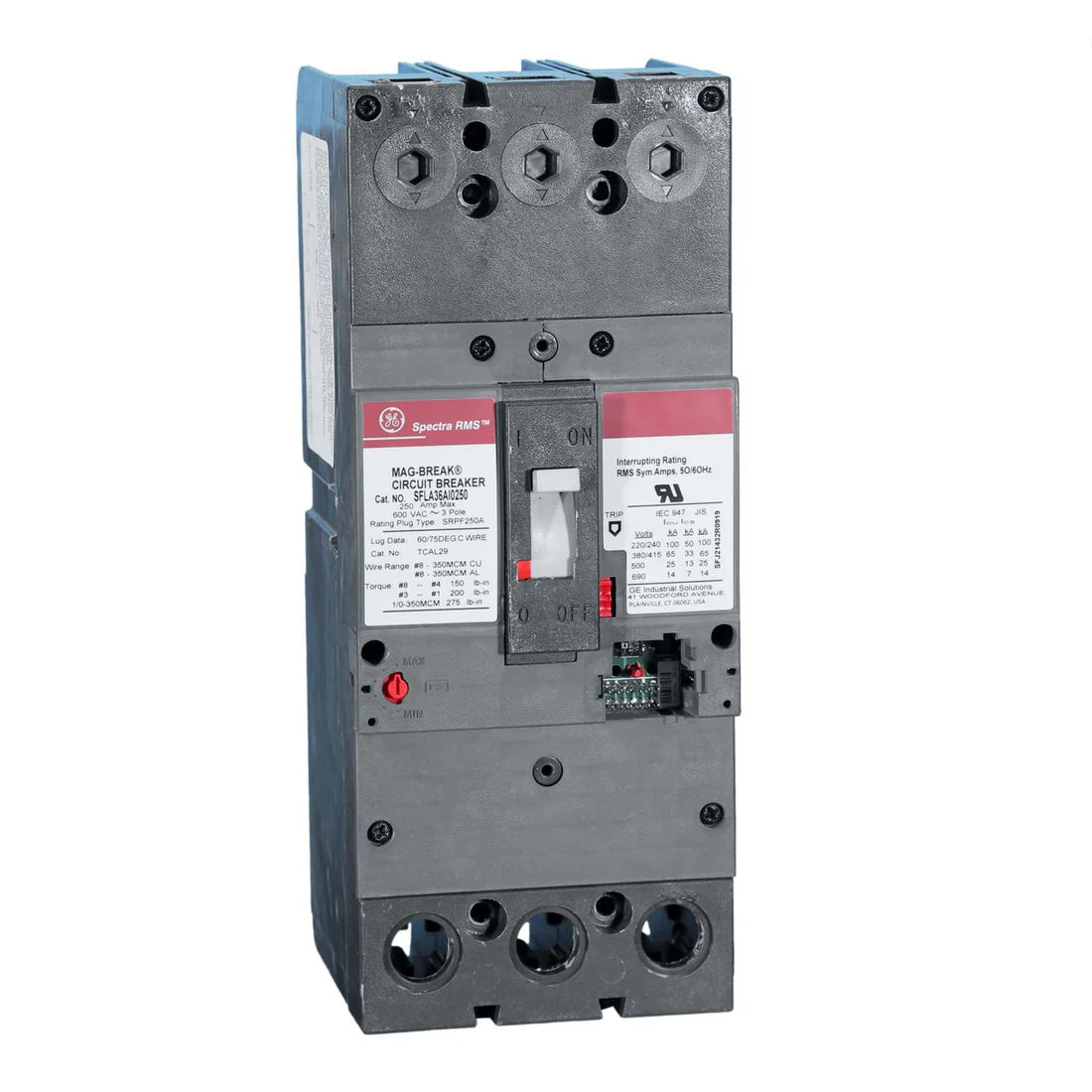

GE SFLA36AT0250 Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V AC – 65kA @ 480V – Bolt-On – Spectra RMS Series

The GE SFLA36AT0250 is a 250A, 3-pole, 3-phase molded case circuit breaker from the GE Spectra™ RMS Series, built on the SF250 frame. It features a solid-state electronic LSI trip unit providing Long-Time, Short-Time, and Instantaneous protection for compatible commercial and industrial electrical distribution applications.

The breaker is rated for systems up to 600VAC and provides interrupting ratings up to 65kA at 480VAC and 25kA at 600VAC. It uses a bolt-on mounting configuration, supports compatible lug connections, and is suitable for reverse-fed applications. The breaker also features a field-replaceable rating plug design for configuring the continuous current rating.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Electronic Trip Molded Case Circuit Breaker
• Product Family: Spectra™ RMS
• Series: Spectra RMS
• Frame: SF250
• Catalog No.: SFLA36AT0250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: Up to 600VAC
• Frequency: 50/60 Hz
• Trip Unit: Solid-State Electronic
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Interrupting Rating: 100kA @ 120VAC; 100kA @ 120/240VAC; 100kA @ 240VAC; 65kA @ 277VAC; 65kA @ 480VAC; 25kA @ 600VAC
• Mounting Type: Bolt-On
• Connection Type: Lug
• Compatible Lug Kit: TCAL29
• Continuous Current Rating: Standard
• Reverse Feed: Suitable
• Current Metering: No
• Ground Fault Protection: No
• Rating Plug: Field-Replaceable
• Application: Commercial and Industrial Electrical Distribution
• Standards: UL Listed, CSA Certified
• HACR Rating: HACR Rated
• Weight: Approximately 10 lbs

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SFLA36AT0250
• Catalog Number: SFLA36AT0250
• Model: SFLA36AT0250
• Product Family: GE Spectra RMS Molded Case Circuit Breakers
• Series: Spectra RMS
• Frame: SF250
• Brand: GE
• Manufacturer: General Electric
• Product Type: Electronic Trip Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• Trip Configuration: Electronic Solid-State LSI
• UPC / GTIN: 783164211597

Compatibility:

Designed for use with compatible GE Spectra RMS SF250 frame electrical distribution equipment, including suitable switchboard, panelboard, OEM, and industrial power-distribution applications.

The SFLA36AT0250 is identified with compatible SFLA36AT0200, SFLA36AT0225, SFLA36AT0250, SFLA36AT0150, and SFLA36AT0175 models within the SF250 Spectra RMS family when the trip functions, mounting, voltage, interrupting rating, and application requirements match.

The breaker supports TCAL29 lug kit compatibility and is suitable for reverse-fed applications. Always verify the exact equipment model, frame, trip configuration, rating plug, voltage, available fault current, interrupting rating, lug arrangement, and installation requirements before substitution or installation.

Certifications:

• UL Listed
• CSA Certified
• HACR Rated
• Spectra™ RMS Series
• SF250 Frame
• 250A Rated
• 3-Pole / 3-Phase
• 600VAC Maximum Rating
• Electronic Solid-State LSI Trip
• Long-Time Protection
• Short-Time Protection
• Instantaneous Protection
• Bolt-On Mounting
• 65kA @ 480VAC Interrupting Rating
• Suitable for Reverse Feed
• Field-Replaceable Rating Plug
