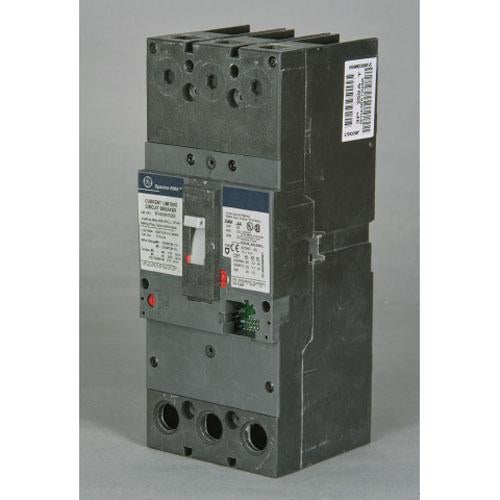

GE SFPA36AT0250 Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – Bolt-On – Spectra Series SFPA

The GE SFPA36AT0250 is a 250A, 3-pole, 3-phase molded case circuit breaker from the General Electric Spectra Series Type SFPA. It features solid-state electronic protection, current-limiting construction, and a very high interrupting capacity.

The breaker is rated for 600V and provides a 100kA interrupting rating at 480V. It uses a bolt-on mounting configuration and includes an interchangeable RMS trip unit with LSI — Long-Time, Short-Time, and Instantaneous trip functions. The breaker is suitable for reverse-fed applications and is supplied without lugs.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Spectra Series
• Series: Spectra
• Type: SFPA
• Catalog No.: SFPA36AT0250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Interrupting Capacity: Very High
• Protection Type: Solid-State Electronic
• Current Limiting: Current Limiting
• Trip Unit: Interchangeable RMS Trip Unit
• Trip Functions: LSI — Long-Time, Short-Time, and Instantaneous
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Lugs: Not Included
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SFPA36AT0250
• Catalog Number: SFPA36AT0250
• Model: SFPA36AT0250
• Product Family: GE Spectra Series Circuit Breakers
• Series: Spectra
• Type: SFPA
• Brand: General Electric (GE)
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• Trip Configuration: Interchangeable RMS Trip Unit with LSI Functions
• UPC:783164211603

Compatibility:

Designed for use with compatible GE Spectra Series electrical distribution equipment that accepts SFPA Series molded case circuit breakers. The SFPA36AT0250 provides 250A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, an interchangeable RMS trip unit with LSI functions, bolt-on mounting, and is suitable for reverse-fed applications. Lugs are not included. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, trip-unit compatibility, lug requirements, pole configuration, and mounting arrangement before installation.

Certifications:

• UL Listed
• Spectra Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Very High Interrupting Capacity
• Current Limiting
• Solid-State Electronic Protection
• Interchangeable RMS Trip Unit
• LSI — Long-Time, Short-Time, and Instantaneous Trip Functions
• Bolt-On Mounting
• Suitable for Reverse-Fed Applications
• Lugs Not Included
