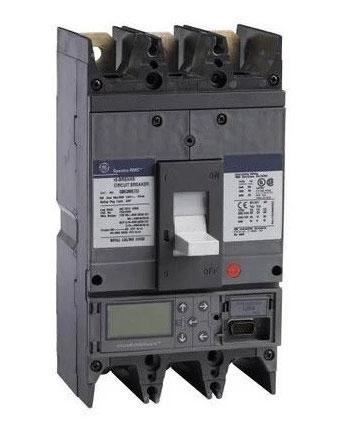

GE SGHC3401L4XX Molded Case Circuit Breaker – 150A – 3-Pole / 3-Phase – 480V – 35kA @ 480V – Bolt-On – Spectra SGHC Series

The GE SGHC3401L4XX is a 150A, 3-pole, 3-phase solid-state electronic molded case circuit breaker from the GE Spectra Series Type SGHC. It features a bolt-on mounting configuration and is designed for compatible electrical distribution applications.

The breaker has a maximum voltage rating of 480V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It is supplied as a complete breaker with a microEntelliGuard™ trip unit providing Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG) trip functions, along with basic metering and communication features.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Spectra Series
• Series: SGHC
• Type: SGHC
• Catalog No.: SGHC3401L4XX
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Maximum Voltage Rating: 480V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Solid-State Electronic
• Trip Unit: microEntelliGuard™
• Trip Functions: Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG)
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Metering: Basic Metering Features
• Communication: Basic Communication Features
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SGHC3401L4XX
• Catalog Number: SGHC3401L4XX
• Model: SGHC3401L4XX
• Product Family: GE Spectra Series Circuit Breakers
• Series: SGHC
• Type: SGHC
• Brand: GE
• Manufacturer: General Electric
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• Trip Unit: microEntelliGuard™
• Trip Configuration: Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG)

Compatibility:

Designed for use with compatible GE Spectra Series Type SGHC electrical distribution equipment that accepts Spectra Series solid-state electronic molded case circuit breakers. The SGHC3401L4XX provides 150A, 3-pole protection for compatible 480V electrical distribution applications.

The breaker uses a bolt-on mounting configuration and is supplied complete with a microEntelliGuard™ trip unit providing LSIG protection, basic metering, and communication features. Always verify the specific panelboard or switchboard model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, mounting arrangement, and communication requirements before installation.

Certifications:

• GE Spectra Series
• SGHC Series
• 150A Rated
• 3-Pole / 3-Phase
• 480V Maximum Voltage Rating
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Solid-State Electronic Protection
• microEntelliGuard™ Trip Unit
• Long-Time, Short-Time, Instantaneous, and Ground-Fault (LSIG) Protection
• Basic Metering and Communication Features
• Bolt-On Mounting
• Complete Breaker
