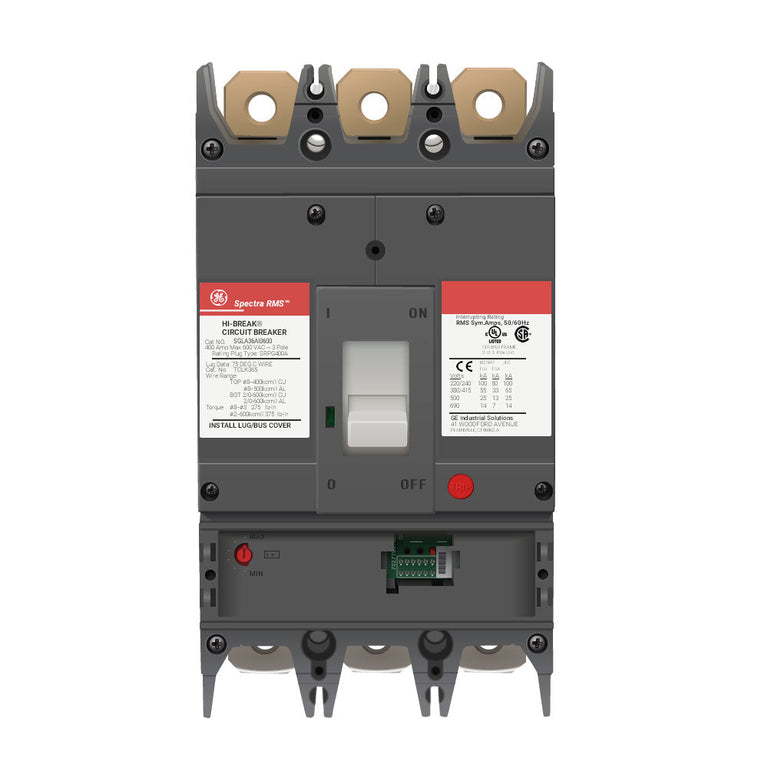

GE SGLA36AI0600 Molded Case Motor Circuit Protector – 600A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Spectra Series

The GE SGLA36AI0600 is a 600A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the General Electric Spectra Series Type SGLA. It features magnetic-only protection with Instantaneous (I) protection and is designed for compatible motor circuit protection applications.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It features current-limiting construction, bolt-on mounting, and a load-side lug terminal. The magnetic trip range is 380–4080A.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Motor Circuit Protector
• Product Family: Spectra Series
• Series: Spectra
• Type: SGLA
• Catalog No.: SGLA36AI0600
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Protection Only
• Trip Type: Not specified
• Current Limiting: Current Limiting
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminal
• Magnetic Range: 380–4080A
• Motor Circuit Protection: Mag-Break MCP
• Application: Motor Circuit Protection
• Reverse Feed: Suitable for Reverse-Fed Applications
• Brand: General Electric (GE)

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SGLA36AI0600
• Catalog Number: SGLA36AI0600
• Model: SGLA36AI0600
• Product Family: GE Spectra Series Circuit Breakers
• Series: Spectra
• Type: SGLA
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Motor Circuit Protector
• Breaker Configuration: 3-Pole, 600A
• Trip Configuration: Instantaneous Only
• MCP Type: Mag-Break
• UPC:783164211719

Compatibility:

Designed for use with compatible GE Spectra Series electrical distribution and motor-control equipment that accepts SGLA Series molded case motor circuit protectors. The SGLA36AI0600 provides 600A, 3-pole magnetic-only motor circuit protection for compatible 600V applications.

The breaker features a 380–4080A magnetic range, bolt-on mounting, current-limiting construction, and a load-side lug terminal. It is also identified as suitable for reverse-fed applications. Always verify the specific panelboard or electrical equipment model, motor application, system voltage, available fault current, magnetic trip requirements, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• GE Spectra Series
• SGLA Type
• 600A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Current Limiting
• Magnetic-Only Protection
• Instantaneous (I) Protection
• Bolt-On Mounting
• 380–4080A Magnetic Range
• Mag-Break MCP
• Suitable for Reverse-Fed Applications
