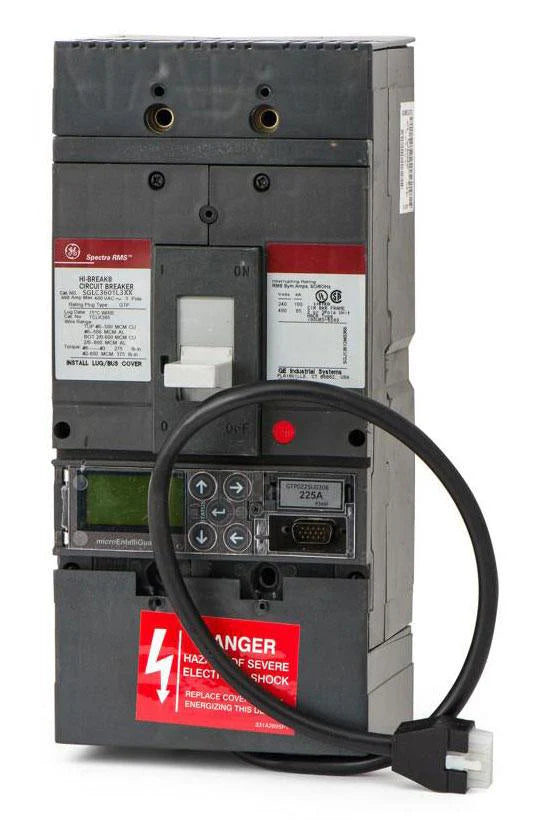

GE SGLC3601L3XX Molded Case Circuit Breaker – 150A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Mounting Not Specified – Spectra SGLC Series

The GE SGLC3601L3XX is a 150A, 3-pole, 3-phase solid-state electronic molded case circuit breaker from the GE Spectra Series Type SGLC. It is designed for compatible electrical distribution applications and provides advanced system protection through a microEntelliGuard™ trip unit.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It features Long-Time, Short-Time, and Instantaneous (LSI) trip functions along with basic metering and communication features. The breaker is UL Listed, suitable for reverse-fed applications, and supplied as a complete breaker with the microEntelliGuard™ trip unit.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Spectra Series
• Series: SGLC
• Type: SGLC
• Catalog No.: SGLC3601L3XX
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: microEntelliGuard™
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Metering: Basic Metering Features
• Communication: Basic Communication Features
• Mounting Type: Not specified
• Connection Type: Not specified
• Breaker Configuration: Complete Breaker
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SGLC3601L3XX
• Catalog Number: SGLC3601L3XX
• Model: SGLC3601L3XX
• Product Family: GE Spectra Series Circuit Breakers
• Series: SGLC
• Type: SGLC
• Brand: GE
• Manufacturer: General Electric
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• Trip Unit: microEntelliGuard™
• Trip Configuration: Long-Time, Short-Time, and Instantaneous (LSI)

Compatibility:

Designed for use with compatible GE Spectra Series Type SGLC electrical distribution equipment that accepts Spectra Series solid-state electronic molded case circuit breakers. The SGLC3601L3XX provides 150A, 3-pole protection for compatible 600V electrical distribution applications.

The breaker is supplied complete with a microEntelliGuard™ trip unit, provides LSI protection, and includes basic metering and communication features. It is also suitable for reverse-fed applications as specified. Always verify the specific panelboard or switchboard model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, mounting arrangement, communication requirements, and installation specifications before installation.

Certifications:

• UL Listed
• GE Spectra Series
• SGLC Series
• 150A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• microEntelliGuard™ Trip Unit
• Long-Time, Short-Time, and Instantaneous (LSI) Protection
• Basic Metering and Communication Features
• Suitable for Reverse-Fed Applications
• Complete Breaker
