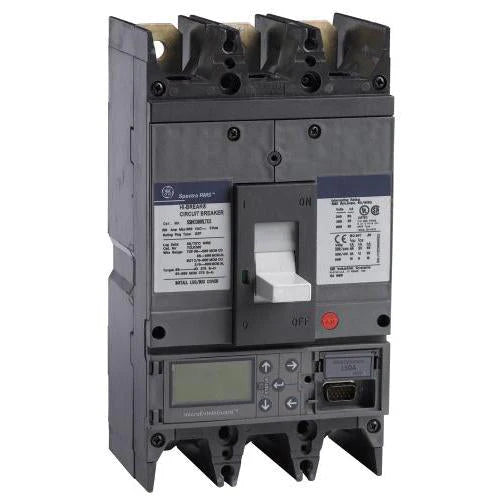

GE SGLC3606L7XX Molded Case Circuit Breaker – 600A – 3-Pole / 3-Phase – 600V – 65kA @ 480V –Spectra Series

The GE SGLC3606L7XX is a 600A, 3-pole, 3-phase solid-state electronic molded case circuit breaker from the GE Spectra Series Type SGLC. It is designed for compatible electrical distribution and overcurrent protection applications.

The SGLC3606L7XX is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It is supplied complete with a microEntelliGuard trip unit featuring LSI-CP configuration, including Long-Time, Short-Time, and Instantaneous (LSI) trip functions, along with basic metering and communication features.

The breaker is also UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Spectra Series
• Series: Spectra
• Type: SGLC
• Catalog No.: SGLC3606L7XX
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: microEntelliGuard
• Trip Configuration: LSI-CP
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Metering / Communication: Basic Metering and Communication Features
• Mounting / Connection: Not specified
• Reverse Feed: Suitable for Reverse-Fed Applications
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): SGLC3606L7XX
• Catalog Number: SGLC3606L7XX
• Model: SGLC3606L7XX
• Product Family: GE Spectra Series Circuit Breakers
• Series: Spectra
• Type: SGLC
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 600A
• Trip Unit: microEntelliGuard
• Trip Configuration: LSI-CP
• UPC:783164301632

Compatibility:

Designed for use with compatible GE Spectra Series Type SGLC electrical distribution equipment that accepts the applicable SGLC molded case circuit breaker configuration. The SGLC3606L7XX provides 600A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker includes a microEntelliGuard LSI-CP trip unit, basic metering and communication features, and is suitable for reverse-fed applications as specified. The available information does not specify the mounting or connection configuration.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit compatibility, mounting arrangement, communication requirements, and installation specifications before installation.

Certifications:

• UL Listed
• GE Spectra Series
• Type SGLC
• 600A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• microEntelliGuard Trip Unit
• LSI-CP Trip Configuration
• Long-Time, Short-Time, and Instantaneous (LSI) Trip Functions
• Basic Metering and Communication Features
• Suitable for Reverse-Fed Applications
• Complete Breaker
