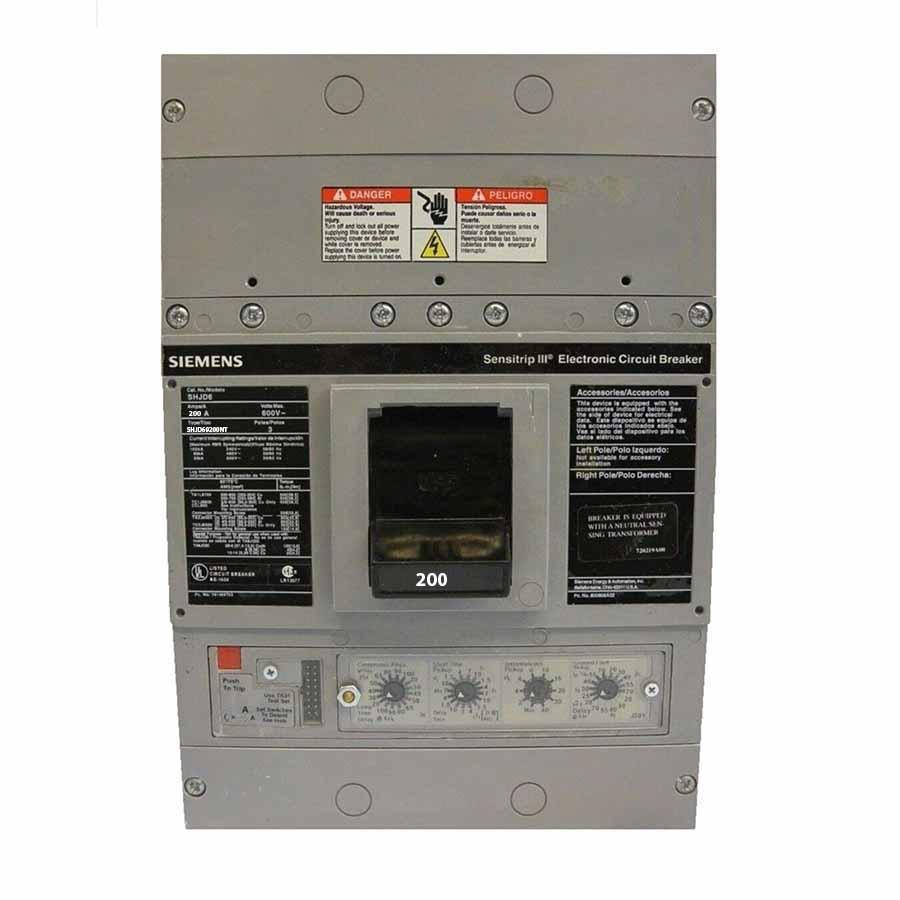

Siemens Sentron SHJD69200NT 200 Amp Molded Case Circuit Breaker – 3 Pole – 600V AC – 65 kA @ 480V – JD Frame

The Siemens SHJD69200NT is a Sentron JD-frame molded case circuit breaker featuring an electronic trip unit (ETU) with Sensitrip functionality. Designed for low-voltage power distribution applications, it provides LSI protection and high interrupting capacity.

Specifications

• Brand: Siemens
• Series: Sentron
• MPN: SHJD69200NT
• Product Type: Molded Case Circuit Breaker
• Frame: JD
• Amperage Rating: 200A
• Poles: 3
• Voltage Rating: 600V AC
• Interrupting Capacity: 65 kA at 480V; 35 kA at 600V
• Interrupting Rating: High
• Trip Unit: Electronic Trip Unit (ETU) with Sensitrip functionality
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• Ambient Temperature: 40°C
• Terminals: Line-side and load-side lugs (TA2J6500)
• Copper Wire Range: 3/0 AWG–500 kcmil
• Aluminum Wire Range: 4/0 AWG–500 kcmil

Part Numbers & Identification

• Manufacturer Part Number: SHJD69200NT
• Lug Part Number: TA2J6500
• UPC:783643217027

Compatibility

Designed for Siemens Sentron JD-frame installations requiring a 200A, three-pole electronic-trip circuit breaker. Suitable for compatible systems using the specified line- and load-side lug configuration.

Certifications

• UL Standard: UL 489
• IEC Standard: IEC 60947-2
