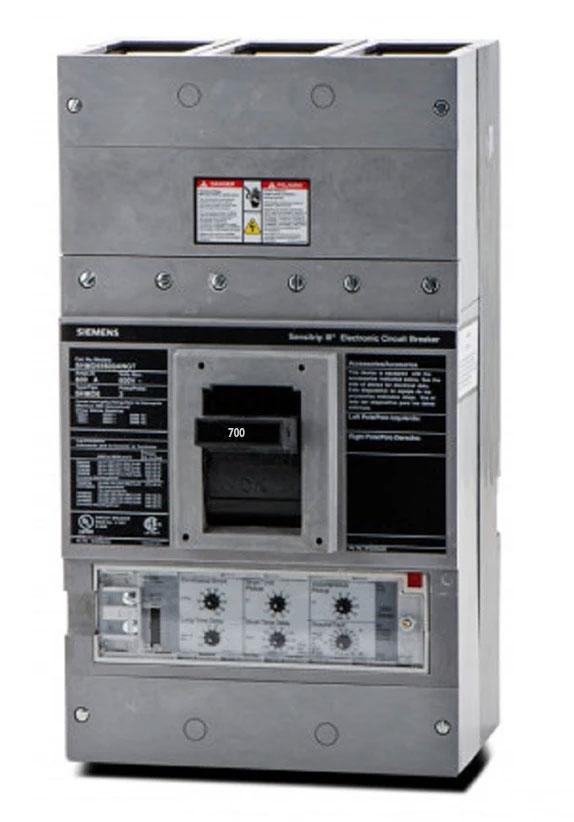

Siemens SHMD69700AG 700 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@480 V – 100 kA@240 V – High Interrupting Capacity – Electronic LIG Trip – Bolt-On – Sentron Series

The Siemens SHMD69700AG is a 700 Amp, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Series, Type SHMD. It is rated for 600 V and provides interrupting ratings of 65 kA at 480 V and 100 kA at 240 V, with high interrupting capacity.

The breaker features a digital solid-state electronic trip system with LIG (Long-Time, Instantaneous, and Ground-Fault) trip functions. This configuration provides overload, short-circuit, and ground-fault protection for electrical distribution applications.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: Sentron
• Type: SHMD
• Catalog Number / MPN: SHMD69700AG
• Primary Rating: 700 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating at 480 V: 65 kA
• Interrupting Rating at 240 V: 100 kA
• Interrupting Capacity: High
• Trip Type: Digital Solid-State Electronic
• Trip Functions: LIG – Long-Time, Instantaneous, and Ground-Fault
• Connection / Mounting: Bolt-On
• Reverse-Connection Suitability: Acceptable for Reverse-Connection Applications
• Protection: Overload, Short-Circuit, and Ground-Fault

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: SHMD69700AG
• Series: Sentron
• Type: SHMD
• Current Rating: 700 A
• Pole Count: 3 Pole
• Phase Configuration: 3 Phase
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Mechanism: Digital Solid-State Electronic
• Trip Functions: LIG – Long-Time, Instantaneous, and Ground-Fault
• Interrupting Capacity Classification: High
• Mounting Type: Bolt-On
• UPC:783643251557

Compatibility

The Siemens SHMD69700AG is intended for compatible Siemens Sentron Series electrical distribution equipment supporting Type SHMD, 700 Amp, 3-pole bolt-on molded case circuit breakers with electronic LIG protection, including acceptable reverse-connection applications.
