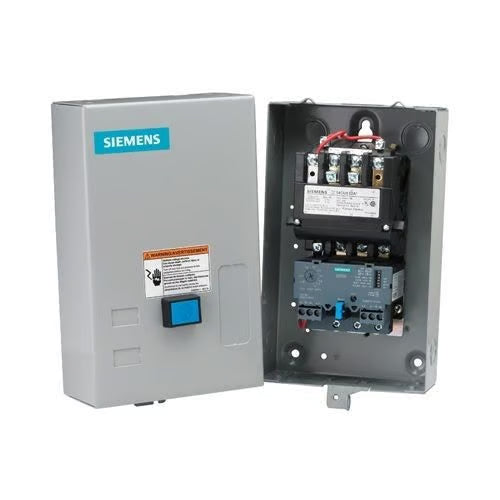

Siemens 14CUD32BA Class 14 Full Voltage Motor Starter – 3-Pole – 18A – NEMA 1/0 Enclosure – 110–120/220–240VAC Coil

The Siemens 14CUD32BA is a Class 14 full-voltage non-reversing motor starter designed for dependable motor control and overload protection in general-purpose indoor applications. Featuring a 3-pole contactor, solid-state overload relay, and NEMA 1/0 enclosure, it provides reliable performance for industrial motor control systems while offering flexible reset options and long operational life.

Electrical Ratings

• Current Rating: 18 Amps
• Voltage Rating: 600 VAC
• Frequency Rating: 60 Hz
• Coil Voltage: 110–120 / 220–240 VAC
• Motor Power: 3 HP

Key Specifications

• Product Type: Full Voltage Motor Starter
• Series: Siemens Class 14
• Configuration: Non-Reversing
• Number of Poles: 3-Pole
• Enclosure Type: NEMA 1/0
• Auxiliary Contacts: 1 NO (Normally Open)

Technical Specifications

• Overload Relay Type: Solid-State
• Overload Setting Range: 5.5 – 22 Amps
• Reset Type: Automatic / Manual / Remote
• Connection Type: Screw Terminal
• Operating Cycles: 10,000,000 Cycles
• Timing: 19–29 ms ON / 10–24 ms OFF
• Power Consumption: 8.6 W
• Operating Temperature: -4°F to 104°F

Dimensions

• Height: 11 in
• Width: 7 in
• Depth: 5 in

Product Data

• Manufacturer: Siemens
• Model Number: 14CUD32BA
• Catalog ID: SIE14CUD32BA
• Series: Class 14 Motor Starters

Standards & Approvals

• UL Listed
• CSA Certified

Applications

• General-purpose motor control
• Indoor industrial installations
• Pumps, fans, compressors, conveyors, and machinery control systems

Features

• Solid-state overload protection for accurate motor protection
• Non-reversing design for standard motor starting applications
• NEMA 1/0 enclosed construction for indoor use
• Multiple reset options including remote reset capability
• Long mechanical life with up to 10 million operating cycles
• Reliable performance in demanding industrial environments
