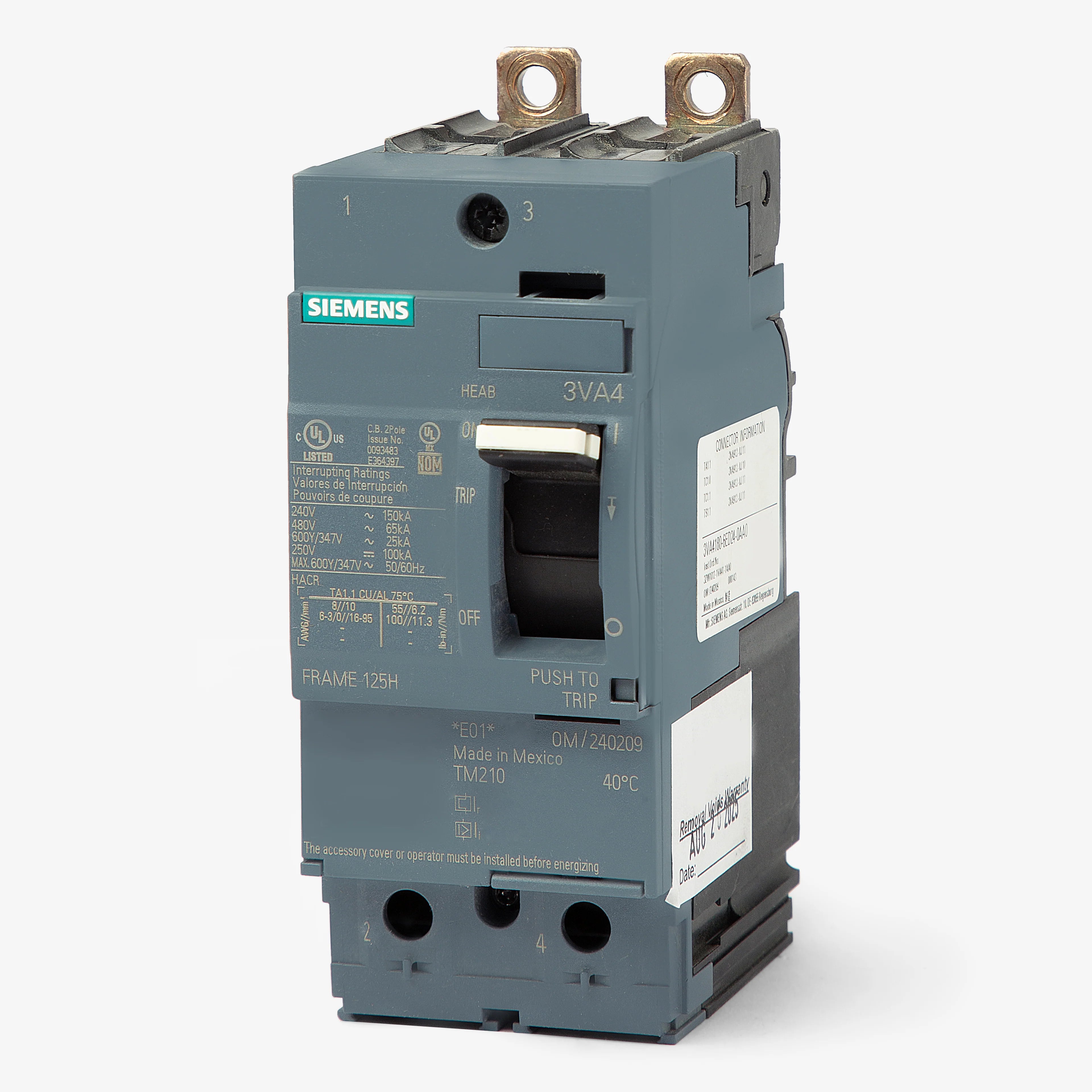

Siemens 3VA4120-5ED24-0AA0 20A 2-Pole Molded Case Circuit Breaker – Bolt-On Mount – 600Y/347VAC Max

In stock
SKU: 3VA4120-5ED24-0AA0 GTIN/UPC: 804766942686
$320.60
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

Engineered for commercial applications, the Siemens 3VA4120-5ED24-0AA0 is a 2-pole, 20A molded case circuit breaker from the SENTRON 3VA4 family. It provides reliable thermal-magnetic protection with fixed LI trip functions. This bolt-on MCCB installs into Siemens P1, P2, and P3 panelboards. It also serves as a modern substitute for legacy MEAB and ED62B020 breakers. Rated 35kAIC at 480V, it features current-limiting capabilities, load side lugs, and supports reverse feed applications.

Voltage and Rating

  • Current Rating: 20 Amps
  • Voltage Rating:
    • 240VAC
    • 480Y/277VAC
    • 480VAC
    • 600Y/347VAC
    • 250VDC

Interrupting Capacity (AIC Rating)

  • 85kA @ 240VAC
  • 35kA @ 480Y/277VAC
  • 35kA @ 480VAC
  • 18kA @ 600Y/347VAC
  • 85kA @ 250VDC

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: 3VA4
  • Number of Poles: 2-Pole
  • Phase: 1 Phase
  • Mounting Style: Bolt-On
  • Terminal Type: Lugs
  • Trip Technology: Thermal Magnetic
  • Trip Function Code: LI
  • Trip Function: Long-Time, Instantaneous
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic

Wiring Specifications

  • Copper Wire Range: 14–8 AWG
  • Aluminum Wire Range: 12–8 AWG
  • Minimum Wire Size: 14 AWG
  • Maximum Wire Size: 8 AWG

Compatibility

  • Siemens P1 Panelboards
  • Siemens P2 Panelboards
  • Siemens P3 Panelboards
  • Siemens Switchboards

Available Options

  • Shunt Trip
  • Auxiliary Switch
  • Undervoltage Release
  • Alarm Switch
  • Padlock Attachment

Included Accessories

  • Load Side Lugs

Standards and Approvals

  • CSA C22.2 No. 5
  • IEC 60947-2
  • UL 489
  • CE Approved
  • CSA Certified
  • UL Listed

Environmental Specifications

  • Operating Temperature Range: -25°C to 70°C

Product Data

  • Manufacturer: Siemens
  • Model Number: 3VA4120-5ED24-0AA0
  • Series: SENTRON 3VA4
  • Brand: Siemens
  • Type Circuit Breakers
  • Vendor Siemens / ITE
  • Brand Siemens
