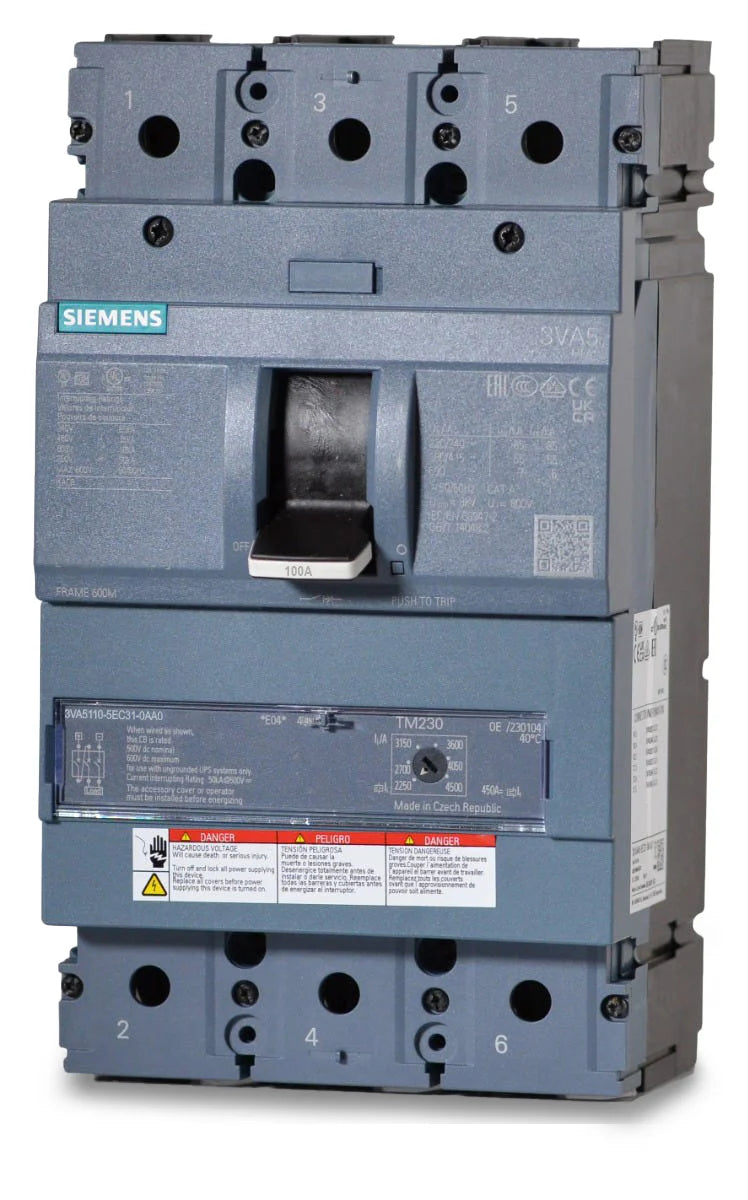

Siemens 3VA5110-5EC31-0AA0 100A 3P Molded Case Circuit Breaker – Panel Mount – 480V AC

The Siemens 3VA5110-5EC31-0AA0 is a 100A, 3-pole molded case circuit breaker from the SENTRON 3VA5 series, designed for commercial and industrial power distribution systems. It features a TM230 thermal-magnetic trip unit with fixed thermal and adjustable magnetic (LI) protection, enabling improved coordination and flexibility for downstream protection.

Built for Siemens P1, P2, and P3 panelboards as well as switchboards and motor control centers, this breaker is suitable for retrofit and new installations, including replacements for legacy ED63B100 and ED43B100 devices. Its Class M interrupting performance provides higher fault capacity compared to standard Class S variants.

Electrical Ratings

• Current Rating: 100 Amps
• Voltage Ratings:
  • 240 VAC
  • 480Y/277 VAC
  • 480 VAC
  • 600Y/347 VAC
  • 500 VDC
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Interrupting Capacity:
  • 85 kA @ 240 VAC
  • 35 kA @ 480Y/277 VAC
  • 35 kA @ 480 VAC
  • 18 kA @ 600Y/347 VAC
  • 50 kA @ 500 VDC
• Breaking Capacity Class: M

Trip & Protection Features

• Trip Unit: TM230
• Protection Type: Thermal-Magnetic
• Functions: LI (Long-Time, Instantaneous)
• Overload Protection: Fixed thermal setting
• Short-Circuit Protection: Adjustable magnetic setting
• HACR Rated: Yes
• Reverse Feed Capability: Yes

Key Specifications

• Brand: Siemens
• Series: 3VA5
• Part Number: 3VA5110-5EC31-0AA0
• Mounting Style: Panel Mount
• Terminal Type: Lugs
• Accessories: Nut keeper plate (no additional accessories included)
• Replacement For:
  • ED63B100
  • ED43B100

Compatibility

• Siemens P1 Panelboards
• Siemens P2 Panelboards
• Siemens P3 Panelboards
• Siemens Switchboards
• Motor Control Centers (MCCs)

Standards & Approvals

• UL 489
• IEC 60947-2
• HACR Rated
• CE, CSA, EAC, UL, VDE Approved
• Temperature Rating: -25°C to 70°C

Construction Features

• HACR Rated
• Current Limiting Design
• Reverse Feed Capability
• Modular accessory system support
• Enhanced Class M interrupting performance

Applications

• Industrial power distribution systems
• Commercial feeder and branch circuits
• Motor loads and HVAC systems
• MCC and switchboard installations
• Retrofit replacements for legacy Siemens ED series breakers
