Siemens 3VA5120-6ED11-0AA0 20A 2P Molded Case Circuit Breaker – Feed-Thru – 480V AC

In stock
SKU: 3VA5120-6ED11-0AA0 GTIN/UPC: 804766299827
$260.40
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

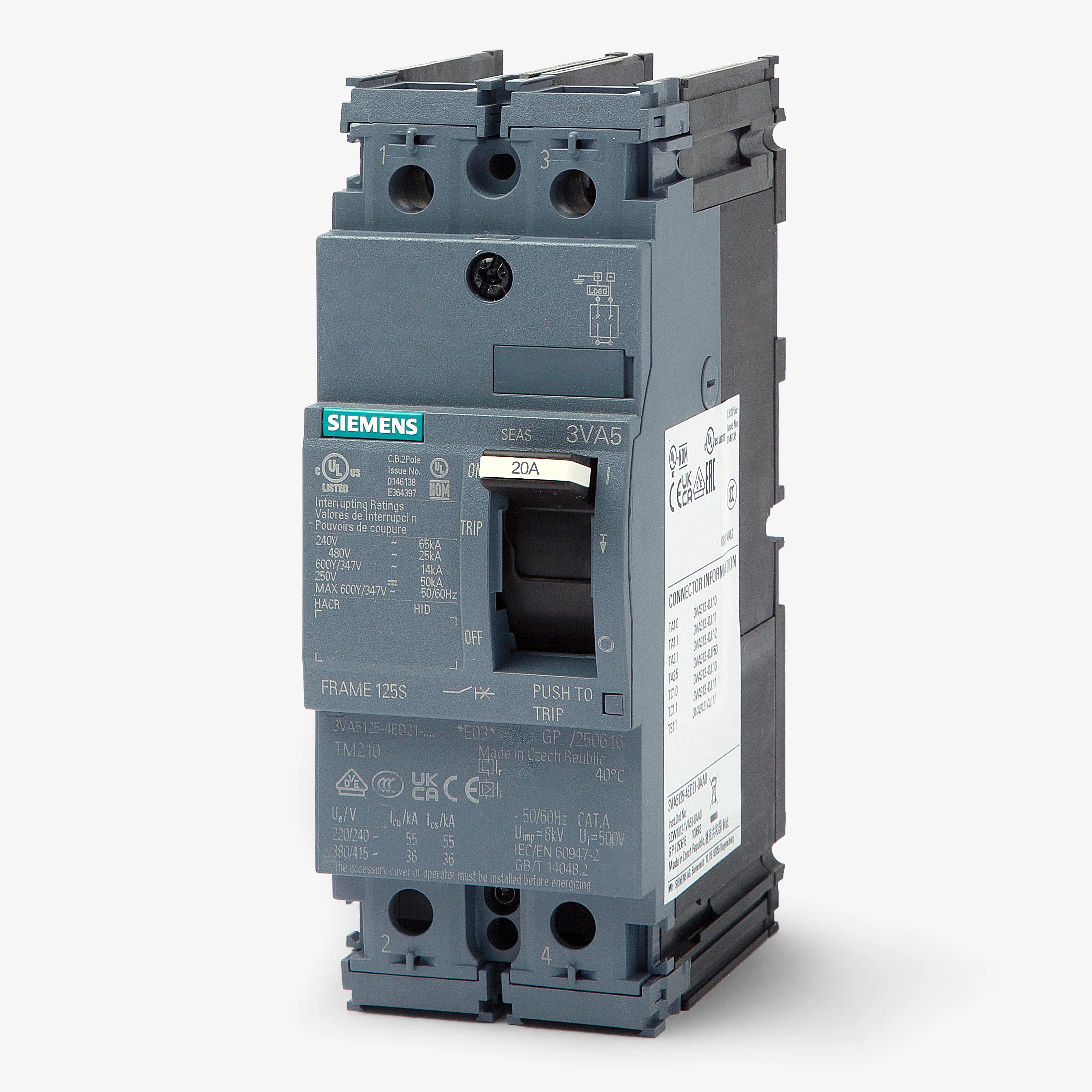

The Siemens 3VA5120-6ED11-0AA0 is a 20A, 2-pole molded case circuit breaker from the SENTRON 3VA5 series, designed for UL/IEC-compliant industrial and commercial power distribution systems. It is built for reliable protection of branch and feeder circuits, using a compact feed-through configuration for flexible installation in switchboards and enclosures.

This breaker belongs to the 3VA5 MCCB family (up to 2000A platform) and is engineered for dependable performance in modern electrical distribution systems requiring coordinated protection and standardized global compliance.

Electrical Ratings

  • Current Rating: 20 Amps
  • Voltage Rating: 480 VAC (system-rated within 3VA5 platform range)
  • Number of Poles: 2-Pole
  • Frame Family: 3VA (up to 2000A platform)
  • Application: UL / IEC low-voltage power distribution

Trip & Protection Features

  • Trip Technology: Thermal-Magnetic (3VA5 platform dependent)
  • Protection Type: Overload and short-circuit protection (standard MCCB function)
  • Application: Feed-through circuit protection
  • System Coordination: Designed for selective coordination within 3VA systems

Key Specifications

  • Brand: Siemens
  • Series: 3VA5
  • Part Number: 3VA5120-6ED11-0AA0
  • Category: Molded Case Circuit Breaker
  • Connection Type: Feed-through (as per catalog family configuration)
  • Manufacturing Class: Made-to-order (Product Class C)

Standards & Compliance

  • UL / IEC compliant 3VA platform
  • RoHS compliant (since 01/01/2016)
  • REACH: Lead >0.1% reporting applicable
  • WEEE take-back obligations: Yes
  • Export classification: EAR99
  • Country of origin: Czech Republic

Physical Characteristics

  • Net Weight: 0.385 kg
  • Packaging Dimensions: 140 × 34 × 108 mm

Applications

  • Industrial and commercial power distribution systems
  • Branch circuit protection in panelboards and switchboards
  • Feed-through MCCB installations
  • UL/IEC-compliant electrical systems requiring compact protection devices
