Siemens / ITE

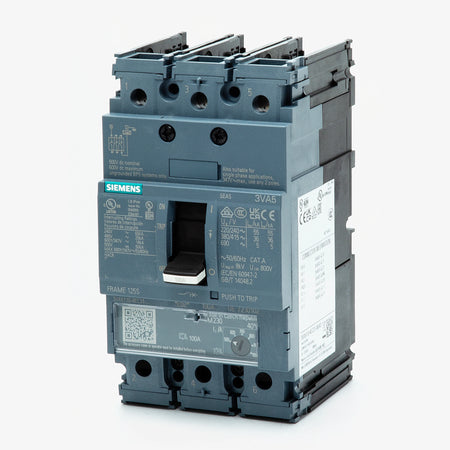

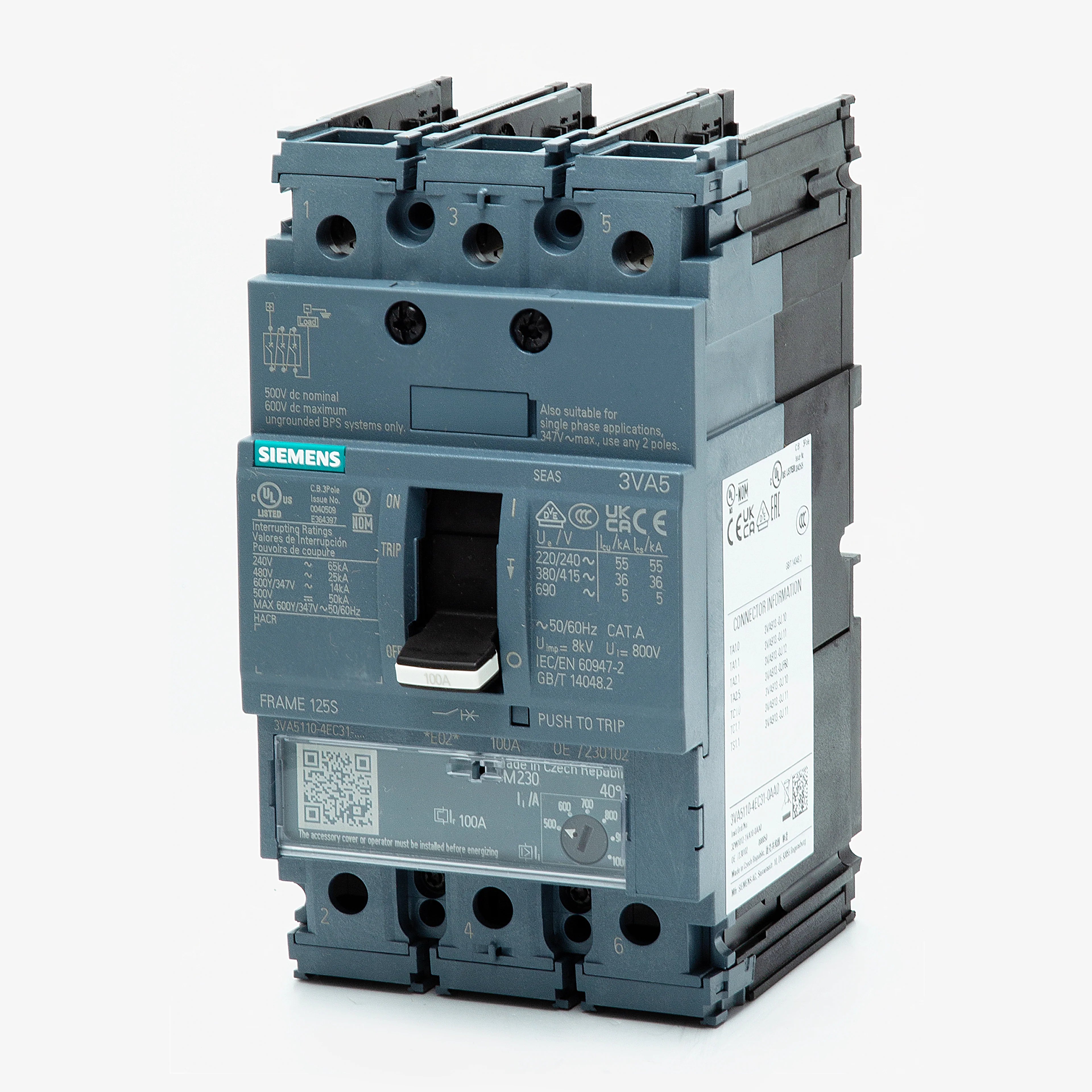

Siemens 3VA5125-6ED31-0AA0 25 Amp 3-Pole Molded Case Circuit Breaker – Panel Mount – 240/480/600Y-347VAC & 500VDC

In stock
SKU: 3VA5125-6ED31-0AA0 GTIN/UPC: 804766300363
$512.40
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA5125-6ED31-0AA0 is a high-performance molded case circuit breaker (MCCB) engineered for demanding commercial, industrial, and marine electrical applications. As part of the Siemens 3VA5 series, this 3-pole, 25A circuit breaker provides dependable overcurrent and short-circuit protection through its TM210 thermal-magnetic trip unit with fixed thermal and magnetic settings. Designed for installation in Siemens P1, P2, P3, and 3VA panelboards as well as switchboards, it can also serve as a replacement for legacy HHED63B025 breakers when used with the appropriate mounting kit. With a Class H interrupting capacity of 65kA at 480VAC, HACR rating, reverse-feed capability, and high interrupting performance, this breaker is ideal for critical power distribution systems.

Voltage and Rating

  • Current Rating: 25 Amps
  • Voltage Rating: 240VAC, 480VAC, 600Y/347VAC, 500VDC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating:
    • 150kA @ 240VAC
    • 65kA @ 480VAC
    • 25kA @ 600Y/347VAC
    • 100kA @ 500VDC

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: 3VA5
  • Number of Poles: 3-Pole
  • Mounting Style: Panel Mount
  • Terminal Type: Lugs
  • Trip Technology: Thermal Magnetic
  • Trip Function Code: LI
  • Trip Function: Long-Time and Instantaneous Protection
  • Trip Adjustability: Fixed Thermal, Fixed Magnetic
  • For Use With: Siemens P1, P2, P3 Panelboards, 3VA Panelboards, and Switchboards

Technical Specifications

  • Construction Features: HACR Rated, Reverse Feed, High Interrupting Capacity
  • Temperature Rating: -25°C to 70°C
  • Accessories Included: None (Without Connection)
  • Available Options: Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Rotary Handle, Lug Kits, Busbar System

Standards and Approvals

  • Standards: IEC 60947-2, UL 489, CSA C22.2 No. 5
  • Approvals: ABS, CE, CSA, DNV, EAC, KR, LRS, RCM, UL, VDE

Product Data

  • Manufacturer: Siemens
  • Series: 3VA5
  • Part Number: 3VA5125-6ED31-0AA0

Applications

  • Commercial Power Distribution Systems
  • Industrial Electrical Networks
  • Marine Electrical Installations
  • Switchboards
  • Panelboards
  • Feeder and Branch Circuit Protection
  • High Fault Current Applications
  • Motor Control and Equipment Protection Systems
  • Type Circuit Breakers
  • Vendor Siemens / ITE
  • Brand Siemens
