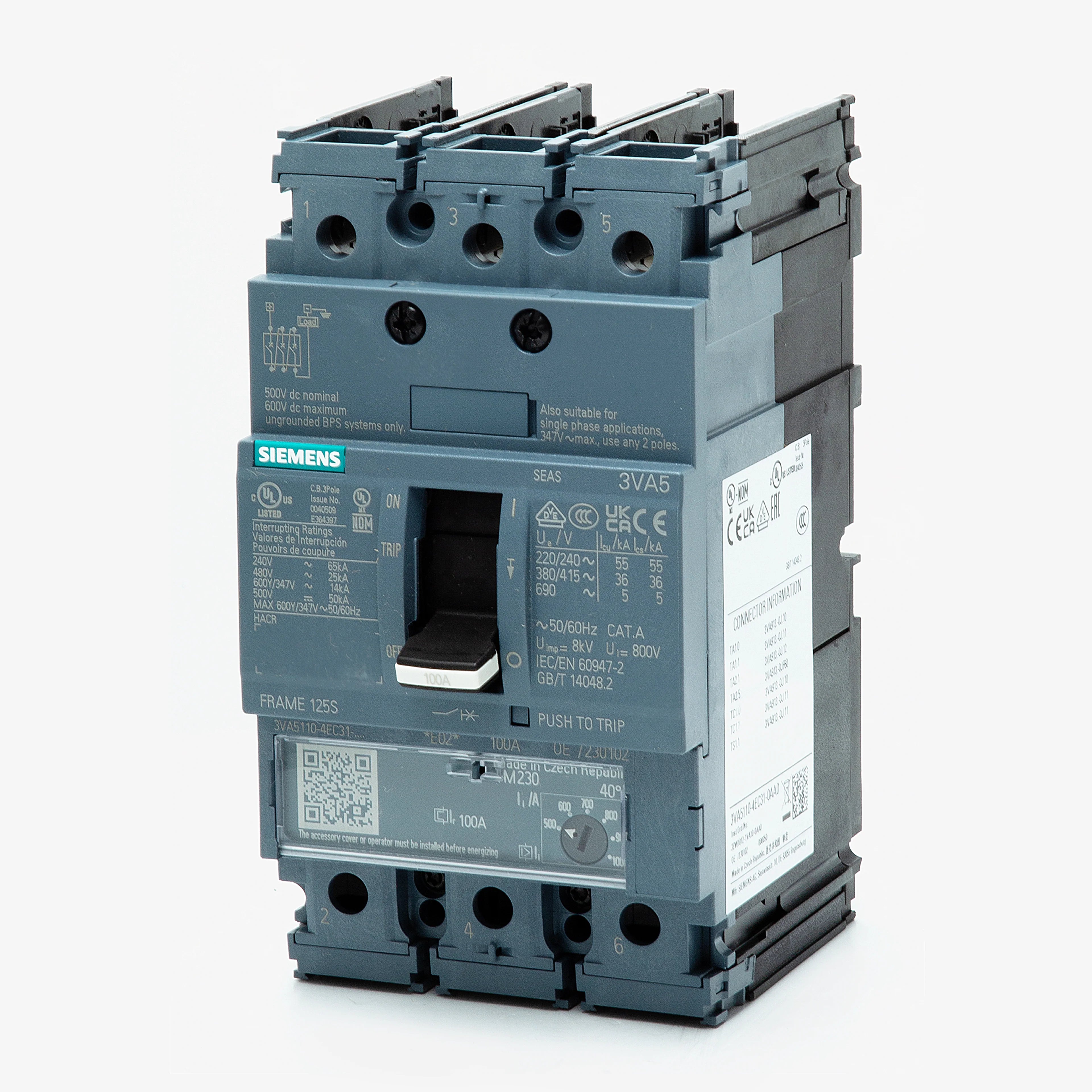

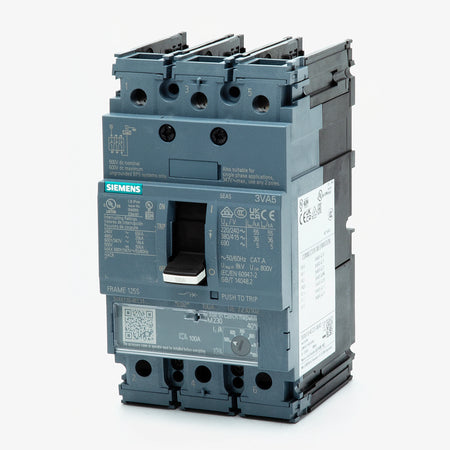

Siemens 3VA5190-6ED31-0AA0 90 Amp 3-Pole Molded Case Circuit Breaker – Feed-Thru Mount – 600V AC

In stock
SKU: 3VA5190-6ED31-0AA0 GTIN/UPC: 804766300905
$641.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Siemens 3VA5190-6ED31-0AA0 is a high-capacity molded case circuit breaker (MCCB) from the Siemens 3VA5 series, engineered for dependable protection in commercial and industrial power distribution systems. Built on the compact 125A frame, this 3-pole, 90A breaker utilizes a TM210 thermal-magnetic trip unit with permanently set overload protection and fixed instantaneous short-circuit protection. Designed with High (Class H) breaking capacity, it delivers superior fault interruption performance with a 65kA rating at 480VAC. The breaker is supplied without connection lugs and features a feed-thru design, making it suitable for a wide range of low-voltage distribution applications requiring reliable long-time and instantaneous protection.

Voltage and Rating

  • Current Rating: 90 Amps
  • Voltage Rating: 600 Volts AC
  • Phase: 3-Phase
  • Frequency: 50/60 Hz
  • AIC Rating:
    • 100kA @ 480VAC
    • 65kA @ 480VAC (Class H)

Key Specifications

  • Breaker Type: Molded Case Circuit Breaker (MCCB)
  • Series: 3VA5
  • Family: 3VA
  • Frame Size: 125A Frame
  • Number of Poles: 3-Pole
  • Connection Type: Feed-Thru
  • Functions: LI – Long-Time and Instantaneous Protection
  • Protection Type: Thermal Magnetic
  • Trip Unit: TM210, FTFM
  • Line Protection: Yes
  • Overload Protection (Ir): 90A Permanently Set
  • Short-Circuit Protection (Ii): 10 × In (Fixed)
  • Connection Configuration: Without Connection Lugs

Technical Specifications

  • Breaking Capacity Class: High (Class H)
  • Protection Features: Overload and Short-Circuit Protection
  • Construction: Compact Molded Case Design
  • Application: Commercial and Industrial Power Distribution

Standards and Approvals

  • Certification: CSA Approved

Product Data

  • Manufacturer: Siemens
  • Part Number: 3VA5190-6ED31-0AA0
  • Family: 3VA

Dimensions and Weight

  • Weight: 2 lbs

Applications

  • Commercial Power Distribution Systems
  • Industrial Electrical Installations
  • Panelboards and Switchboards
  • Feeder Circuit Protection
  • Branch Circuit Protection
  • Equipment and Machinery Protection
  • High Fault Current Applications
  • Low-Voltage Distribution Networks
  • Critical Power Distribution Systems
